Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: VehicleServiceHistoryVehicleLineItemType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: VehicleServiceHistory.xsd
Abstract
Documentation:
.

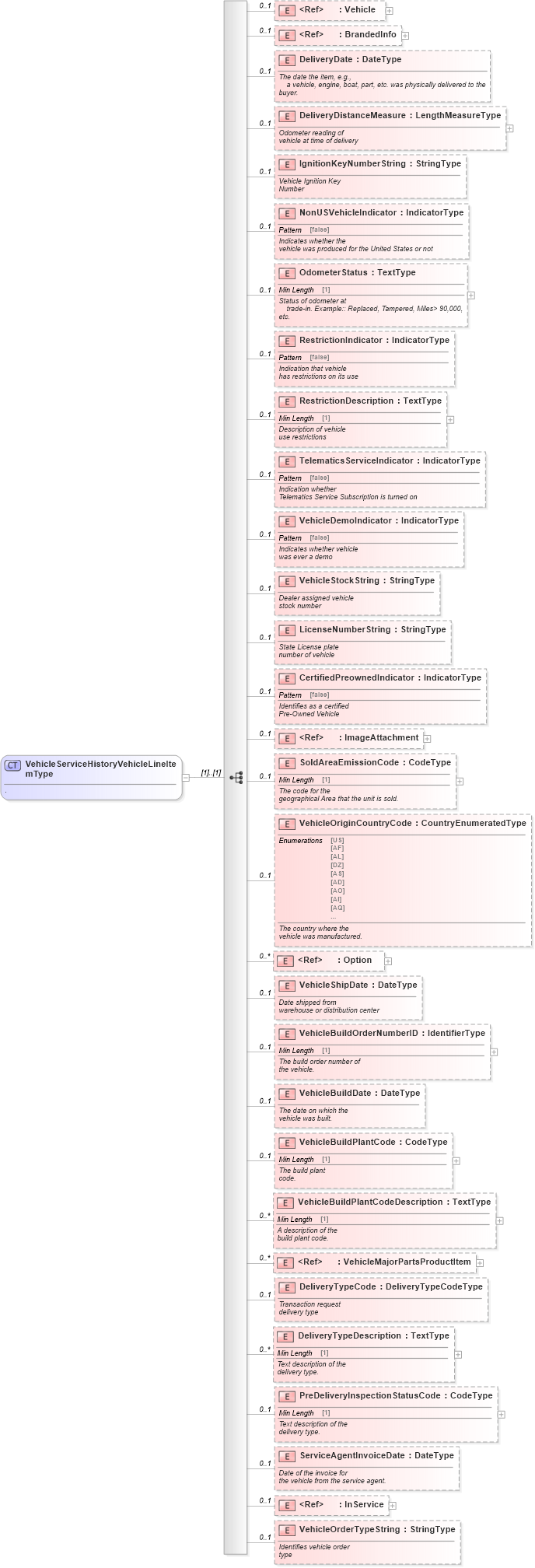

Collapse XSD Schema Diagram:
Drilldown into VehicleOrderTypeString in schema vehicleservicehistory_xsd Drilldown into InService in schema components_xsd Drilldown into ServiceAgentInvoiceDate in schema vehicleservicehistory_xsd Drilldown into PreDeliveryInspectionStatusCode in schema vehicleservicehistory_xsd Drilldown into DeliveryTypeDescription in schema vehicleservicehistory_xsd Drilldown into DeliveryTypeCode in schema vehicleservicehistory_xsd Drilldown into VehicleMajorPartsProductItem in schema components_xsd Drilldown into VehicleBuildPlantCodeDescription in schema vehicleservicehistory_xsd Drilldown into VehicleBuildPlantCode in schema vehicleservicehistory_xsd Drilldown into VehicleBuildDate in schema vehicleservicehistory_xsd Drilldown into VehicleBuildOrderNumberID in schema vehicleservicehistory_xsd Drilldown into VehicleShipDate in schema vehicleservicehistory_xsd Drilldown into Option in schema components_xsd Drilldown into VehicleOriginCountryCode in schema vehicleservicehistory_xsd Drilldown into SoldAreaEmissionCode in schema vehicleservicehistory_xsd Drilldown into ImageAttachment in schema components_xsd Drilldown into CertifiedPreownedIndicator in schema vehicleservicehistory_xsd Drilldown into LicenseNumberString in schema vehicleservicehistory_xsd Drilldown into VehicleStockString in schema vehicleservicehistory_xsd Drilldown into VehicleDemoIndicator in schema vehicleservicehistory_xsd Drilldown into TelematicsServiceIndicator in schema vehicleservicehistory_xsd Drilldown into RestrictionDescription in schema vehicleservicehistory_xsd Drilldown into RestrictionIndicator in schema vehicleservicehistory_xsd Drilldown into OdometerStatus in schema vehicleservicehistory_xsd Drilldown into NonUSVehicleIndicator in schema vehicleservicehistory_xsd Drilldown into IgnitionKeyNumberString in schema vehicleservicehistory_xsd Drilldown into DeliveryDistanceMeasure in schema vehicleservicehistory_xsd Drilldown into DeliveryDate in schema vehicleservicehistory_xsd Drilldown into BrandedInfo in schema components_xsd Drilldown into Vehicle in schema components_xsdXSD Diagram of VehicleServiceHistoryVehicleLineItemType in schema vehicleservicehistory_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="VehicleServiceHistoryVehicleLineItemType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="Vehicle" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BrandedInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element name="DeliveryDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The date the item, e.g.,
                a vehicle, engine, boat, part, etc. was physically delivered to the
            buyer.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="DeliveryDistanceMeasure" type="sqdt:LengthMeasureType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Odometer reading of
                vehicle at time of delivery</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="IgnitionKeyNumberString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Vehicle Ignition Key
                Number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="NonUSVehicleIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether the
                vehicle was produced for the United States or not</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="OdometerStatus" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Status of odometer at
                trade-in. Example:: Replaced, Tampered, Miles&gt; 90,000,
            etc.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RestrictionIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indication that vehicle
                has restrictions on its use</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RestrictionDescription" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Description of vehicle
                use restrictions</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="TelematicsServiceIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indication whether
                Telematics Service Subscription is turned on</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleDemoIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether vehicle
                was ever a demo</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleStockString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Dealer assigned vehicle
                stock number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="LicenseNumberString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">State License plate
                number of vehicle</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="CertifiedPreownedIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies as a certified
                Pre-Owned Vehicle</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ImageAttachment" minOccurs="0" maxOccurs="1" />
        <xsd:element name="SoldAreaEmissionCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The code for the
                geographical Area that the unit is sold.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleOriginCountryCode" type="scl:CountryEnumeratedType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The country where the
                vehicle was manufactured.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Option" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="VehicleShipDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Date shipped from
                warehouse or distribution center</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleBuildOrderNumberID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The build order number of
                the vehicle.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleBuildDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The date on which the
                vehicle was built.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleBuildPlantCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The build plant
            code.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleBuildPlantCodeDescription" type="udt:TextType" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">A description of the
                build plant code.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="VehicleMajorPartsProductItem" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="DeliveryTypeCode" type="sqdt:DeliveryTypeCodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Transaction request
                delivery type</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="DeliveryTypeDescription" type="udt:TextType" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5"> Text description of the
                delivery type. </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="PreDeliveryInspectionStatusCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5"> Text description of the
                delivery type. </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ServiceAgentInvoiceDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5"> Date of the invoice for
                the vehicle from the service agent. </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="InService" minOccurs="0" maxOccurs="1" />
        <xsd:element name="VehicleOrderTypeString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies vehicle order
                type</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Vehicle star:Vehicle 0 1
BrandedInfo star:BrandedInfo 0 1
DeliveryDate star:DeliveryDate 0 1
DeliveryDistanceMeasure star:DeliveryDistanceMeasure 0 1
IgnitionKeyNumberString star:IgnitionKeyNumberString 0 1
NonUSVehicleIndicator star:NonUSVehicleIndicator 0 1
OdometerStatus star:OdometerStatus 0 1
RestrictionIndicator star:RestrictionIndicator 0 1
RestrictionDescription star:RestrictionDescription 0 1
TelematicsServiceIndicator star:TelematicsServiceIndicator 0 1
VehicleDemoIndicator star:VehicleDemoIndicator 0 1
VehicleStockString star:VehicleStockString 0 1
LicenseNumberString star:LicenseNumberString 0 1
CertifiedPreownedIndicator star:CertifiedPreownedIndicator 0 1
ImageAttachment star:ImageAttachment 0 1
SoldAreaEmissionCode star:SoldAreaEmissionCode 0 1
VehicleOriginCountryCode star:VehicleOriginCountryCode 0 1
Option star:Option 0 unbounded
VehicleShipDate star:VehicleShipDate 0 1
VehicleBuildOrderNumberID star:VehicleBuildOrderNumberID 0 1
VehicleBuildDate star:VehicleBuildDate 0 1
VehicleBuildPlantCode star:VehicleBuildPlantCode 0 1
VehicleBuildPlantCodeDescription star:VehicleBuildPlantCodeDescription 0 unbounded
VehicleMajorPartsProductItem star:VehicleMajorPartsProductItem 0 unbounded
DeliveryTypeCode star:DeliveryTypeCode 0 1
DeliveryTypeDescription star:DeliveryTypeDescription 0 unbounded
PreDeliveryInspectionStatusCode star:PreDeliveryInspectionStatusCode 0 1
ServiceAgentInvoiceDate star:ServiceAgentInvoiceDate 0 1
InService star:InService 0 1
VehicleOrderTypeString star:VehicleOrderTypeString 0 1
Collapse Derivation Tree:
Collapse References:
star:VehicleServiceHistoryVehicleLineItem
