Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: WarrantyAdditional
Namespace: http://www.starstandard.org/STAR/5
Type: star:WarrantyAdditionalType
Containing Schema: Components.xsd
Abstract
Documentation:
Deprecated: Use Warranty Represents information about the OEM warranty on the vehicle

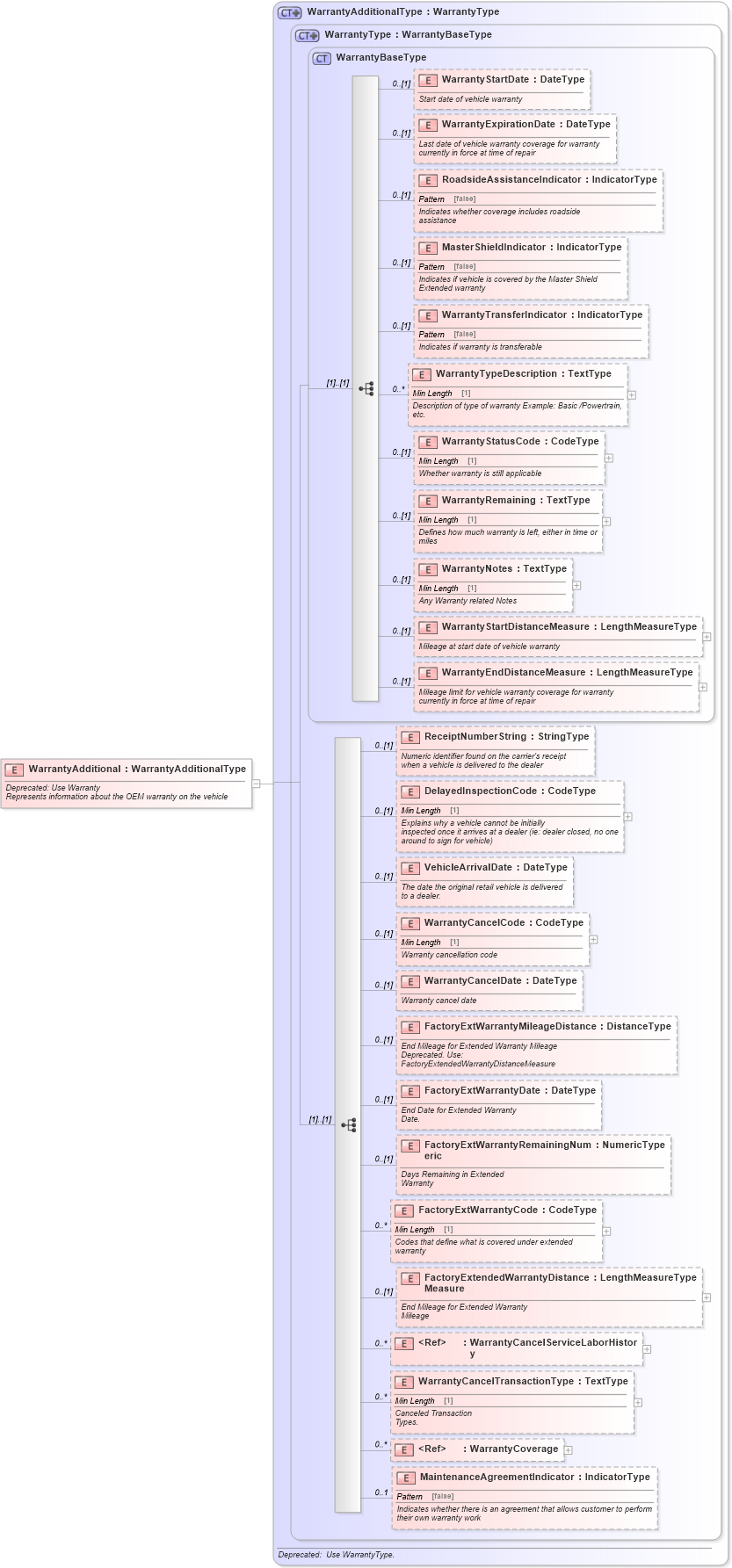

Collapse XSD Schema Diagram:
Drilldown into MaintenanceAgreementIndicator in schema components_xsd Drilldown into WarrantyCoverage in schema components_xsd Drilldown into WarrantyCancelTransactionType in schema components_xsd Drilldown into WarrantyCancelServiceLaborHistory in schema components_xsd Drilldown into FactoryExtendedWarrantyDistanceMeasure in schema components_xsd Drilldown into FactoryExtWarrantyCode in schema components_xsd Drilldown into FactoryExtWarrantyRemainingNumeric in schema components_xsd Drilldown into FactoryExtWarrantyDate in schema components_xsd Drilldown into FactoryExtWarrantyMileageDistance in schema components_xsd Drilldown into WarrantyCancelDate in schema components_xsd Drilldown into WarrantyCancelCode in schema components_xsd Drilldown into VehicleArrivalDate in schema components_xsd Drilldown into DelayedInspectionCode in schema components_xsd Drilldown into ReceiptNumberString in schema components_xsd Drilldown into WarrantyEndDistanceMeasure in schema components_xsd Drilldown into WarrantyStartDistanceMeasure in schema components_xsd Drilldown into WarrantyNotes in schema components_xsd Drilldown into WarrantyRemaining in schema components_xsd Drilldown into WarrantyStatusCode in schema components_xsd Drilldown into WarrantyTypeDescription in schema components_xsd Drilldown into WarrantyTransferIndicator in schema components_xsd Drilldown into MasterShieldIndicator in schema components_xsd Drilldown into RoadsideAssistanceIndicator in schema components_xsd Drilldown into WarrantyExpirationDate in schema components_xsd Drilldown into WarrantyStartDate in schema components_xsd Drilldown into WarrantyBaseType in schema components_xsd Drilldown into WarrantyType in schema components_xsd Drilldown into WarrantyAdditionalType in schema components_xsdXSD Diagram of WarrantyAdditional in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="WarrantyAdditional" type="WarrantyAdditionalType">
    <xsd:annotation>
        <xsd:documentation>Deprecated: Use Warranty</xsd:documentation>
        <xsd:documentation>Represents information about the OEM warranty on the vehicle</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
WarrantyStartDate star:WarrantyStartDate 0 (1)
WarrantyExpirationDate star:WarrantyExpirationDate 0 (1)
RoadsideAssistanceIndicator star:RoadsideAssistanceIndicator 0 (1)
MasterShieldIndicator star:MasterShieldIndicator 0 (1)
WarrantyTransferIndicator star:WarrantyTransferIndicator 0 (1)
WarrantyTypeDescription star:WarrantyTypeDescription 0 unbounded
WarrantyStatusCode star:WarrantyStatusCode 0 (1)
WarrantyRemaining star:WarrantyRemaining 0 (1)
WarrantyNotes star:WarrantyNotes 0 (1)
WarrantyStartDistanceMeasure star:WarrantyStartDistanceMeasure 0 (1)
WarrantyEndDistanceMeasure star:WarrantyEndDistanceMeasure 0 (1)
ReceiptNumberString star:ReceiptNumberString 0 (1)
DelayedInspectionCode star:DelayedInspectionCode 0 (1)
VehicleArrivalDate star:VehicleArrivalDate 0 (1)
WarrantyCancelCode star:WarrantyCancelCode 0 (1)
WarrantyCancelDate star:WarrantyCancelDate 0 (1)
FactoryExtWarrantyMileageDistance star:FactoryExtWarrantyMileageDistance 0 (1)
FactoryExtWarrantyDate star:FactoryExtWarrantyDate 0 (1)
FactoryExtWarrantyRemainingNumeric star:FactoryExtWarrantyRemainingNumeric 0 (1)
FactoryExtWarrantyCode star:FactoryExtWarrantyCode 0 unbounded
FactoryExtendedWarrantyDistanceMeasure star:FactoryExtendedWarrantyDistanceMeasure 0 (1)
WarrantyCancelServiceLaborHistory star:WarrantyCancelServiceLaborHistory 0 unbounded
WarrantyCancelTransactionType star:WarrantyCancelTransactionType 0 unbounded
WarrantyCoverage star:WarrantyCoverage 0 unbounded
MaintenanceAgreementIndicator star:MaintenanceAgreementIndicator 0 1
Collapse Derivation Tree:
