Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: WarrantyType
Namespace: http://www.starstandard.org/STAR/5
Type: star:WarrantyBaseType
Containing Schema: Components.xsd
Abstract

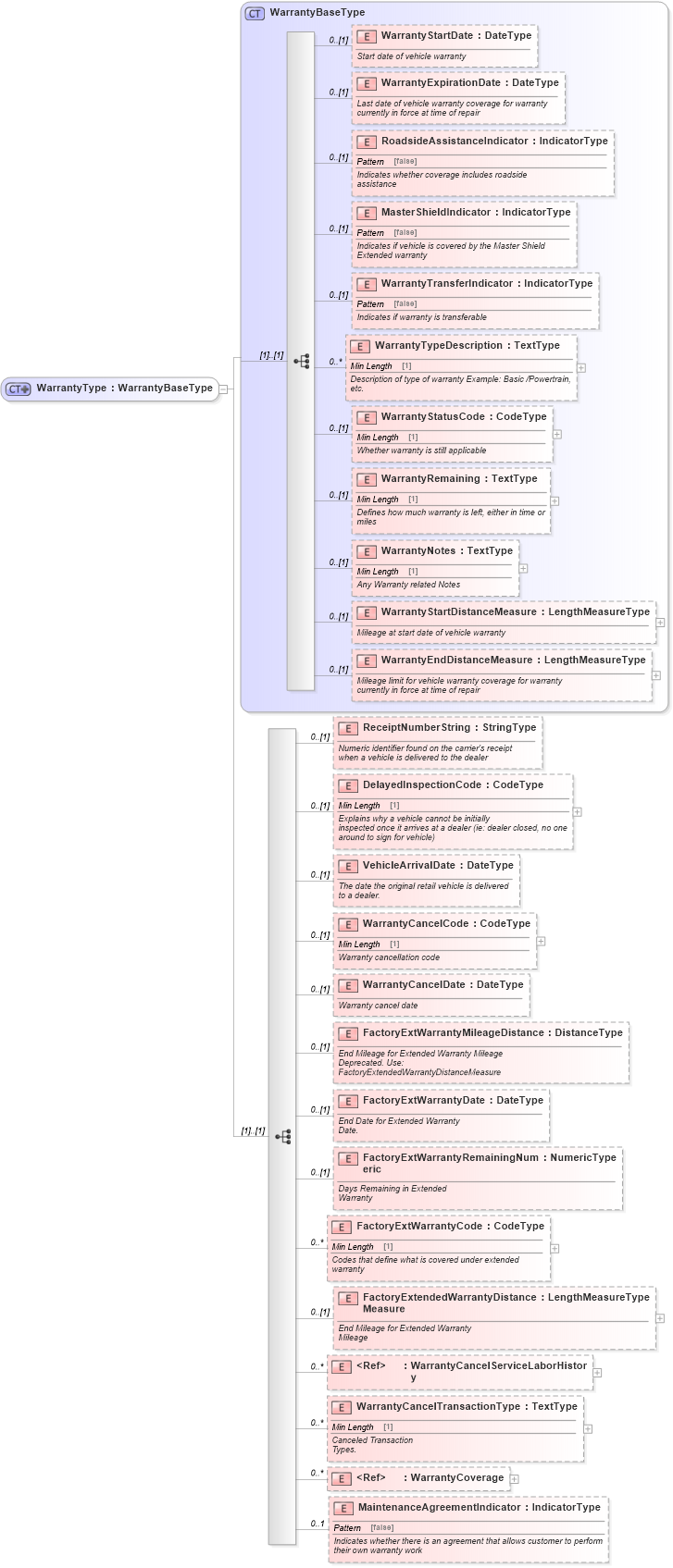

Collapse XSD Schema Diagram:
Drilldown into MaintenanceAgreementIndicator in schema components_xsd Drilldown into WarrantyCoverage in schema components_xsd Drilldown into WarrantyCancelTransactionType in schema components_xsd Drilldown into WarrantyCancelServiceLaborHistory in schema components_xsd Drilldown into FactoryExtendedWarrantyDistanceMeasure in schema components_xsd Drilldown into FactoryExtWarrantyCode in schema components_xsd Drilldown into FactoryExtWarrantyRemainingNumeric in schema components_xsd Drilldown into FactoryExtWarrantyDate in schema components_xsd Drilldown into FactoryExtWarrantyMileageDistance in schema components_xsd Drilldown into WarrantyCancelDate in schema components_xsd Drilldown into WarrantyCancelCode in schema components_xsd Drilldown into VehicleArrivalDate in schema components_xsd Drilldown into DelayedInspectionCode in schema components_xsd Drilldown into ReceiptNumberString in schema components_xsd Drilldown into WarrantyEndDistanceMeasure in schema components_xsd Drilldown into WarrantyStartDistanceMeasure in schema components_xsd Drilldown into WarrantyNotes in schema components_xsd Drilldown into WarrantyRemaining in schema components_xsd Drilldown into WarrantyStatusCode in schema components_xsd Drilldown into WarrantyTypeDescription in schema components_xsd Drilldown into WarrantyTransferIndicator in schema components_xsd Drilldown into MasterShieldIndicator in schema components_xsd Drilldown into RoadsideAssistanceIndicator in schema components_xsd Drilldown into WarrantyExpirationDate in schema components_xsd Drilldown into WarrantyStartDate in schema components_xsd Drilldown into WarrantyBaseType in schema components_xsdXSD Diagram of WarrantyType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="WarrantyType">
    <xsd:complexContent>
        <xsd:extension base="WarrantyBaseType">
            <xsd:sequence>
                <xsd:element minOccurs="0" name="ReceiptNumberString" type="qdt:StringType">
                    <xsd:annotation>
                        <xsd:documentation>
                                Numeric identifier found on the carrier's receipt
                                when a vehicle is delivered to the dealer
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="DelayedInspectionCode" type="udt:CodeType">
                    <xsd:annotation>
                        <xsd:documentation>
                                Explains why a vehicle cannot be initially
                                inspected once it arrives at a dealer (ie: dealer closed, no one
                                around to sign for vehicle)
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="VehicleArrivalDate" type="udt:DateType">
                    <xsd:annotation>
                        <xsd:documentation>
                                The date the original retail vehicle is delivered
                                to a dealer.
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="WarrantyCancelCode" type="udt:CodeType">
                    <xsd:annotation>
                        <xsd:documentation>
                                Warranty cancellation code
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="WarrantyCancelDate" type="udt:DateType">
                    <xsd:annotation>
                        <xsd:documentation>
                                Warranty cancel date
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="FactoryExtWarrantyMileageDistance" type="sqdt:DistanceType">
                    <xsd:annotation>
                        <xsd:documentation>
                                End Mileage for Extended Warranty Mileage
                                Deprecated. Use:
                                FactoryExtendedWarrantyDistanceMeasure
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="FactoryExtWarrantyDate" type="udt:DateType">
                    <xsd:annotation>
                        <xsd:documentation>
                                End Date for Extended Warranty
                                Date.
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="FactoryExtWarrantyRemainingNumeric" type="udt:NumericType">
                    <xsd:annotation>
                        <xsd:documentation>
                                Days Remaining in Extended
                                Warranty
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" name="FactoryExtWarrantyCode" type="udt:CodeType">
                    <xsd:annotation>
                        <xsd:documentation>
                                Codes that define what is covered under extended
                                warranty
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="FactoryExtendedWarrantyDistanceMeasure" type="sqdt:LengthMeasureType">
                    <xsd:annotation>
                        <xsd:documentation>
                                End Mileage for Extended Warranty
                                Mileage
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="WarrantyCancelServiceLaborHistory" />
                <xsd:element maxOccurs="unbounded" minOccurs="0" name="WarrantyCancelTransactionType" type="udt:TextType">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5"> Canceled Transaction
                Types. </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="WarrantyCoverage" />
                <xsd:element maxOccurs="1" minOccurs="0" name="MaintenanceAgreementIndicator" type="udt:IndicatorType">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">
                Indicates whether there is an agreement that allows customer to perform their own warranty work
            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
WarrantyStartDate star:WarrantyStartDate 0 (1)
WarrantyExpirationDate star:WarrantyExpirationDate 0 (1)
RoadsideAssistanceIndicator star:RoadsideAssistanceIndicator 0 (1)
MasterShieldIndicator star:MasterShieldIndicator 0 (1)
WarrantyTransferIndicator star:WarrantyTransferIndicator 0 (1)
WarrantyTypeDescription star:WarrantyTypeDescription 0 unbounded
WarrantyStatusCode star:WarrantyStatusCode 0 (1)
WarrantyRemaining star:WarrantyRemaining 0 (1)
WarrantyNotes star:WarrantyNotes 0 (1)
WarrantyStartDistanceMeasure star:WarrantyStartDistanceMeasure 0 (1)
WarrantyEndDistanceMeasure star:WarrantyEndDistanceMeasure 0 (1)
ReceiptNumberString star:ReceiptNumberString 0 (1)
DelayedInspectionCode star:DelayedInspectionCode 0 (1)
VehicleArrivalDate star:VehicleArrivalDate 0 (1)
WarrantyCancelCode star:WarrantyCancelCode 0 (1)
WarrantyCancelDate star:WarrantyCancelDate 0 (1)
FactoryExtWarrantyMileageDistance star:FactoryExtWarrantyMileageDistance 0 (1)
FactoryExtWarrantyDate star:FactoryExtWarrantyDate 0 (1)
FactoryExtWarrantyRemainingNumeric star:FactoryExtWarrantyRemainingNumeric 0 (1)
FactoryExtWarrantyCode star:FactoryExtWarrantyCode 0 unbounded
FactoryExtendedWarrantyDistanceMeasure star:FactoryExtendedWarrantyDistanceMeasure 0 (1)
WarrantyCancelServiceLaborHistory star:WarrantyCancelServiceLaborHistory 0 unbounded
WarrantyCancelTransactionType star:WarrantyCancelTransactionType 0 unbounded
WarrantyCoverage star:WarrantyCoverage 0 unbounded
MaintenanceAgreementIndicator star:MaintenanceAgreementIndicator 0 1
Collapse Derivation Tree:
Collapse References:
star:Warrantystar:WarrantyAdditionalType, star:WarrantyCancelAdditionType,
