Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: WarrantyClaimHeaderType
Namespace: http://www.starstandard.org/STAR/5
Type: star:HeaderBaseType
Containing Schema: WarrantyClaim.xsd
Abstract
Documentation:
.

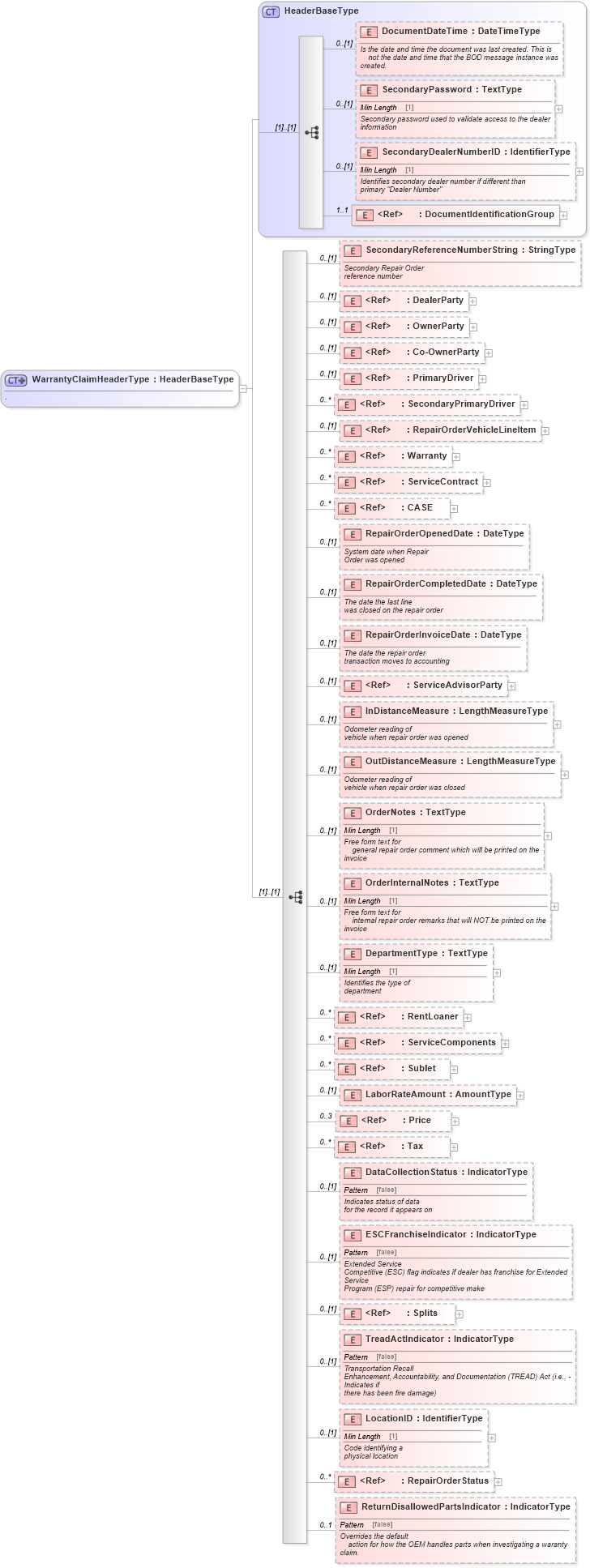

Collapse XSD Schema Diagram:
Drilldown into ReturnDisallowedPartsIndicator in schema warrantyclaim_xsd Drilldown into RepairOrderStatus in schema components_xsd Drilldown into LocationID in schema warrantyclaim_xsd Drilldown into TreadActIndicator in schema warrantyclaim_xsd Drilldown into Splits in schema components_xsd Drilldown into ESCFranchiseIndicator in schema warrantyclaim_xsd Drilldown into DataCollectionStatus in schema warrantyclaim_xsd Drilldown into Tax in schema components_xsd Drilldown into Price in schema components_xsd Drilldown into LaborRateAmount in schema warrantyclaim_xsd Drilldown into Sublet in schema components_xsd Drilldown into ServiceComponents in schema components_xsd Drilldown into RentLoaner in schema components_xsd Drilldown into DepartmentType in schema warrantyclaim_xsd Drilldown into OrderInternalNotes in schema warrantyclaim_xsd Drilldown into OrderNotes in schema warrantyclaim_xsd Drilldown into OutDistanceMeasure in schema warrantyclaim_xsd Drilldown into InDistanceMeasure in schema warrantyclaim_xsd Drilldown into ServiceAdvisorParty in schema components_xsd Drilldown into RepairOrderInvoiceDate in schema warrantyclaim_xsd Drilldown into RepairOrderCompletedDate in schema warrantyclaim_xsd Drilldown into RepairOrderOpenedDate in schema warrantyclaim_xsd Drilldown into CASE in schema components_xsd Drilldown into ServiceContract in schema components_xsd Drilldown into Warranty in schema components_xsd Drilldown into RepairOrderVehicleLineItem in schema warrantyclaim_xsd Drilldown into SecondaryPrimaryDriver in schema components_xsd Drilldown into PrimaryDriver in schema components_xsd Drilldown into Co-OwnerParty in schema components_xsd Drilldown into OwnerParty in schema components_xsd Drilldown into DealerParty in schema components_xsd Drilldown into SecondaryReferenceNumberString in schema warrantyclaim_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsdXSD Diagram of WarrantyClaimHeaderType in schema warrantyclaim_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="WarrantyClaimHeaderType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="HeaderBaseType">
            <xsd:sequence>
                <!--                    <xsd:element ref="DocumentID" /> -->
                <xsd:element name="SecondaryReferenceNumberString" type="qdt:StringType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Secondary Repair Order
                reference number</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="DealerParty" minOccurs="0" />
                <xsd:element ref="OwnerParty" minOccurs="0" />
                <xsd:element ref="Co-OwnerParty" minOccurs="0" />
                <xsd:element ref="PrimaryDriver" minOccurs="0" />
                <xsd:element ref="SecondaryPrimaryDriver" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="RepairOrderVehicleLineItem" minOccurs="0" />
                <xsd:element ref="Warranty" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="ServiceContract" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="CASE" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="RepairOrderOpenedDate" type="udt:DateType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">System date when Repair
                Order was opened</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="RepairOrderCompletedDate" type="udt:DateType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The date the last line
                was closed on the repair order</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="RepairOrderInvoiceDate" type="udt:DateType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The date the repair order
                transaction moves to accounting</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="ServiceAdvisorParty" minOccurs="0" />
                <xsd:element name="InDistanceMeasure" type="sqdt:LengthMeasureType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Odometer reading of
                vehicle when repair order was opened</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="OutDistanceMeasure" type="sqdt:LengthMeasureType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Odometer reading of
                vehicle when repair order was closed</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="OrderNotes" type="udt:TextType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Free form text for
                general repair order comment which will be printed on the
            invoice</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="OrderInternalNotes" type="udt:TextType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Free form text for
                internal repair order remarks that will NOT be printed on the
            invoice</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="DepartmentType" type="udt:TextType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies the type of
                department</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="RentLoaner" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="ServiceComponents" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="Sublet" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="LaborRateAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5" />
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="Price" minOccurs="0" maxOccurs="3" />
                <xsd:element ref="Tax" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="DataCollectionStatus" type="udt:IndicatorType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates status of data
                for the record it appears on</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ESCFranchiseIndicator" type="udt:IndicatorType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Extended Service
                Competitive (ESC) flag indicates if dealer has franchise for Extended Service
                Program (ESP) repair for competitive make</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="Splits" minOccurs="0" />
                <xsd:element name="TreadActIndicator" type="udt:IndicatorType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Transportation Recall
                Enhancement, Accountability, and Documentation (TREAD) Act (i.e., - Indicates if
                there has been fire damage)</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="LocationID" type="udt:IdentifierType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Code identifying a
                physical location</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="RepairOrderStatus" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="ReturnDisallowedPartsIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Overrides the default
                action for how the OEM handles parts when investigating a waranty
            claim.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
SecondaryReferenceNumberString star:SecondaryReferenceNumberString 0 (1)
DealerParty star:DealerParty 0 (1)
OwnerParty star:OwnerParty 0 (1)
Co-OwnerParty star:Co-OwnerParty 0 (1)
PrimaryDriver star:PrimaryDriver 0 (1)
SecondaryPrimaryDriver star:SecondaryPrimaryDriver 0 unbounded
RepairOrderVehicleLineItem star:RepairOrderVehicleLineItem 0 (1)
Warranty star:Warranty 0 unbounded
ServiceContract star:ServiceContract 0 unbounded
CASE star:CASE 0 unbounded
RepairOrderOpenedDate star:RepairOrderOpenedDate 0 (1)
RepairOrderCompletedDate star:RepairOrderCompletedDate 0 (1)
RepairOrderInvoiceDate star:RepairOrderInvoiceDate 0 (1)
ServiceAdvisorParty star:ServiceAdvisorParty 0 (1)
InDistanceMeasure star:InDistanceMeasure 0 (1)
OutDistanceMeasure star:OutDistanceMeasure 0 (1)
OrderNotes star:OrderNotes 0 (1)
OrderInternalNotes star:OrderInternalNotes 0 (1)
DepartmentType star:DepartmentType 0 (1)
RentLoaner star:RentLoaner 0 unbounded
ServiceComponents star:ServiceComponents 0 unbounded
Sublet star:Sublet 0 unbounded
LaborRateAmount star:LaborRateAmount 0 (1)
Price star:Price 0 3
Tax star:Tax 0 unbounded
DataCollectionStatus star:DataCollectionStatus 0 (1)
ESCFranchiseIndicator star:ESCFranchiseIndicator 0 (1)
Splits star:Splits 0 (1)
TreadActIndicator star:TreadActIndicator 0 (1)
LocationID star:LocationID 0 (1)
RepairOrderStatus star:RepairOrderStatus 0 unbounded
ReturnDisallowedPartsIndicator star:ReturnDisallowedPartsIndicator 0 1
Collapse Derivation Tree:
Collapse References:
star:WarrantyClaimHeader
