Documentation for SportsML
Definition Type: Element
Name: a
Namespace: http://iptc.org/std/NITF/2006-10-18/
Containing Schema: nitf-3-4.xsd
Abstract

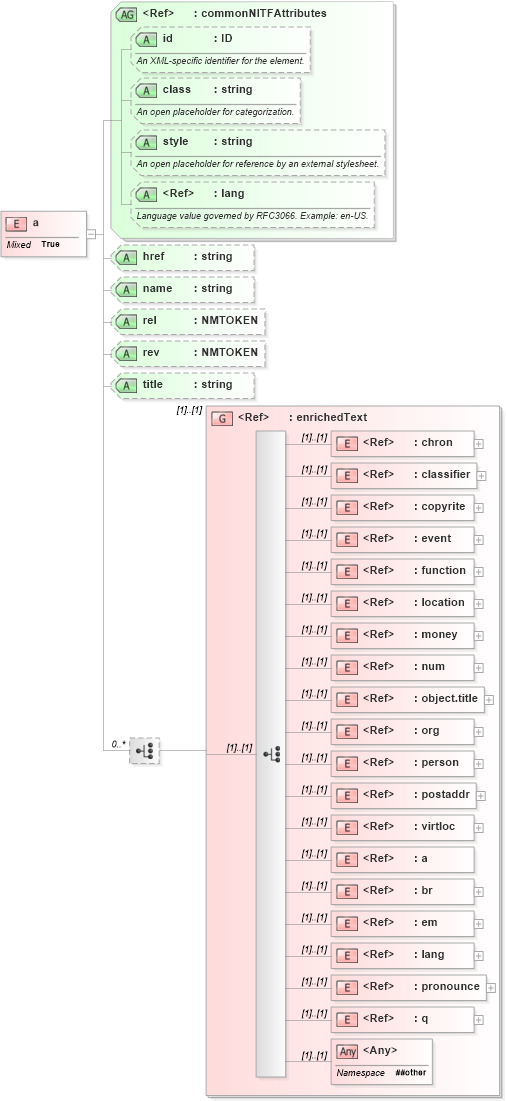

Collapse XSD Schema Diagram:
Drilldown into q in schema nitf-3-4_xsd Drilldown into pronounce in schema nitf-3-4_xsd Drilldown into lang in schema nitf-3-4_xsd Drilldown into em in schema nitf-3-4_xsd Drilldown into br in schema nitf-3-4_xsd Drilldown into a in schema nitf-3-4_xsd Drilldown into virtloc in schema nitf-3-4_xsd Drilldown into postaddr in schema nitf-3-4_xsd Drilldown into person in schema nitf-3-4_xsd Drilldown into org in schema nitf-3-4_xsd Drilldown into object.title in schema nitf-3-4_xsd Drilldown into num in schema nitf-3-4_xsd Drilldown into money in schema nitf-3-4_xsd Drilldown into location in schema nitf-3-4_xsd Drilldown into function in schema nitf-3-4_xsd Drilldown into event in schema nitf-3-4_xsd Drilldown into copyrite in schema nitf-3-4_xsd Drilldown into classifier in schema nitf-3-4_xsd Drilldown into chron in schema nitf-3-4_xsd Drilldown into enrichedText in schema nitf-3-4_xsd Drilldown into title in schema nitf-3-4_xsd Drilldown into rev in schema nitf-3-4_xsd Drilldown into rel in schema nitf-3-4_xsd Drilldown into name in schema nitf-3-4_xsd Drilldown into href in schema nitf-3-4_xsd Drilldown into lang in schema xml_xsd Drilldown into style in schema nitf-3-4_xsd Drilldown into class in schema nitf-3-4_xsd Drilldown into id in schema nitf-3-4_xsd Drilldown into commonNITFAttributes in schema nitf-3-4_xsdXSD Diagram of a in schema nitf-3-4_xsd (SportsML)
Collapse XSD Schema Code:
<element name="a">
    <complexType mixed="true">
        <choice minOccurs="0" maxOccurs="unbounded">
            <group ref="nitf:enrichedText" />
        </choice>
        <attributeGroup ref="nitf:commonNITFAttributes" />
        <attribute name="href" type="string" use="optional" />
        <attribute name="name" type="string" use="optional" />
        <attribute name="rel" type="NMTOKEN" use="optional" />
        <attribute name="rev" type="NMTOKEN" use="optional" />
        <attribute name="title" type="string" use="optional" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
chron nitf:chron (1) (1)
classifier nitf:classifier (1) (1)
copyrite nitf:copyrite (1) (1)
event nitf:event (1) (1)
function nitf:function (1) (1)
location nitf:location (1) (1)
money nitf:money (1) (1)
num nitf:num (1) (1)
object.title nitf:object.title (1) (1)
org nitf:org (1) (1)
person nitf:person (1) (1)
postaddr nitf:postaddr (1) (1)
virtloc nitf:virtloc (1) (1)
a nitf:a (1) (1)
br nitf:br (1) (1)
em nitf:em (1) (1)
lang nitf:lang (1) (1)
pronounce nitf:pronounce (1) (1)
q nitf:q (1) (1)
<xs:any> Allowed namespace: '##other' (1) (1)
<xs:group> nitf:enrichedText (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nitf:id Optional
class nitf:class Optional
style nitf:style Optional
lang nsA:lang Optional
href nitf:href Optional
name nitf:name Optional
rel nitf:rel Optional
rev nitf:rev Optional
title nitf:title Optional
