Documentation for SportsML
Definition Type: Element
Name: sports-event
Namespace: http://iptc.org/std/SportsML/2008-04-01/
Containing Schema: sportsml-core.xsd
Abstract
Documentation:
A sporting competition. | A contest that generally ends with a winner.

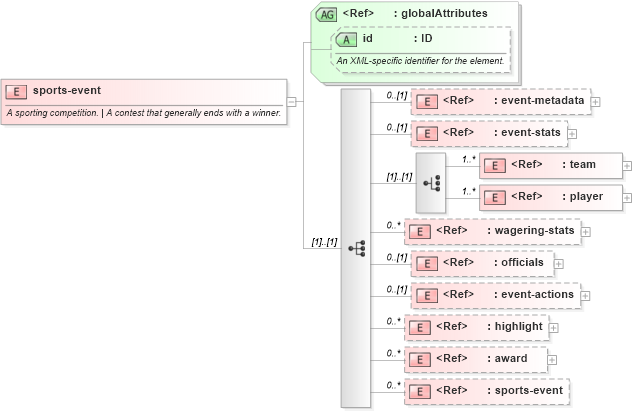

Collapse XSD Schema Diagram:
Drilldown into sports-event in schema sportsml-core_xsd Drilldown into award in schema sportsml-core_xsd Drilldown into highlight in schema sportsml-core_xsd Drilldown into event-actions in schema sportsml-core_xsd Drilldown into officials in schema sportsml-core_xsd Drilldown into wagering-stats in schema sportsml-core_xsd Drilldown into player in schema sportsml-core_xsd Drilldown into team in schema sportsml-core_xsd Drilldown into event-stats in schema sportsml-core_xsd Drilldown into event-metadata in schema sportsml-core_xsd Drilldown into id in schema sportsml-core_xsd Drilldown into globalAttributes in schema sportsml-core_xsdXSD Diagram of sports-event in schema sportsml-core_xsd (SportsML)
Collapse XSD Schema Code:
<element name="sports-event">
    <annotation>
        <documentation>A sporting competition. | A contest that generally ends with a winner.</documentation>
    </annotation>
    <complexType>
        <sequence>
            <element ref="sportsml:event-metadata" minOccurs="0" />
            <element ref="sportsml:event-stats" minOccurs="0" />
            <choice>
                <element ref="sportsml:team" minOccurs="1" maxOccurs="unbounded" />
                <element ref="sportsml:player" minOccurs="1" maxOccurs="unbounded" />
            </choice>
            <element ref="sportsml:wagering-stats" minOccurs="0" maxOccurs="unbounded" />
            <element ref="sportsml:officials" minOccurs="0" />
            <element ref="sportsml:event-actions" minOccurs="0" />
            <element ref="sportsml:highlight" minOccurs="0" maxOccurs="unbounded" />
            <element ref="sportsml:award" minOccurs="0" maxOccurs="unbounded" />
            <element ref="sportsml:sports-event" minOccurs="0" maxOccurs="unbounded" />
        </sequence>
        <attributeGroup ref="sportsml:globalAttributes" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
event-metadata sportsml:event-metadata 0 (1)
event-stats sportsml:event-stats 0 (1)
team sportsml:team 1 unbounded
player sportsml:player 1 unbounded
wagering-stats sportsml:wagering-stats 0 unbounded
officials sportsml:officials 0 (1)
event-actions sportsml:event-actions 0 (1)
highlight sportsml:highlight 0 unbounded
award sportsml:award 0 unbounded
sports-event sportsml:sports-event 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id sportsml:id Optional
