Documentation for SportsML
Definition Type: ComplexType
Name: BlockType
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
Abstract
Documentation:
The type for nformation about the content as natural language string with minimal markup and line breaks

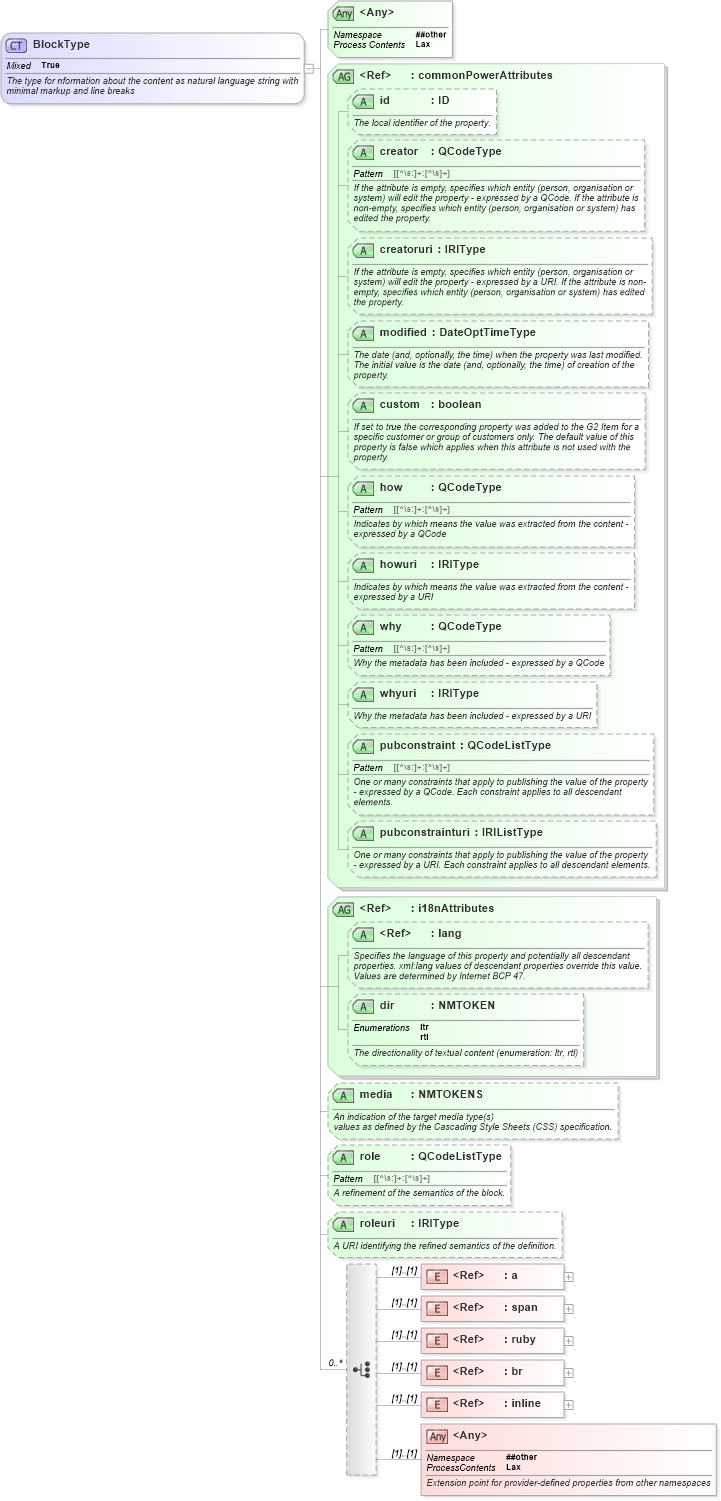

Collapse XSD Schema Diagram:
Drilldown into inline in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into br in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into ruby in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into span in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into a in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into roleuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into role in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into media in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into dir in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into in schema Drilldown into i18nAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of BlockType in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:complexType name="BlockType" mixed="true">
    <xs:annotation>
        <xs:documentation>The type for nformation about the content as natural language string with minimal markup and line breaks</xs:documentation>
    </xs:annotation>
    <xs:choice minOccurs="0" maxOccurs="unbounded">
        <xs:element ref="a" />
        <xs:element ref="span" />
        <xs:element ref="ruby" />
        <xs:element ref="br" />
        <xs:element ref="inline" />
        <xs:any namespace="##other" processContents="lax">
            <xs:annotation>
                <xs:documentation>Extension point for provider-defined properties from other namespaces</xs:documentation>
            </xs:annotation>
        </xs:any>
    </xs:choice>
    <xs:attributeGroup ref="commonPowerAttributes" />
    <xs:attributeGroup ref="i18nAttributes" />
    <xs:attribute name="media" type="xs:NMTOKENS" use="optional">
        <xs:annotation>
            <xs:documentation>An indication of the target media type(s)
values as defined by the Cascading Style Sheets (CSS) specification.</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attribute name="role" use="optional" type="QCodeListType">
        <xs:annotation>
            <xs:documentation>A refinement of the semantics of the block.</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attribute name="roleuri" type="IRIType">
        <xs:annotation>
            <xs:documentation>A URI identifying the refined semantics of the definition.</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:anyAttribute namespace="##other" processContents="lax" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
a nsA:a (1) (1)
span nsA:span (1) (1)
ruby nsA:ruby (1) (1)
br nsA:br (1) (1)
inline nsA:inline (1) (1)
<xs:any> Allowed namespace: '##other' (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
lang Unresolved link to lang Optional
dir nsA:dir Optional
media nsA:media Optional
role nsA:role Optional
roleuri nsA:roleuri (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsA:access, nsA:definition, nsA:description, nsA:detailsnsA:edNote, nsA:edNote, nsA:edNote, nsA:note, nsA:registration, nsA:RightsBlockType,
