Documentation for SportsML
Definition Type: Element
Name: derivedFrom
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: nsA:Flex1PropType
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
Abstract
Documentation:
Represents a concept which was used for deriving the value of a property in this G2 item

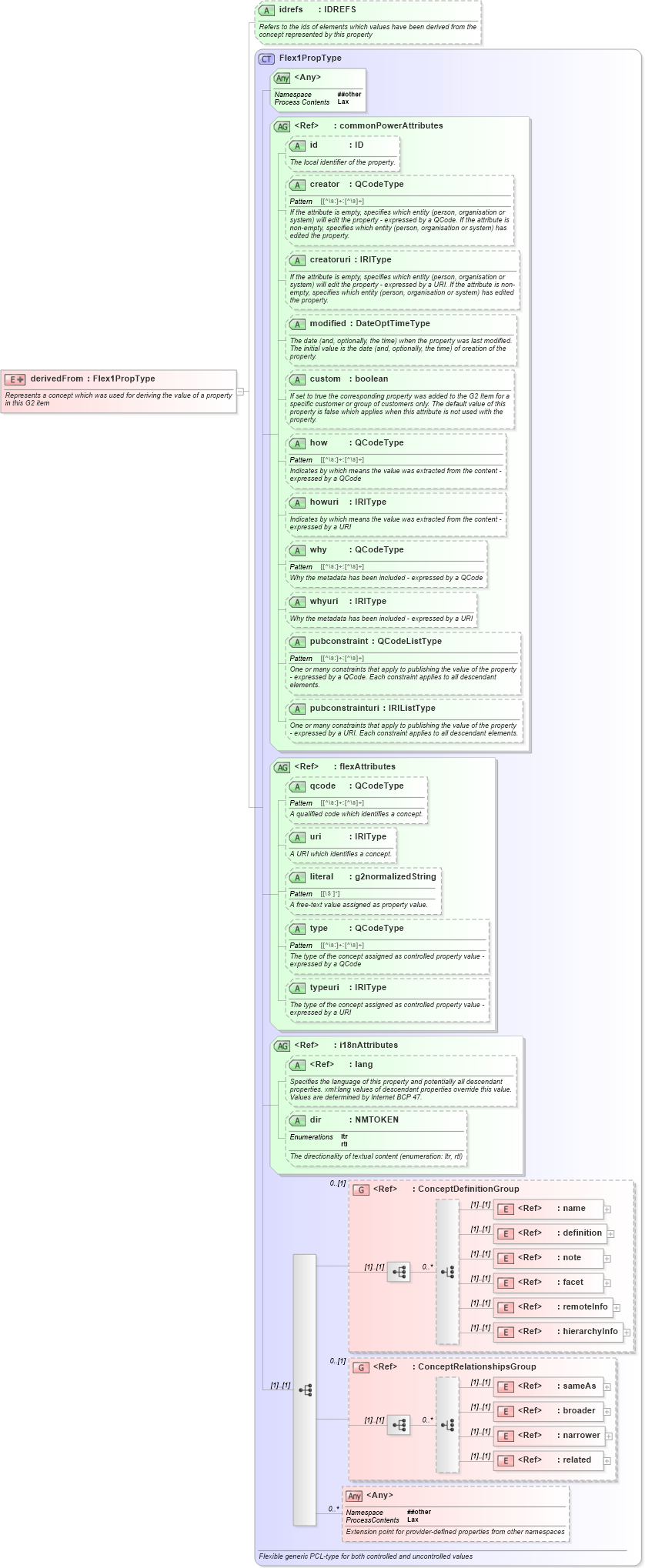

Collapse XSD Schema Diagram:
Drilldown into related in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into narrower in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into broader in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into sameAs in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into ConceptRelationshipsGroup in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into hierarchyInfo in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into remoteInfo in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into facet in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into note in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into definition in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into name in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into ConceptDefinitionGroup in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into dir in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into in schema Drilldown into i18nAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into typeuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into type in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into literal in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into uri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into qcode in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into flexAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into Flex1PropType in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into idrefs in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of derivedFrom in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:element name="derivedFrom">
    <xs:annotation>
        <xs:documentation>Represents a concept which was used for deriving the value of a property in this G2 item</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="Flex1PropType">
                <xs:attribute name="idrefs" type="xs:IDREFS">
                    <xs:annotation>
                        <xs:documentation>Refers to the ids of elements which values have been derived from the concept represented by this property</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsA:name (1) (1)
definition nsA:definition (1) (1)
note nsA:note (1) (1)
facet nsA:facet (1) (1)
remoteInfo nsA:remoteInfo (1) (1)
hierarchyInfo nsA:hierarchyInfo (1) (1)
sameAs nsA:sameAs (1) (1)
broader nsA:broader (1) (1)
narrower nsA:narrower (1) (1)
related nsA:related (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
<xs:group> nsA:ConceptDefinitionGroup 0 (1)
<xs:group> nsA:ConceptRelationshipsGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
qcode nsA:qcode Optional
uri nsA:uri Optional
literal nsA:literal Optional
type nsA:type Optional
typeuri nsA:typeuri Optional
lang Unresolved link to lang Optional
dir nsA:dir Optional
idrefs nsA:idrefs (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
