Documentation for W3C XForms
Definition Type: Element
Name: all
Namespace: http://www.w3.org/2001/XMLSchema
Type: xsd:all
Containing Schema: XMLSchema.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

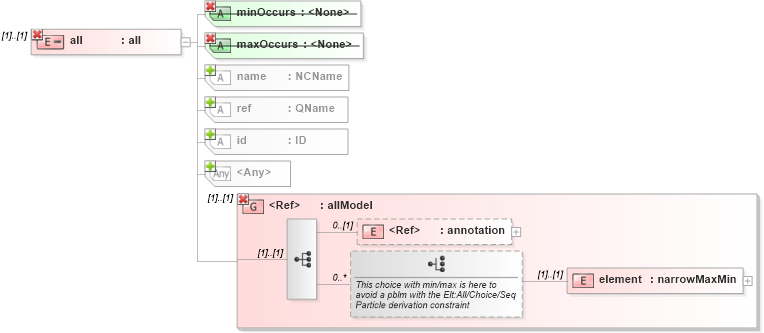

Collapse XSD Schema Diagram:
Drilldown into element in schema xmlschema_xsd Drilldown into annotation in schema xmlschema_xsd Drilldown into allModel in schema xmlschema_xsd Drilldown into id in schema xmlschema_xsd Drilldown into ref in schema xmlschema_xsd Drilldown into name in schema xmlschema_xsd Drilldown into maxOccurs in schema xmlschema_xsd Drilldown into minOccurs in schema xmlschema_xsdXSD Diagram of all in schema xmlschema_xsd (W3C XForms)
Collapse XSD Schema Code:
<xs:element name="all">
    <xs:complexType>
        <xs:complexContent>
            <xs:restriction base="xs:all">
                <xs:group ref="xs:allModel" />
                <xs:attribute name="minOccurs" use="prohibited" />
                <xs:attribute name="maxOccurs" use="prohibited" />
                <xs:anyAttribute namespace="##other" processContents="lax" />
            </xs:restriction>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
annotation xsd:annotation 0 (1)
element xsd:element (1) (1)
group xsd:group (1) (1)
all xsd:all (1) (1)
choice xsd:choice (1) (1)
sequence xsd:sequence (1) (1)
any xsd:any (1) (1)
annotation xsd:annotation 0 (1)
element xsd:element (1) (1)
group xsd:group (1) (1)
choice xsd:choice (1) (1)
sequence xsd:sequence (1) (1)
any xsd:any (1) (1)
annotation xsd:annotation 0 (1)
element xsd:element (1) (1)
<xs:group> xsd:nestedParticle 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id xsd:id (Optional)
name xsd:name Prohibited
ref xsd:ref Prohibited
minOccurs xsd:minOccurs Prohibited
maxOccurs xsd:maxOccurs Prohibited
<anyAttribute>
<anyAttribute> Allowed namespace: '##other'
<anyAttribute> Allowed namespace: '##other'
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
