Documentation for W3C XForms
Definition Type: Element
Name: repeat
Namespace: http://www.w3.org/2002/xforms
Containing Schema: XForms-Schema.xsd
Abstract

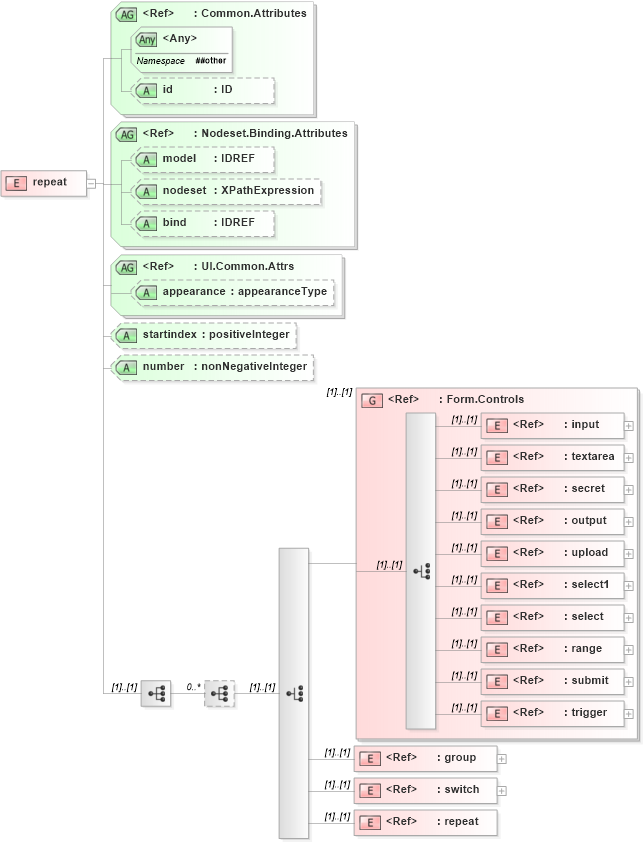

Collapse XSD Schema Diagram:
Drilldown into repeat in schema xforms-schema_xsd Drilldown into switch in schema xforms-schema_xsd Drilldown into group in schema xforms-schema_xsd Drilldown into trigger in schema xforms-schema_xsd Drilldown into submit in schema xforms-schema_xsd Drilldown into range in schema xforms-schema_xsd Drilldown into select in schema xforms-schema_xsd Drilldown into select1 in schema xforms-schema_xsd Drilldown into upload in schema xforms-schema_xsd Drilldown into output in schema xforms-schema_xsd Drilldown into secret in schema xforms-schema_xsd Drilldown into textarea in schema xforms-schema_xsd Drilldown into input in schema xforms-schema_xsd Drilldown into Form.Controls in schema xforms-schema_xsd Drilldown into number in schema xforms-schema_xsd Drilldown into startindex in schema xforms-schema_xsd Drilldown into appearance in schema xforms-schema_xsd Drilldown into UI.Common.Attrs in schema xforms-schema_xsd Drilldown into bind in schema xforms-schema_xsd Drilldown into nodeset in schema xforms-schema_xsd Drilldown into model in schema xforms-schema_xsd Drilldown into Nodeset.Binding.Attributes in schema xforms-schema_xsd Drilldown into id in schema xforms-schema_xsd Drilldown into Common.Attributes in schema xforms-schema_xsdXSD Diagram of repeat in schema xforms-schema_xsd (W3C XForms)
Collapse XSD Schema Code:
<xsd:element name="repeat">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:sequence minOccurs="0" maxOccurs="unbounded">
                <xsd:choice>
                    <xsd:group ref="xforms:Form.Controls" />
                    <xsd:element ref="xforms:group" />
                    <xsd:element ref="xforms:switch" />
                    <xsd:element ref="xforms:repeat" />
                    <!-- containing document language to add additional allowed content here -->
                </xsd:choice>
            </xsd:sequence>
        </xsd:sequence>
        <xsd:attributeGroup ref="xforms:Common.Attributes" />
        <xsd:attributeGroup ref="xforms:Nodeset.Binding.Attributes" />
        <xsd:attributeGroup ref="xforms:UI.Common.Attrs" />
        <xsd:attribute name="startindex" type="xsd:positiveInteger" />
        <xsd:attribute name="number" type="xsd:nonNegativeInteger" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
input xforms:input (1) (1)
textarea xforms:textarea (1) (1)
secret xforms:secret (1) (1)
output xforms:output (1) (1)
upload xforms:upload (1) (1)
select1 xforms:select1 (1) (1)
select xforms:select (1) (1)
range xforms:range (1) (1)
submit xforms:submit (1) (1)
trigger xforms:trigger (1) (1)
group xforms:group (1) (1)
switch xforms:switch (1) (1)
repeat xforms:repeat (1) (1)
<xs:group> xforms:Form.Controls (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id xforms:id Optional
model xforms:model Optional
nodeset xforms:nodeset Optional
bind xforms:bind Optional
appearance xforms:appearance Optional
startindex xforms:startindex (Optional)
number xforms:number (Optional)
<anyAttribute> Allowed namespace: '##other'
