Documentation for W3C XML Schema Definition Language
Definition Type: Element
Name: any
Namespace: http://www.w3.org/2001/XMLSchema
Type: xs:wildcard
Containing Schema: XMLSchema.xsd
Abstract

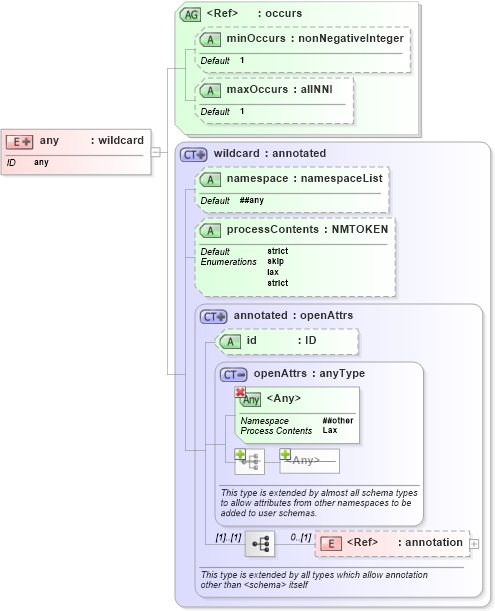

Collapse XSD Schema Diagram:
Drilldown into annotation in schema xmlschema_xsd Drilldown into openAttrs in schema xmlschema_xsd Drilldown into id in schema xmlschema_xsd Drilldown into annotated in schema xmlschema_xsd Drilldown into processContents in schema xmlschema_xsd Drilldown into namespace in schema xmlschema_xsd Drilldown into wildcard in schema xmlschema_xsd Drilldown into maxOccurs in schema xmlschema_xsd Drilldown into minOccurs in schema xmlschema_xsd Drilldown into occurs in schema xmlschema_xsdXSD Diagram of any in schema xmlschema_xsd (W3C XML Schema Definition Language)
Collapse XSD Schema Code:
<xs:element name="any" id="any">
    <xs:annotation>
        <xs:documentation source="http://www.w3.org/TR/xmlschema-1/#element-any" />
    </xs:annotation>
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="xs:wildcard">
                <xs:attributeGroup ref="xs:occurs" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
annotation xs:annotation 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id xs:id (Optional)
namespace xs:namespace ##any Optional
processContents xs:processContents strict Optional
minOccurs xs:minOccurs 1 Optional
maxOccurs xs:maxOccurs 1 Optional
<anyAttribute>
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
