Documentation for W3C XML Schema Definition Language
Definition Type: ComplexType
Name: annotated
Namespace: http://www.w3.org/2001/XMLSchema
Type: xs:openAttrs
Containing Schema: XMLSchema.xsd
Abstract
Documentation:
This type is extended by all types which allow annotation other than <schema> itself

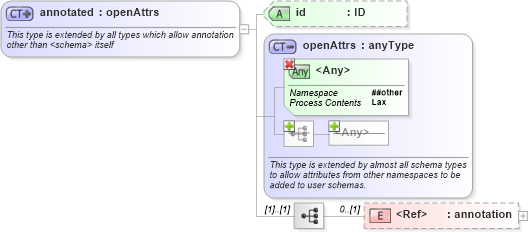

Collapse XSD Schema Diagram:
Drilldown into annotation in schema xmlschema_xsd Drilldown into openAttrs in schema xmlschema_xsd Drilldown into id in schema xmlschema_xsdXSD Diagram of annotated in schema xmlschema_xsd (W3C XML Schema Definition Language)
Collapse XSD Schema Code:
<xs:complexType name="annotated">
    <xs:annotation>
        <xs:documentation>
       This type is extended by all types which allow annotation
       other than &lt;schema&gt; itself
     </xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="xs:openAttrs">
            <xs:sequence>
                <xs:element ref="xs:annotation" minOccurs="0" />
            </xs:sequence>
            <xs:attribute name="id" type="xs:ID" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
annotation xs:annotation 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id xs:id (Optional)
<anyAttribute>
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
xs:attribute, xs:attributeGroup, xs:complexContent, xs:complexType, xs:element, xs:extensionType, xs:facet, xs:field, xs:group, xs:import, xs:include, xs:keybase, xs:list, xs:notation, xs:restriction, xs:restrictionType, xs:selector, xs:simpleContent, xs:simpleType, xs:unionxs:wildcard,
