Definition Type: Element
Name: key
Namespace: http://www.w3.org/2001/XMLSchema
Type: xs:keybase
Containing Schema: XMLSchema.xsd
Abstract

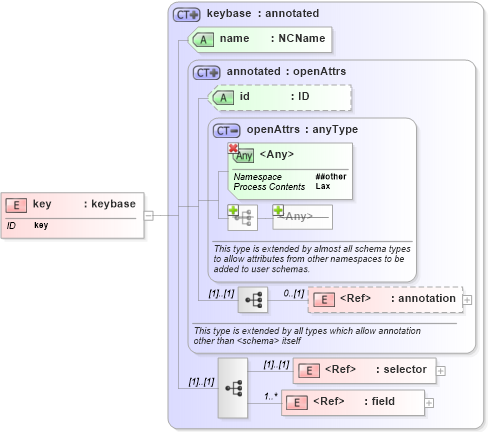

Collapse XSD Schema Diagram:
Drilldown into field in schema xmlschema_xsd Drilldown into selector in schema xmlschema_xsd Drilldown into annotation in schema xmlschema_xsd Drilldown into openAttrs in schema xmlschema_xsd Drilldown into id in schema xmlschema_xsd Drilldown into annotated in schema xmlschema_xsd Drilldown into name in schema xmlschema_xsd Drilldown into keybase in schema xmlschema_xsdXSD Diagram of key in schema xmlschema_xsd (W3C XML Schema Definition Language)
Collapse XSD Schema Code:
<xs:element name="key" type="xs:keybase" id="key">
    <xs:annotation>
        <xs:documentation source="http://www.w3.org/TR/xmlschema-1/#element-key" />
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
annotation xs:annotation 0 (1)
selector xs:selector (1) (1)
field xs:field 1 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id xs:id (Optional)
name xs:name Required
<anyAttribute>
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
