Documentation for W3C XML Schema Definition Language
Definition Type: ComplexType
Name: numFacet
Namespace: http://www.w3.org/2001/XMLSchema
Type: xs:facet
Containing Schema: XMLSchema.xsd
Abstract

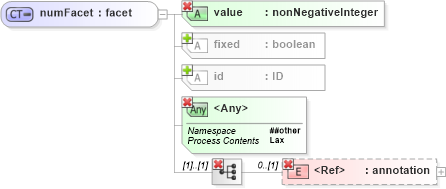

Collapse XSD Schema Diagram:
Drilldown into annotation in schema xmlschema_xsd Drilldown into id in schema xmlschema_xsd Drilldown into fixed in schema xmlschema_xsd Drilldown into value in schema xmlschema_xsdXSD Diagram of numFacet in schema xmlschema_xsd (W3C XML Schema Definition Language)
Collapse XSD Schema Code:
<xs:complexType name="numFacet">
    <xs:complexContent>
        <xs:restriction base="xs:facet">
            <xs:sequence>
                <xs:element ref="xs:annotation" minOccurs="0" />
            </xs:sequence>
            <xs:attribute name="value" type="xs:nonNegativeInteger" use="required" />
            <xs:anyAttribute namespace="##other" processContents="lax" />
        </xs:restriction>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
annotation xs:annotation 0 (1)
annotation xs:annotation 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id xs:id (Optional)
fixed xs:fixed false Optional
value xs:value Required
<anyAttribute>
<anyAttribute> Allowed namespace: '##other'
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
xs:fractionDigits, xs:length, xs:maxLength, xs:minLength, xs:totalDigits
