Definition Type: ComplexType
Name: facet
Namespace: http://www.w3.org/2001/XMLSchema
Type: xs:annotated
Containing Schema: XMLSchema.xsd
Abstract

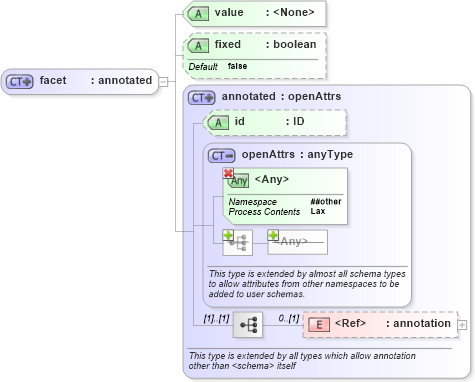

Collapse XSD Schema Diagram:
Drilldown into annotation in schema xmlschema_xsd Drilldown into openAttrs in schema xmlschema_xsd Drilldown into id in schema xmlschema_xsd Drilldown into annotated in schema xmlschema_xsd Drilldown into fixed in schema xmlschema_xsd Drilldown into value in schema xmlschema_xsdXSD Diagram of facet in schema xmlschema_xsd (W3C XML Schema Definition Language)
Collapse XSD Schema Code:
<xs:complexType name="facet">
    <xs:complexContent>
        <xs:extension base="xs:annotated">
            <xs:attribute name="value" use="required" />
            <xs:attribute name="fixed" type="xs:boolean" use="optional" default="false" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
annotation xs:annotation 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id xs:id (Optional)
value xs:value Required
fixed xs:fixed false Optional
<anyAttribute>
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
xs:maxExclusive, xs:maxInclusive, xs:minExclusive, xs:minInclusive, xs:noFixedFacet, xs:numFacet, xs:whiteSpace
