Documentation for W3C XML Schema Definition Language
Definition Type: Element
Name: group
Namespace: http://www.w3.org/2001/XMLSchema
Type: xs:groupRef
Containing Schema: XMLSchema.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

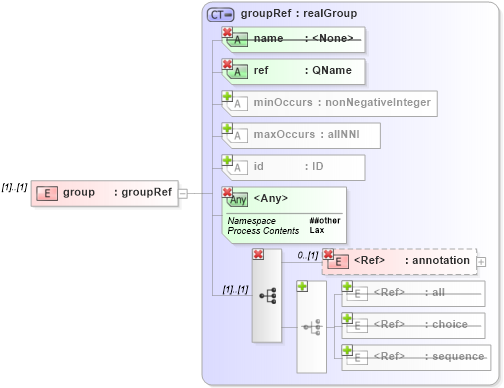

Collapse XSD Schema Diagram:
Drilldown into sequence in schema xmlschema_xsd Drilldown into choice in schema xmlschema_xsd Drilldown into all in schema xmlschema_xsd Drilldown into annotation in schema xmlschema_xsd Drilldown into id in schema xmlschema_xsd Drilldown into maxOccurs in schema xmlschema_xsd Drilldown into minOccurs in schema xmlschema_xsd Drilldown into ref in schema xmlschema_xsd Drilldown into name in schema xmlschema_xsd Drilldown into groupRef in schema xmlschema_xsdXSD Diagram of group in schema xmlschema_xsd (W3C XML Schema Definition Language)
Collapse XSD Schema Code:
<xs:element name="group" type="xs:groupRef" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
annotation xs:annotation 0 (1)
element xs:element (1) (1)
group xs:group (1) (1)
all xs:all (1) (1)
choice xs:choice (1) (1)
sequence xs:sequence (1) (1)
any xs:any (1) (1)
annotation xs:annotation 0 (1)
all xs:all (1) (1)
choice xs:choice (1) (1)
sequence xs:sequence (1) (1)
annotation xs:annotation 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id xs:id (Optional)
minOccurs xs:minOccurs 1 Optional
maxOccurs xs:maxOccurs 1 Optional
ref xs:ref Required
name xs:name Prohibited
<anyAttribute>
<anyAttribute> Allowed namespace: '##other'
<anyAttribute> Allowed namespace: '##other'
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
