Documentation for W3C XML Schema Definition Language
Definition Type: ComplexType
Name: narrowMaxMin
Namespace: http://www.w3.org/2001/XMLSchema
Type: xs:localElement
Containing Schema: XMLSchema.xsd
Abstract
Documentation:
restricted max/min

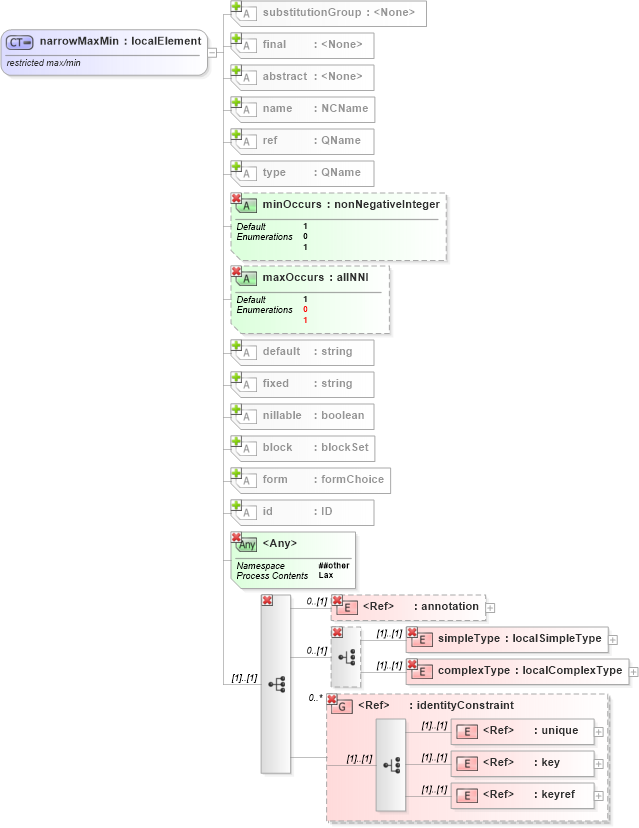

Collapse XSD Schema Diagram:
Drilldown into keyref in schema xmlschema_xsd Drilldown into key in schema xmlschema_xsd Drilldown into unique in schema xmlschema_xsd Drilldown into identityConstraint in schema xmlschema_xsd Drilldown into complexType in schema xmlschema_xsd Drilldown into simpleType in schema xmlschema_xsd Drilldown into annotation in schema xmlschema_xsd Drilldown into id in schema xmlschema_xsd Drilldown into form in schema xmlschema_xsd Drilldown into block in schema xmlschema_xsd Drilldown into nillable in schema xmlschema_xsd Drilldown into fixed in schema xmlschema_xsd Drilldown into default in schema xmlschema_xsd Drilldown into maxOccurs in schema xmlschema_xsd Drilldown into minOccurs in schema xmlschema_xsd Drilldown into type in schema xmlschema_xsd Drilldown into ref in schema xmlschema_xsd Drilldown into name in schema xmlschema_xsd Drilldown into abstract in schema xmlschema_xsd Drilldown into final in schema xmlschema_xsd Drilldown into substitutionGroup in schema xmlschema_xsdXSD Diagram of narrowMaxMin in schema xmlschema_xsd (W3C XML Schema Definition Language)
Collapse XSD Schema Code:
<xs:complexType name="narrowMaxMin">
    <xs:annotation>
        <xs:documentation>restricted max/min</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:restriction base="xs:localElement">
            <xs:sequence>
                <xs:element ref="xs:annotation" minOccurs="0" />
                <xs:choice minOccurs="0">
                    <xs:element name="simpleType" type="xs:localSimpleType" />
                    <xs:element name="complexType" type="xs:localComplexType" />
                </xs:choice>
                <xs:group ref="xs:identityConstraint" minOccurs="0" maxOccurs="unbounded" />
            </xs:sequence>
            <xs:attribute name="minOccurs" use="optional" default="1">
                <xs:simpleType>
                    <xs:restriction base="xs:nonNegativeInteger">
                        <xs:enumeration value="0" />
                        <xs:enumeration value="1" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="maxOccurs" use="optional" default="1">
                <xs:simpleType>
                    <xs:restriction base="xs:allNNI">
                        <xs:enumeration value="0" />
                        <xs:enumeration value="1" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:attribute>
            <xs:anyAttribute namespace="##other" processContents="lax" />
        </xs:restriction>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
annotation xs:annotation 0 (1)
simpleType xs:simpleType (1) (1)
complexType xs:complexType (1) (1)
unique xs:unique (1) (1)
key xs:key (1) (1)
keyref xs:keyref (1) (1)
annotation xs:annotation 0 (1)
simpleType xs:simpleType (1) (1)
complexType xs:complexType (1) (1)
annotation xs:annotation 0 (1)
simpleType xs:simpleType (1) (1)
complexType xs:complexType (1) (1)
<xs:group> xs:identityConstraint 0 unbounded
<xs:group> xs:identityConstraint 0 unbounded
<xs:group> xs:identityConstraint 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id xs:id (Optional)
name xs:name (Optional)
ref xs:ref (Optional)
type xs:type (Optional)
default xs:default (Optional)
fixed xs:fixed (Optional)
nillable xs:nillable false Optional
block xs:block (Optional)
form xs:form (Optional)
substitutionGroup xs:substitutionGroup Prohibited
final xs:final Prohibited
abstract xs:abstract Prohibited
minOccurs xs:minOccurs 1 Optional
maxOccurs xs:maxOccurs 1 Optional
<anyAttribute>
<anyAttribute> Allowed namespace: '##other'
<anyAttribute> Allowed namespace: '##other'
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
xs:element
