Definition Type:	ComplexType
Name:	namedAttributeGroup
Namespace:	http://www.w3.org/2001/XMLSchema
Type:	xs:attributeGroup
Containing Schema:	XMLSchema.xsd
Abstract

XSD Schema Diagram:

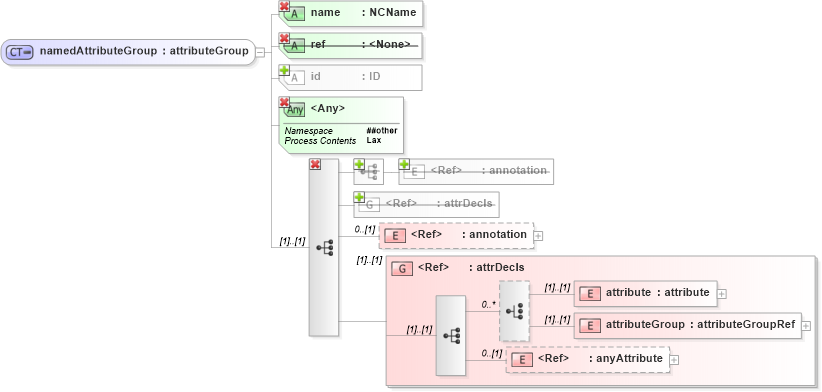

XSD Diagram of namedAttributeGroup in schema xmlschema_xsd (W3C XML Schema Definition Language)

XSD Schema Code:

<xs:complexType name="namedAttributeGroup">
    <xs:complexContent>
        <xs:restriction base="xs:attributeGroup">
            <xs:sequence>
                <xs:element ref="xs:annotation" minOccurs="0" />
                <xs:group ref="xs:attrDecls" />
            </xs:sequence>
            <xs:attribute name="name" use="required" type="xs:NCName" />
            <xs:attribute name="ref" use="prohibited" />
            <xs:anyAttribute namespace="##other" processContents="lax" />
        </xs:restriction>
    </xs:complexContent>
</xs:complexType>

Child Elements:

Name	Type	Min Occurs	Max Occurs
annotation	xs:annotation	0	(1)
attribute	xs:attribute	(1)	(1)
attributeGroup	xs:attributeGroup	(1)	(1)
anyAttribute	xs:anyAttribute	0	(1)
annotation	xs:annotation	0	(1)
<xs:group>	xs:attrDecls	(1)	(1)

Child Attributes:

Name	Type	Default Value	Use
id	xs:id		(Optional)
name	xs:name		Required
ref	xs:ref		Prohibited
<anyAttribute>
<anyAttribute>	Allowed namespace: '##other'
<anyAttribute>	Allowed namespace: '##other'

Derivation Tree:
	xs:openAttrs xs:annotated xs:attributeGroup *namedAttributeGroup* xs:attributeGroup

References:
	xs:attributeGroup
