Documentation for W3C XML Schema Definition Language
Definition Type: Element
Name: attribute
Namespace: http://www.w3.org/2001/XMLSchema
Type: xs:attribute
Containing Schema: XMLSchema.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

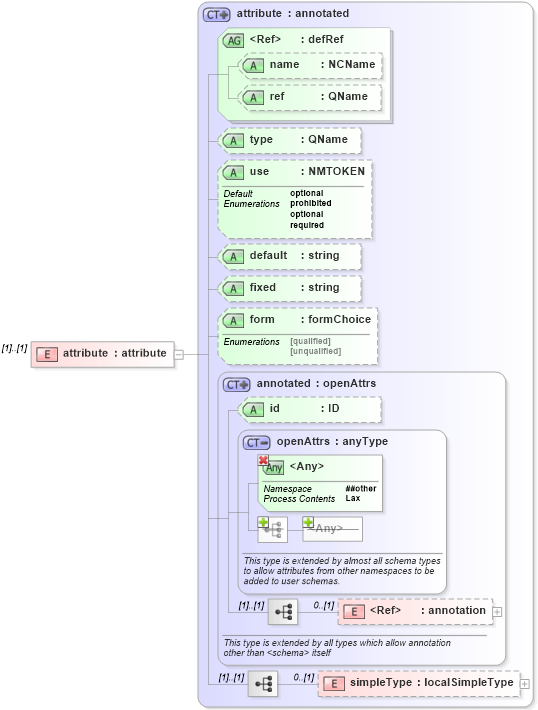

Collapse XSD Schema Diagram:
Drilldown into simpleType in schema xmlschema_xsd Drilldown into annotation in schema xmlschema_xsd Drilldown into openAttrs in schema xmlschema_xsd Drilldown into id in schema xmlschema_xsd Drilldown into annotated in schema xmlschema_xsd Drilldown into form in schema xmlschema_xsd Drilldown into fixed in schema xmlschema_xsd Drilldown into default in schema xmlschema_xsd Drilldown into use in schema xmlschema_xsd Drilldown into type in schema xmlschema_xsd Drilldown into ref in schema xmlschema_xsd Drilldown into name in schema xmlschema_xsd Drilldown into defRef in schema xmlschema_xsd Drilldown into attribute in schema xmlschema_xsdXSD Diagram of attribute in schema xmlschema_xsd (W3C XML Schema Definition Language)
Collapse XSD Schema Code:
<xs:element name="attribute" type="xs:attribute" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
annotation xs:annotation 0 (1)
simpleType xs:simpleType 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id xs:id (Optional)
name xs:name (Optional)
ref xs:ref (Optional)
type xs:type (Optional)
use xs:use optional Optional
default xs:default (Optional)
fixed xs:fixed (Optional)
form xs:form (Optional)
<anyAttribute>
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
