Documentation for XHTML™ 1.0 The Extensible HyperText Markup Language
Definition Type: ComplexType
Name: Flow
Namespace: http://www.w3.org/1999/xhtml
Containing Schema: xhtml1-strict.xsd
Abstract
Documentation:
"Flow" mixes block and inline and is used for list items etc.

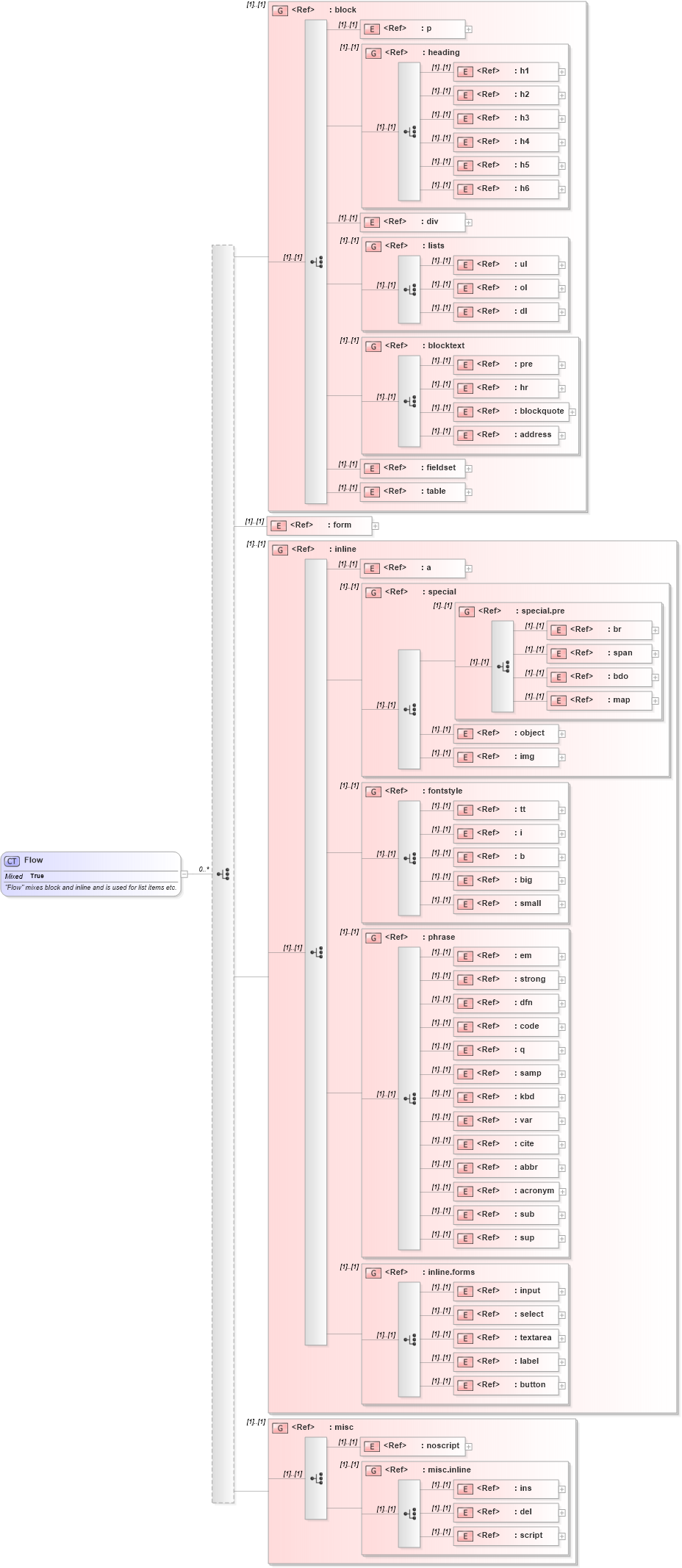

Collapse XSD Schema Diagram:
Drilldown into script in schema xhtml1-strict_xsd Drilldown into del in schema xhtml1-strict_xsd Drilldown into ins in schema xhtml1-strict_xsd Drilldown into misc.inline in schema xhtml1-strict_xsd Drilldown into noscript in schema xhtml1-strict_xsd Drilldown into misc in schema xhtml1-strict_xsd Drilldown into button in schema xhtml1-strict_xsd Drilldown into label in schema xhtml1-strict_xsd Drilldown into textarea in schema xhtml1-strict_xsd Drilldown into select in schema xhtml1-strict_xsd Drilldown into input in schema xhtml1-strict_xsd Drilldown into inline.forms in schema xhtml1-strict_xsd Drilldown into sup in schema xhtml1-strict_xsd Drilldown into sub in schema xhtml1-strict_xsd Drilldown into acronym in schema xhtml1-strict_xsd Drilldown into abbr in schema xhtml1-strict_xsd Drilldown into cite in schema xhtml1-strict_xsd Drilldown into var in schema xhtml1-strict_xsd Drilldown into kbd in schema xhtml1-strict_xsd Drilldown into samp in schema xhtml1-strict_xsd Drilldown into q in schema xhtml1-strict_xsd Drilldown into code in schema xhtml1-strict_xsd Drilldown into dfn in schema xhtml1-strict_xsd Drilldown into strong in schema xhtml1-strict_xsd Drilldown into em in schema xhtml1-strict_xsd Drilldown into phrase in schema xhtml1-strict_xsd Drilldown into small in schema xhtml1-strict_xsd Drilldown into big in schema xhtml1-strict_xsd Drilldown into b in schema xhtml1-strict_xsd Drilldown into i in schema xhtml1-strict_xsd Drilldown into tt in schema xhtml1-strict_xsd Drilldown into fontstyle in schema xhtml1-strict_xsd Drilldown into img in schema xhtml1-strict_xsd Drilldown into object in schema xhtml1-strict_xsd Drilldown into map in schema xhtml1-strict_xsd Drilldown into bdo in schema xhtml1-strict_xsd Drilldown into span in schema xhtml1-strict_xsd Drilldown into br in schema xhtml1-strict_xsd Drilldown into special.pre in schema xhtml1-strict_xsd Drilldown into special in schema xhtml1-strict_xsd Drilldown into a in schema xhtml1-strict_xsd Drilldown into inline in schema xhtml1-strict_xsd Drilldown into form in schema xhtml1-strict_xsd Drilldown into table in schema xhtml1-strict_xsd Drilldown into fieldset in schema xhtml1-strict_xsd Drilldown into address in schema xhtml1-strict_xsd Drilldown into blockquote in schema xhtml1-strict_xsd Drilldown into hr in schema xhtml1-strict_xsd Drilldown into pre in schema xhtml1-strict_xsd Drilldown into blocktext in schema xhtml1-strict_xsd Drilldown into dl in schema xhtml1-strict_xsd Drilldown into ol in schema xhtml1-strict_xsd Drilldown into ul in schema xhtml1-strict_xsd Drilldown into lists in schema xhtml1-strict_xsd Drilldown into div in schema xhtml1-strict_xsd Drilldown into h6 in schema xhtml1-strict_xsd Drilldown into h5 in schema xhtml1-strict_xsd Drilldown into h4 in schema xhtml1-strict_xsd Drilldown into h3 in schema xhtml1-strict_xsd Drilldown into h2 in schema xhtml1-strict_xsd Drilldown into h1 in schema xhtml1-strict_xsd Drilldown into heading in schema xhtml1-strict_xsd Drilldown into p in schema xhtml1-strict_xsd Drilldown into block in schema xhtml1-strict_xsdXSD Diagram of Flow in schema xhtml1-strict_xsd (XHTML™ 1.0 The Extensible HyperText Markup Language)
Collapse XSD Schema Code:
<xs:complexType name="Flow" mixed="true">
    <xs:annotation>
        <xs:documentation>
      "Flow" mixes block and inline and is used for list items etc.
      </xs:documentation>
    </xs:annotation>
    <xs:choice minOccurs="0" maxOccurs="unbounded">
        <xs:group ref="block" />
        <xs:element ref="form" />
        <xs:group ref="inline" />
        <xs:group ref="misc" />
    </xs:choice>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
p nsA:p (1) (1)
h1 nsA:h1 (1) (1)
h2 nsA:h2 (1) (1)
h3 nsA:h3 (1) (1)
h4 nsA:h4 (1) (1)
h5 nsA:h5 (1) (1)
h6 nsA:h6 (1) (1)
div nsA:div (1) (1)
ul nsA:ul (1) (1)
ol nsA:ol (1) (1)
dl nsA:dl (1) (1)
pre nsA:pre (1) (1)
hr nsA:hr (1) (1)
blockquote nsA:blockquote (1) (1)
address nsA:address (1) (1)
fieldset nsA:fieldset (1) (1)
table nsA:table (1) (1)
form nsA:form (1) (1)
a nsA:a (1) (1)
br nsA:br (1) (1)
span nsA:span (1) (1)
bdo nsA:bdo (1) (1)
map nsA:map (1) (1)
object nsA:object (1) (1)
img nsA:img (1) (1)
tt nsA:tt (1) (1)
i nsA:i (1) (1)
b nsA:b (1) (1)
big nsA:big (1) (1)
small nsA:small (1) (1)
em nsA:em (1) (1)
strong nsA:strong (1) (1)
dfn nsA:dfn (1) (1)
code nsA:code (1) (1)
q nsA:q (1) (1)
samp nsA:samp (1) (1)
kbd nsA:kbd (1) (1)
var nsA:var (1) (1)
cite nsA:cite (1) (1)
abbr nsA:abbr (1) (1)
acronym nsA:acronym (1) (1)
sub nsA:sub (1) (1)
sup nsA:sup (1) (1)
input nsA:input (1) (1)
select nsA:select (1) (1)
textarea nsA:textarea (1) (1)
label nsA:label (1) (1)
button nsA:button (1) (1)
noscript nsA:noscript (1) (1)
ins nsA:ins (1) (1)
del nsA:del (1) (1)
script nsA:script (1) (1)
<xs:group> nsA:block (1) (1)
<xs:group> nsA:heading (1) (1)
<xs:group> nsA:lists (1) (1)
<xs:group> nsA:blocktext (1) (1)
<xs:group> nsA:inline (1) (1)
<xs:group> nsA:special (1) (1)
<xs:group> nsA:special.pre (1) (1)
<xs:group> nsA:fontstyle (1) (1)
<xs:group> nsA:phrase (1) (1)
<xs:group> nsA:inline.forms (1) (1)
<xs:group> nsA:misc (1) (1)
<xs:group> nsA:misc.inline (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:dd, nsA:del, nsA:div, nsA:ins, nsA:li, nsA:td, nsA:th
