Documentation for OGC Web Feature Service
Definition Type: ComplexType
Name: WFS_CapabilitiesType
Namespace: http://www.opengis.net/wfs/2.0
Type: ows:CapabilitiesBaseType
Containing Schema: wfs.xsd
Abstract

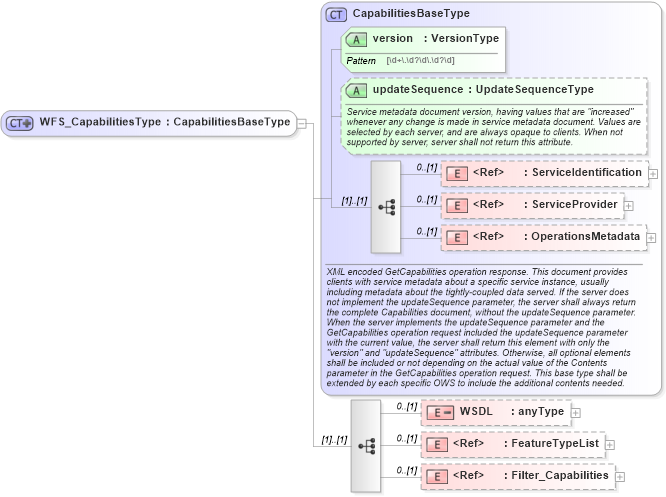

Collapse XSD Schema Diagram:
Drilldown into Filter_Capabilities in schema filtercapabilities_xsd Drilldown into FeatureTypeList in schema wfs_xsd Drilldown into WSDL in schema wfs_xsd Drilldown into OperationsMetadata in schema owsoperationsmetadata_xsd Drilldown into ServiceProvider in schema owsserviceprovider_xsd Drilldown into ServiceIdentification in schema owsserviceidentification_xsd Drilldown into updateSequence in schema owsgetcapabilities_xsd Drilldown into version in schema owsgetcapabilities_xsd Drilldown into CapabilitiesBaseType in schema owsgetcapabilities_xsdXSD Diagram of WFS_CapabilitiesType in schema wfs_xsd (OGC Web Feature Service)
Collapse XSD Schema Code:
<xsd:complexType name="WFS_CapabilitiesType">
    <xsd:complexContent>
        <xsd:extension base="ows:CapabilitiesBaseType">
            <xsd:sequence>
                <xsd:element name="WSDL" minOccurs="0">
                    <xsd:complexType>
                        <xsd:complexContent>
                            <xsd:restriction base="xsd:anyType">
                                <xsd:attributeGroup ref="xlink:simpleAttrs" />
                            </xsd:restriction>
                        </xsd:complexContent>
                    </xsd:complexType>
                </xsd:element>
                <xsd:element ref="wfs:FeatureTypeList" minOccurs="0" />
                <xsd:element ref="fes:Filter_Capabilities" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ServiceIdentification ows:ServiceIdentification 0 (1)
ServiceProvider ows:ServiceProvider 0 (1)
OperationsMetadata ows:OperationsMetadata 0 (1)
WSDL wfs:WSDL 0 (1)
FeatureTypeList wfs:FeatureTypeList 0 (1)
Filter_Capabilities fes:Filter_Capabilities 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
version ows:version Required
updateSequence ows:updateSequence Optional
Collapse Derivation Tree:
Collapse References:
wfs:WFS_Capabilities
