Definition Type: Element
Name: Background
Type: X3DBackgroundNode
Containing Schema: x3d-3.2.xsd
Abstract

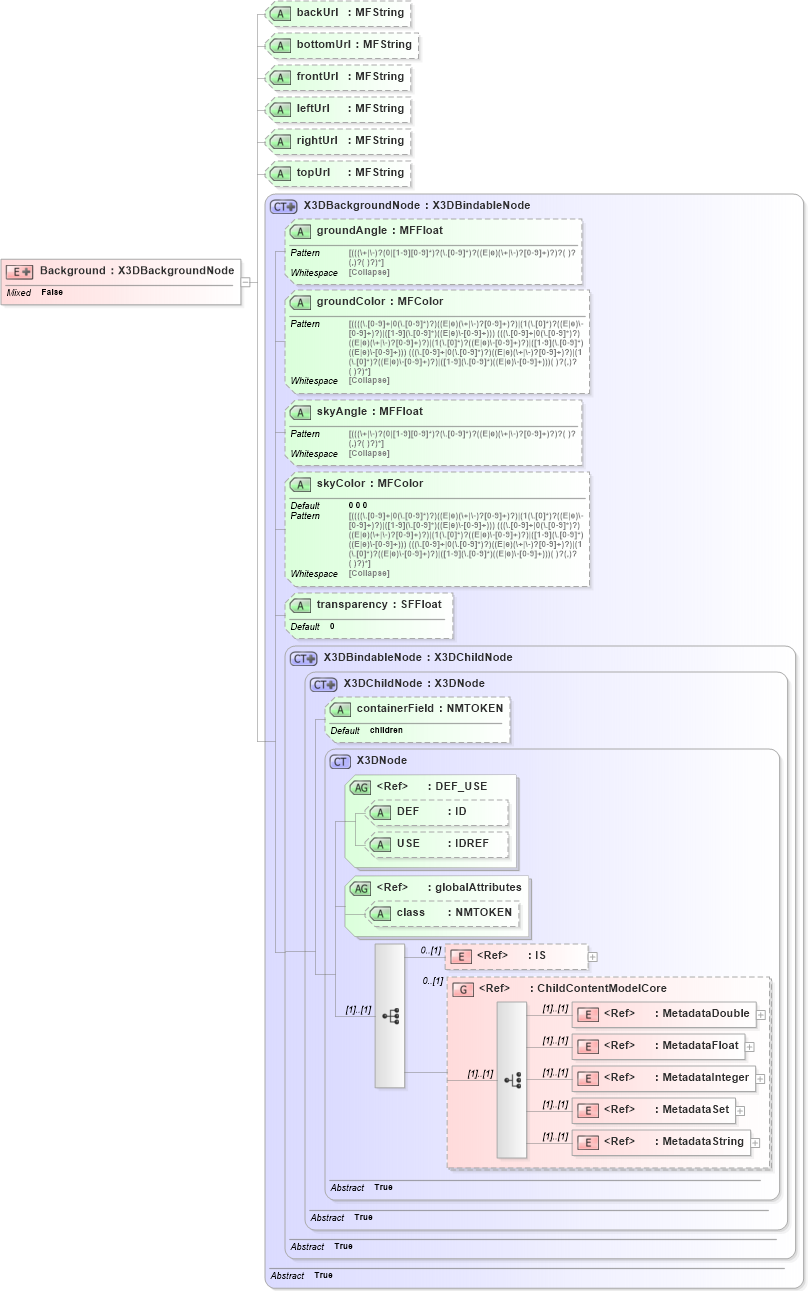

Collapse XSD Schema Diagram:
Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into X3DChildNode in schema x3d-3_2_xsd Drilldown into X3DBindableNode in schema x3d-3_2_xsd Drilldown into transparency in schema x3d-3_2_xsd Drilldown into skyColor in schema x3d-3_2_xsd Drilldown into skyAngle in schema x3d-3_2_xsd Drilldown into groundColor in schema x3d-3_2_xsd Drilldown into groundAngle in schema x3d-3_2_xsd Drilldown into X3DBackgroundNode in schema x3d-3_2_xsd Drilldown into topUrl in schema x3d-3_2_xsd Drilldown into rightUrl in schema x3d-3_2_xsd Drilldown into leftUrl in schema x3d-3_2_xsd Drilldown into frontUrl in schema x3d-3_2_xsd Drilldown into bottomUrl in schema x3d-3_2_xsd Drilldown into backUrl in schema x3d-3_2_xsdXSD Diagram of Background in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:element name="Background">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation source="http://www.web3d.org/x3d/specifications/ISO-IEC-FDIS-19775-1.2-X3D-AbstractSpecification/Part01/components/enveffects.html#Background" />
    </xs:annotation>
    <xs:complexType mixed="false">
        <xs:complexContent mixed="false">
            <xs:extension base="X3DBackgroundNode">
                <xs:attribute name="backUrl" type="MFString" />
                <xs:attribute name="bottomUrl" type="MFString" />
                <xs:attribute name="frontUrl" type="MFString" />
                <xs:attribute name="leftUrl" type="MFString" />
                <xs:attribute name="rightUrl" type="MFString" />
                <xs:attribute name="topUrl" type="MFString" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
containerField containerField children (Optional)
groundAngle groundAngle (Optional)
groundColor groundColor (Optional)
skyAngle skyAngle (Optional)
skyColor skyColor 0 0 0 (Optional)
transparency transparency 0 (Optional)
backUrl backUrl (Optional)
bottomUrl bottomUrl (Optional)
frontUrl frontUrl (Optional)
leftUrl leftUrl (Optional)
rightUrl rightUrl (Optional)
topUrl topUrl (Optional)
Collapse Derivation Tree:
