Definition Type:	ComplexType
Name:	X3DBindableNode
Type:	X3DChildNode
Containing Schema:	x3d-3.2.xsd
Abstract	True

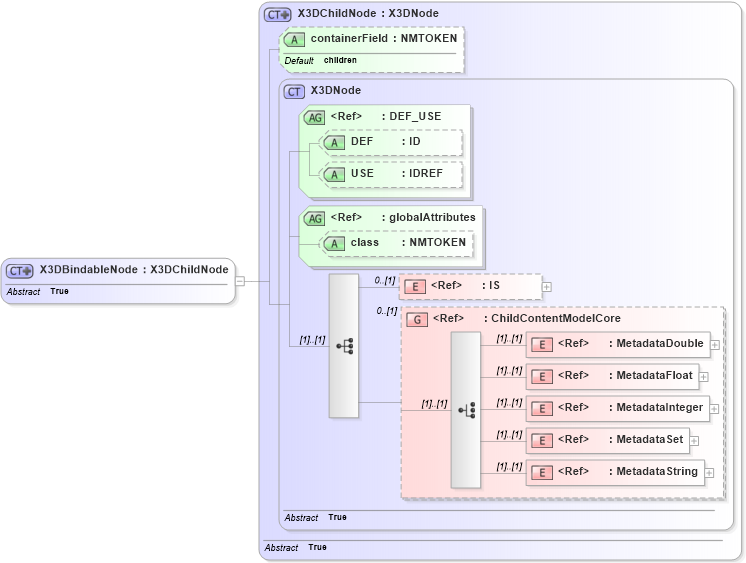

XSD Schema Diagram:

XSD Diagram of X3DBindableNode in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)

XSD Schema Code:

<xs:complexType name="X3DBindableNode" abstract="true" mixed="false">
    <xs:annotation>
        <xs:appinfo>Bindable nodes implement the binding stack, so that only one of each node type is active at a given time.</xs:appinfo>
        <xs:documentation source="http://www.web3d.org/x3d/specifications/ISO-IEC-FDIS-19775-1.2-X3D-AbstractSpecification/Part01/components/core.html#X3DBindableNode" />
    </xs:annotation>
    <xs:complexContent mixed="false">
        <xs:extension base="X3DChildNode" />
    </xs:complexContent>
</xs:complexType>

Child Elements:

Name	Type	Min Occurs	Max Occurs
IS	IS	0	(1)
MetadataDouble	MetadataDouble	(1)	(1)
MetadataFloat	MetadataFloat	(1)	(1)
MetadataInteger	MetadataInteger	(1)	(1)
MetadataSet	MetadataSet	(1)	(1)
MetadataString	MetadataString	(1)	(1)
<xs:group>	ChildContentModelCore	0	(1)

Child Attributes:

Name	Type	Default Value	Use
DEF	DEF		(Optional)
USE	USE		(Optional)
class	class		(Optional)
containerField	containerField	children	(Optional)

Derivation Tree:
	X3DNode X3DChildNode *X3DBindableNode* X3DBackgroundNode Background TextureBackground X3DViewpointNode OrthoViewpoint Viewpoint Fog GeoViewpoint LocalFog NavigationInfo

References:
	Fog, GeoViewpoint, LocalFog, NavigationInfo X3DBackgroundNode, X3DViewpointNode,
