Definition Type: Element
Name: NavigationInfo
Type: X3DBindableNode
Containing Schema: x3d-3.2.xsd
Abstract

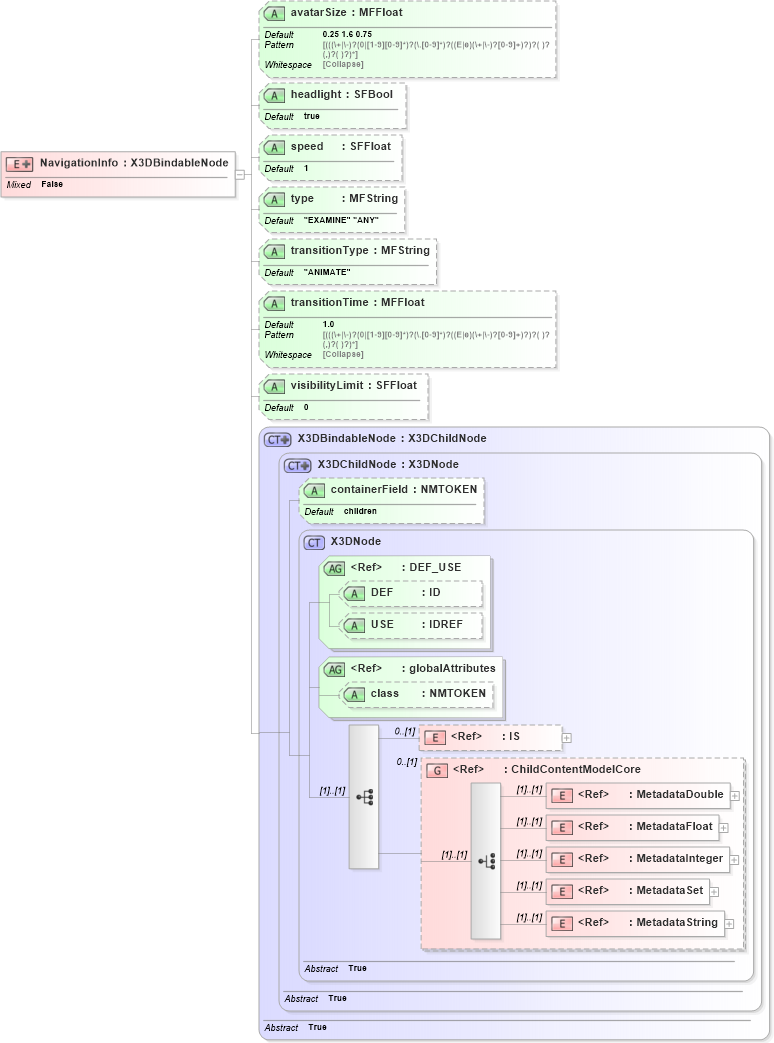

Collapse XSD Schema Diagram:
Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into X3DChildNode in schema x3d-3_2_xsd Drilldown into X3DBindableNode in schema x3d-3_2_xsd Drilldown into visibilityLimit in schema x3d-3_2_xsd Drilldown into transitionTime in schema x3d-3_2_xsd Drilldown into transitionType in schema x3d-3_2_xsd Drilldown into type in schema x3d-3_2_xsd Drilldown into speed in schema x3d-3_2_xsd Drilldown into headlight in schema x3d-3_2_xsd Drilldown into avatarSize in schema x3d-3_2_xsdXSD Diagram of NavigationInfo in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:element name="NavigationInfo">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation source="http://www.web3d.org/x3d/specifications/ISO-IEC-FDIS-19775-1.2-X3D-AbstractSpecification/Part01/components/navigation.html#NavigationInfo" />
    </xs:annotation>
    <xs:complexType mixed="false">
        <xs:complexContent mixed="false">
            <xs:extension base="X3DBindableNode">
                <xs:attribute name="avatarSize" type="MFFloat" default="0.25 1.6 0.75" />
                <xs:attribute name="headlight" type="SFBool" default="true" />
                <xs:attribute name="speed" type="SFFloat" default="1" />
                <xs:attribute name="type" type="MFString" default="&quot;EXAMINE&quot; &quot;ANY&quot;" />
                <xs:attribute name="transitionType" type="MFString" default="&quot;ANIMATE&quot;" />
                <xs:attribute name="transitionTime" type="MFFloat" default="1.0" />
                <xs:attribute name="visibilityLimit" type="SFFloat" default="0" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
containerField containerField children (Optional)
avatarSize avatarSize 0.25 1.6 0.75 (Optional)
headlight headlight true (Optional)
speed speed 1 (Optional)
type type "EXAMINE" "ANY" (Optional)
transitionType transitionType "ANIMATE" (Optional)
transitionTime transitionTime 1.0 (Optional)
visibilityLimit visibilityLimit 0 (Optional)
Collapse Derivation Tree:
