Definition Type: Element
Name: OrthoViewpoint
Type: X3DViewpointNode
Containing Schema: x3d-3.2.xsd
Abstract

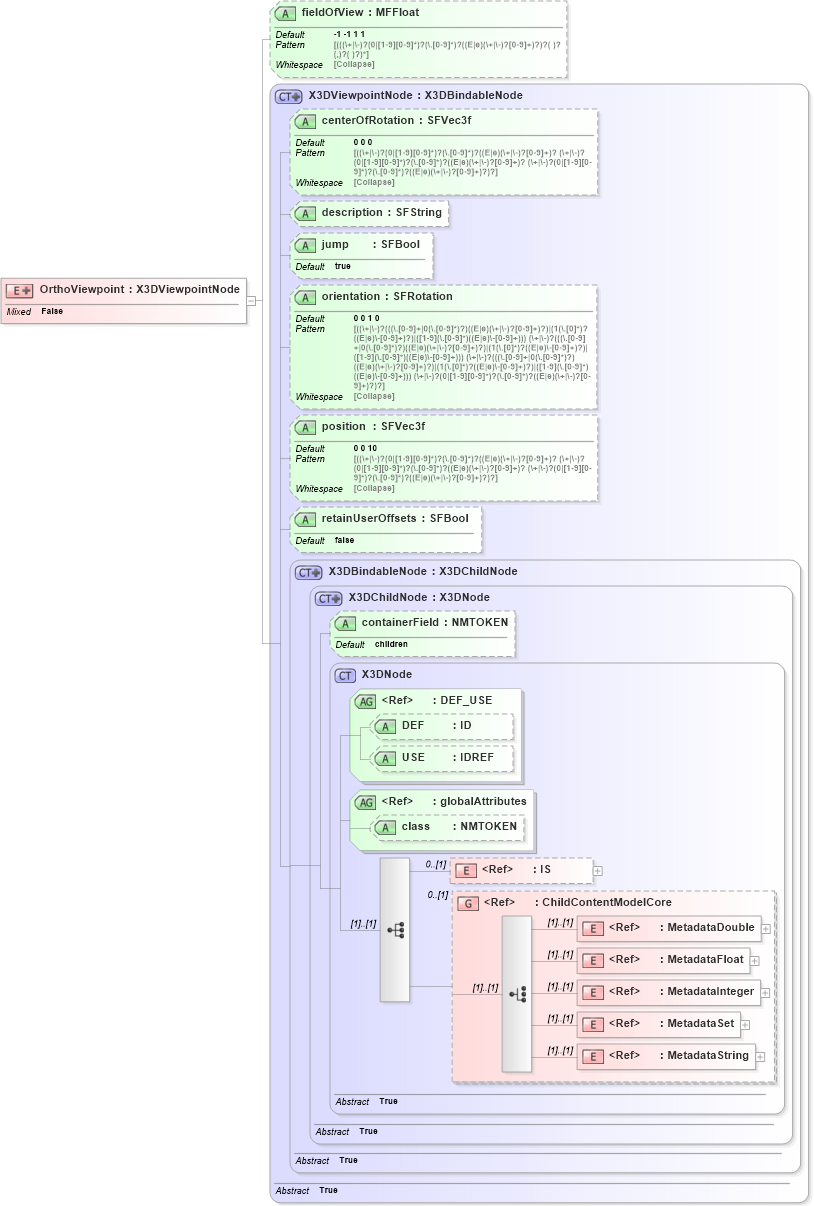

Collapse XSD Schema Diagram:
Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into X3DChildNode in schema x3d-3_2_xsd Drilldown into X3DBindableNode in schema x3d-3_2_xsd Drilldown into retainUserOffsets in schema x3d-3_2_xsd Drilldown into position in schema x3d-3_2_xsd Drilldown into orientation in schema x3d-3_2_xsd Drilldown into jump in schema x3d-3_2_xsd Drilldown into description in schema x3d-3_2_xsd Drilldown into centerOfRotation in schema x3d-3_2_xsd Drilldown into X3DViewpointNode in schema x3d-3_2_xsd Drilldown into fieldOfView in schema x3d-3_2_xsdXSD Diagram of OrthoViewpoint in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:element name="OrthoViewpoint">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation />
    </xs:annotation>
    <xs:complexType mixed="false">
        <xs:complexContent mixed="false">
            <xs:extension base="X3DViewpointNode">
                <xs:attribute name="fieldOfView" type="MFFloat" default="-1 -1 1 1" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
containerField containerField children (Optional)
centerOfRotation centerOfRotation 0 0 0 (Optional)
description description (Optional)
jump jump true (Optional)
orientation orientation 0 0 1 0 (Optional)
position position 0 0 10 (Optional)
retainUserOffsets retainUserOffsets false (Optional)
fieldOfView fieldOfView -1 -1 1 1 (Optional)
Collapse Derivation Tree:
