Definition Type: Element
Name: TextureBackground
Type: X3DBackgroundNode
Containing Schema: x3d-3.2.xsd
Abstract

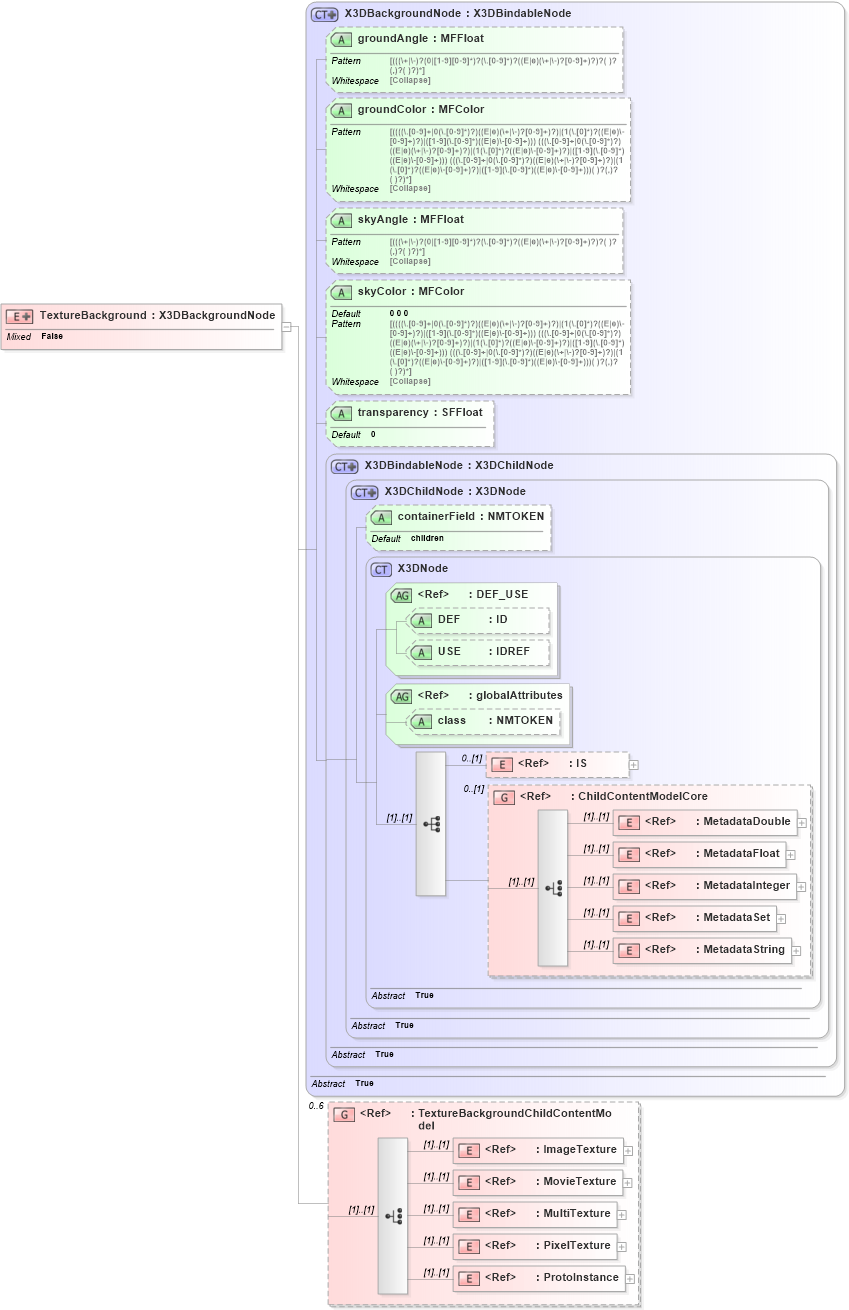

Collapse XSD Schema Diagram:
Drilldown into ProtoInstance in schema x3d-3_2_xsd Drilldown into PixelTexture in schema x3d-3_2_xsd Drilldown into MultiTexture in schema x3d-3_2_xsd Drilldown into MovieTexture in schema x3d-3_2_xsd Drilldown into ImageTexture in schema x3d-3_2_xsd Drilldown into TextureBackgroundChildContentModel in schema x3d-3_2_xsd Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into X3DChildNode in schema x3d-3_2_xsd Drilldown into X3DBindableNode in schema x3d-3_2_xsd Drilldown into transparency in schema x3d-3_2_xsd Drilldown into skyColor in schema x3d-3_2_xsd Drilldown into skyAngle in schema x3d-3_2_xsd Drilldown into groundColor in schema x3d-3_2_xsd Drilldown into groundAngle in schema x3d-3_2_xsd Drilldown into X3DBackgroundNode in schema x3d-3_2_xsdXSD Diagram of TextureBackground in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:element name="TextureBackground">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation source="http://www.web3d.org/x3d/specifications/ISO-IEC-FDIS-19775-1.2-X3D-AbstractSpecification/Part01/components/enveffects.html#TextureBackground" />
    </xs:annotation>
    <xs:complexType mixed="false">
        <xs:complexContent mixed="false">
            <xs:extension base="X3DBackgroundNode">
                <xs:group ref="TextureBackgroundChildContentModel" minOccurs="0" maxOccurs="6" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
ImageTexture ImageTexture (1) (1)
MovieTexture MovieTexture (1) (1)
MultiTexture MultiTexture (1) (1)
PixelTexture PixelTexture (1) (1)
ProtoInstance ProtoInstance (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
containerField containerField children (Optional)
groundAngle groundAngle (Optional)
groundColor groundColor (Optional)
skyAngle skyAngle (Optional)
skyColor skyColor 0 0 0 (Optional)
transparency transparency 0 (Optional)
Collapse Derivation Tree:
