Documentation for Business To Manufacturing Markup Language
Definition Type: Element
Name: Location
Namespace: http://www.wbf.org/xml/B2MML-V0401
Type: b2mml:LocationType
Containing Schema: B2MML-V0401-Common.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

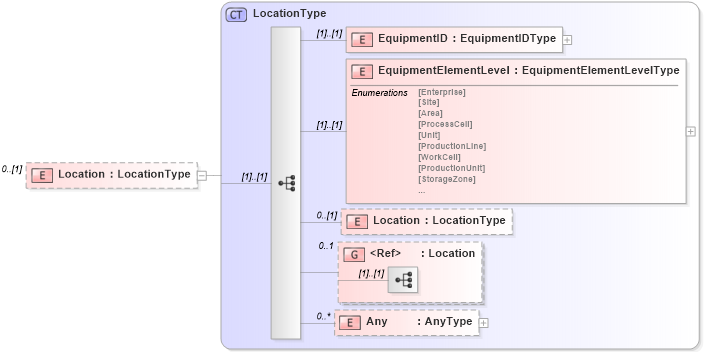

Collapse XSD Schema Diagram:
Drilldown into Any in schema b2mml-v0401-common_xsd Drilldown into Location in schema b2mml-v0401-commonextensions_xsd Drilldown into EquipmentElementLevel in schema b2mml-v0401-common_xsd Drilldown into EquipmentID in schema b2mml-v0401-common_xsd Drilldown into LocationType in schema b2mml-v0401-common_xsdXSD Diagram of Location in schema b2mml-v0401-common_xsd (Business To Manufacturing Markup Language)
Collapse XSD Schema Code:
<xsd:element name="Location" type="LocationType" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EquipmentID b2mml:EquipmentID (1) (1)
EquipmentElementLevel b2mml:EquipmentElementLevel (1) (1)
Location b2mml:Location 0 (1)
Any b2mml:Any 0 unbounded
<xs:group> Extended:Location 0 1
Collapse Derivation Tree:
