Documentation for OASIS Election Markup Language (EML)
Definition Type: Element
Name: Affiliation
Namespace: urn:oasis:names:tc:evs:schema:eml
Type: nsA:AffiliationStructure
Containing Schema: 340-410-430-include-v5-0.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

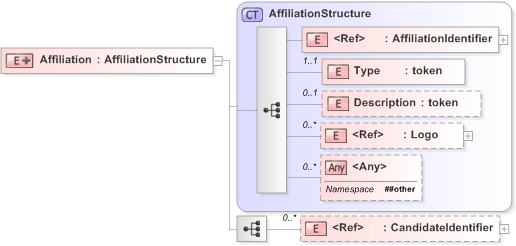

Collapse XSD Schema Diagram:
Drilldown into CandidateIdentifier in schema emlcore-v5-0_xsd Drilldown into Logo in schema emlcore-v5-0_xsd Drilldown into Description in schema emlcore-v5-0_xsd Drilldown into Type in schema emlcore-v5-0_xsd Drilldown into AffiliationIdentifier in schema emlcore-v5-0_xsd Drilldown into AffiliationStructure in schema emlcore-v5-0_xsdXSD Diagram of Affiliation in schema 340-410-430-include-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:element name="Affiliation">
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="AffiliationStructure">
                <xs:sequence>
                    <xs:element ref="CandidateIdentifier" minOccurs="0" maxOccurs="unbounded" />
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AffiliationIdentifier nsA:AffiliationIdentifier (1) (1)
Type nsA:Type 1 (1)
Description nsA:Description 0 (1)
Logo nsA:Logo 0 unbounded
CandidateIdentifier nsA:CandidateIdentifier 0 unbounded
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
Collapse Comments:
