Documentation for OASIS Election Markup Language (EML)
Definition Type: ComplexType
Name: AffiliationStructure
Namespace: urn:oasis:names:tc:evs:schema:eml
Containing Schema: emlcore-v5-0.xsd
Abstract

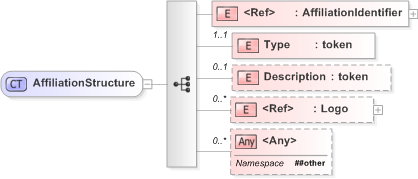

Collapse XSD Schema Diagram:
Drilldown into Logo in schema emlcore-v5-0_xsd Drilldown into Description in schema emlcore-v5-0_xsd Drilldown into Type in schema emlcore-v5-0_xsd Drilldown into AffiliationIdentifier in schema emlcore-v5-0_xsdXSD Diagram of AffiliationStructure in schema emlcore-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:complexType name="AffiliationStructure">
    <xs:sequence>
        <xs:element ref="AffiliationIdentifier" />
        <xs:element name="Type" type="xs:token" minOccurs="1" />
        <xs:element name="Description" type="xs:token" minOccurs="0" />
        <xs:element ref="Logo" minOccurs="0" maxOccurs="unbounded" />
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AffiliationIdentifier nsA:AffiliationIdentifier (1) (1)
Type nsA:Type 1 (1)
Description nsA:Description 0 (1)
Logo nsA:Logo 0 unbounded
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:Affiliation, nsA:Affiliation, nsA:Affiliation, nsA:Affiliation
