Documentation for OASIS Election Markup Language (EML)
Definition Type: Element
Name: Ballots
Namespace: urn:oasis:names:tc:evs:schema:eml
Type: nsA:BallotsStructure
Containing Schema: 410-ballots-v5-0.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

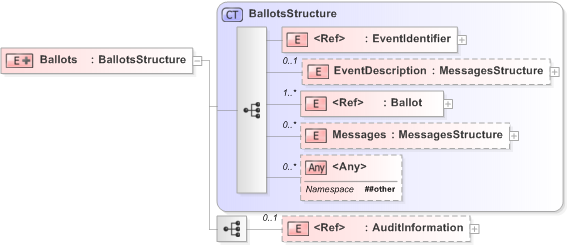

Collapse XSD Schema Diagram:
Drilldown into AuditInformation in schema emlcore-v5-0_xsd Drilldown into Messages in schema 340-410-430-include-v5-0_xsd Drilldown into Ballot in schema 340-410-430-include-v5-0_xsd Drilldown into EventDescription in schema 340-410-430-include-v5-0_xsd Drilldown into EventIdentifier in schema emlcore-v5-0_xsd Drilldown into BallotsStructure in schema 340-410-430-include-v5-0_xsdXSD Diagram of Ballots in schema 410-ballots-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:element name="Ballots">
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="BallotsStructure">
                <xs:sequence>
                    <xs:element ref="AuditInformation" minOccurs="0" />
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EventIdentifier nsA:EventIdentifier (1) (1)
EventDescription nsA:EventDescription 0 (1)
Ballot nsA:Ballot (1) unbounded
Messages nsA:Messages 0 unbounded
AuditInformation nsA:AuditInformation 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
Collapse Comments:
