Documentation for OASIS Election Markup Language (EML)
Definition Type: ComplexType
Name: BallotsStructure
Namespace: urn:oasis:names:tc:evs:schema:eml
Containing Schema: 340-410-430-include-v5-0.xsd
Abstract
Collapse XSD Schema Diagram:

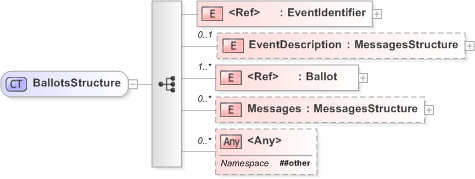

Drilldown into Messages in schema 340-410-430-include-v5-0_xsd Drilldown into Ballot in schema 340-410-430-include-v5-0_xsd Drilldown into EventDescription in schema 340-410-430-include-v5-0_xsd Drilldown into EventIdentifier in schema emlcore-v5-0_xsdXSD Diagram of BallotsStructure in schema 340-410-430-include-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:complexType name="BallotsStructure">
    <xs:sequence>
        <xs:element ref="EventIdentifier" />
        <xs:element name="EventDescription" type="MessagesStructure" minOccurs="0" />
        <xs:element ref="Ballot" maxOccurs="unbounded" />
        <xs:element name="Messages" type="MessagesStructure" minOccurs="0" maxOccurs="unbounded" />
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EventIdentifier nsA:EventIdentifier (1) (1)
EventDescription nsA:EventDescription 0 (1)
Ballot nsA:Ballot (1) unbounded
Messages nsA:Messages 0 unbounded
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:Ballots
