Definition Type: Element
Name: address
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NAR_1.3-spec-Framework-Power.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
A postal address.

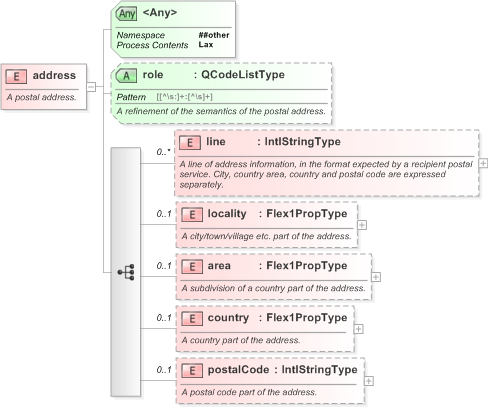

Collapse XSD Schema Diagram:
Drilldown into postalCode in schema nar_1_3-spec-framework-power_xsd Drilldown into country in schema nar_1_3-spec-framework-power_xsd Drilldown into area in schema nar_1_3-spec-framework-power_xsd Drilldown into locality in schema nar_1_3-spec-framework-power_xsd Drilldown into line in schema nar_1_3-spec-framework-power_xsd Drilldown into role in schema nar_1_3-spec-framework-power_xsdXSD Diagram of address in schema nar_1_3-spec-framework-power_xsd (EventsML - News Exchange Format)
Collapse XSD Schema Code:
<xs:element name="address">
    <xs:annotation>
        <xs:documentation>A postal address.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="line" type="IntlStringType" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>A line of address information, in the format expected by a recipient postal service. City, country area, country and postal code are expressed separately.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="locality" minOccurs="0" type="Flex1PropType">
                <xs:annotation>
                    <xs:documentation>A city/town/village etc. part of the address.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="area" minOccurs="0" type="Flex1PropType">
                <xs:annotation>
                    <xs:documentation>A subdivision of a country part of the address.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="country" minOccurs="0" type="Flex1PropType">
                <xs:annotation>
                    <xs:documentation>A country part of the address.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="postalCode" type="IntlStringType" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>A postal code part of the address.</xs:documentation>
                </xs:annotation>
            </xs:element>
        </xs:sequence>
        <xs:attribute name="role" type="QCodeListType">
            <xs:annotation>
                <xs:documentation>A refinement of the semantics of the postal address.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:anyAttribute namespace="##other" processContents="lax" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
line nsA:line 0 unbounded
locality nsA:locality 0 (1)
area nsA:area 0 (1)
country nsA:country 0 (1)
postalCode nsA:postalCode 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
role nsA:role (Optional)
<anyAttribute> Allowed namespace: '##other'
