Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: Alloc
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:TrdAllocGrp_Block_t
Containing Schema: fixml-tradecapture-base-4-4.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

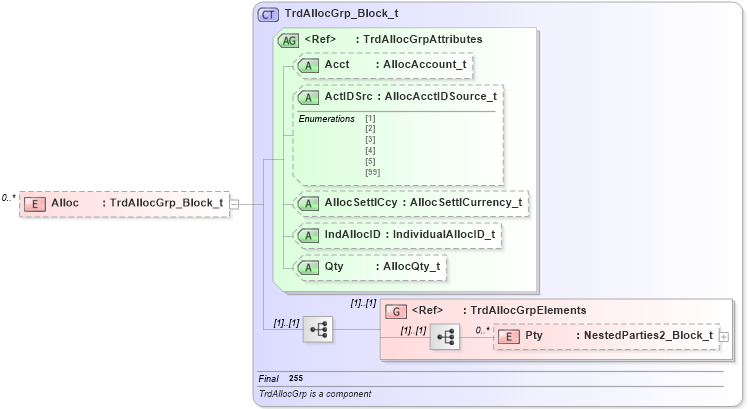

Collapse XSD Schema Diagram:
Drilldown into Pty in schema fixml-components-base-4-4_xsd Drilldown into TrdAllocGrpElements in schema fixml-components-base-4-4_xsd Drilldown into Qty in schema fixml-components-base-4-4_xsd Drilldown into IndAllocID in schema fixml-components-base-4-4_xsd Drilldown into AllocSettlCcy in schema fixml-components-base-4-4_xsd Drilldown into ActIDSrc in schema fixml-components-base-4-4_xsd Drilldown into Acct in schema fixml-components-base-4-4_xsd Drilldown into TrdAllocGrpAttributes in schema fixml-components-base-4-4_xsd Drilldown into TrdAllocGrp_Block_t in schema fixml-components-base-4-4_xsdXSD Diagram of Alloc in schema fixml-tradecapture-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="Alloc" type="TrdAllocGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Pty nsA:Pty 0 unbounded
<xs:group> nsA:TrdAllocGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Acct nsA:Acct Optional
ActIDSrc nsA:ActIDSrc Optional
AllocSettlCcy nsA:AllocSettlCcy Optional
IndAllocID nsA:IndAllocID Optional
Qty nsA:Qty Optional
Collapse Derivation Tree:
