Docs for schema item TrdAllocGrp_Block_t in Financial Information eXchange (FIX)

Documentation for Financial Information eXchange (FIX)

Definition Type:	ComplexType
Name:	TrdAllocGrp_Block_t
Namespace:	http://www.fixprotocol.org/FIXML-4-4
Containing Schema:	fixml-components-base-4-4.xsd
Abstract
Documentation:	TrdAllocGrp is a component

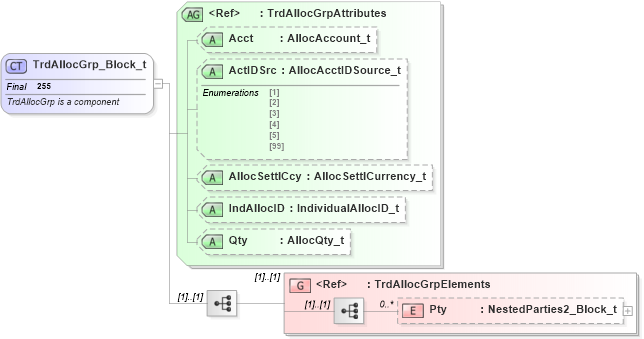

XSD Schema Diagram:

XSD Diagram of TrdAllocGrp_Block_t in schema fixml-components-base-4-4_xsd (Financial Information eXchange (FIX))

XSD Schema Code:

<xs:complexType name="TrdAllocGrp_Block_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">TrdAllocGrp is a component
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="TrdAllocGrp" ComponentType="ImplicitBlockRepeating" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="TrdAllocGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="TrdAllocGrpAttributes" />
</xs:complexType>

Child Elements:

Name	Type	Min Occurs	Max Occurs
Pty	nsA:Pty	0	unbounded
<xs:group>	nsA:TrdAllocGrpElements	(1)	(1)

Child Attributes:

Name	Type	Default Value	Use
Acct	nsA:Acct		Optional
ActIDSrc	nsA:ActIDSrc		Optional
AllocSettlCcy	nsA:AllocSettlCcy		Optional
IndAllocID	nsA:IndAllocID		Optional
Qty	nsA:Qty		Optional

Derivation Tree:
	*TrdAllocGrp_Block_t* nsA:Alloc nsA:Alloc

References:
	nsA:Alloc, nsA:Alloc
