Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: AllocRptAck
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:AllocationReportAck_message_t
Containing Schema: fixml-allocation-base-4-4.xsd
Abstract

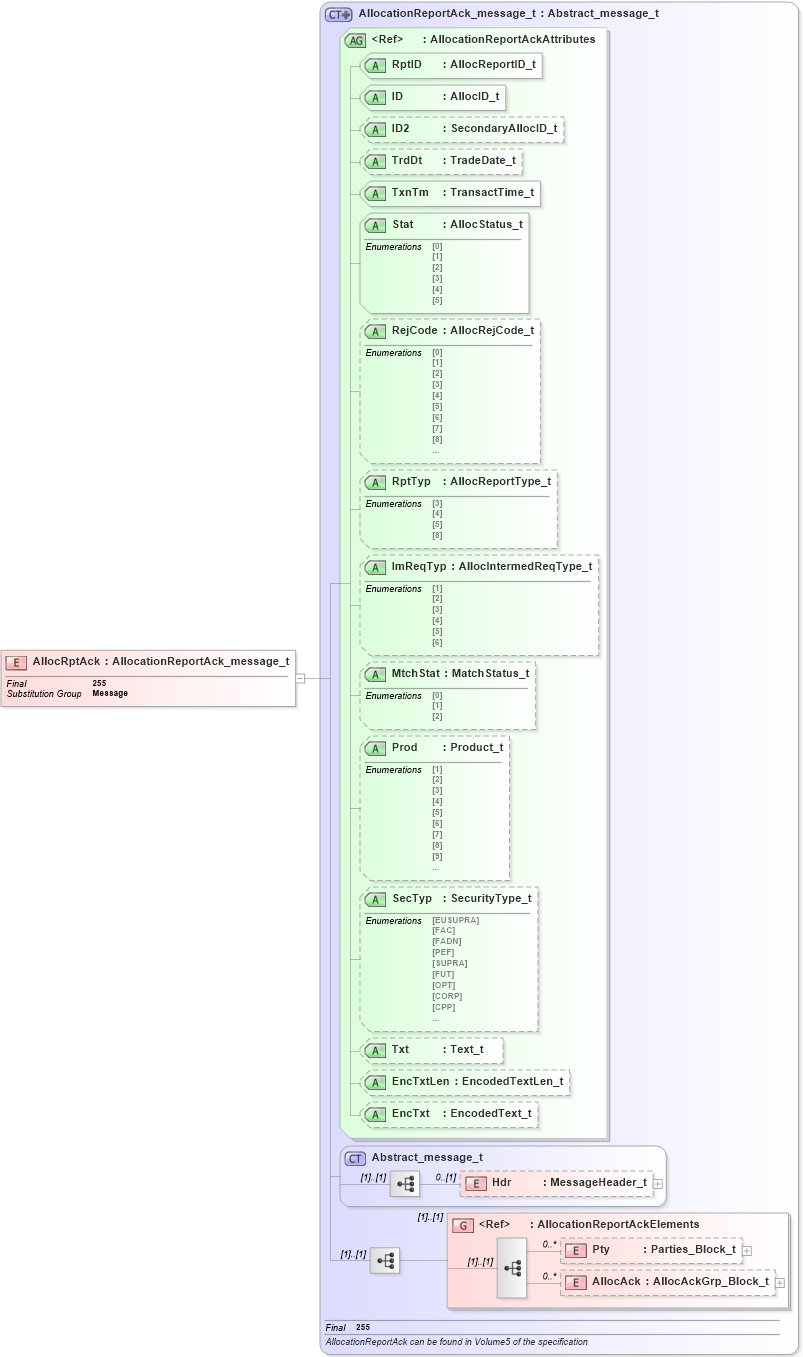

Collapse XSD Schema Diagram:
Drilldown into AllocAck in schema fixml-allocation-base-4-4_xsd Drilldown into Pty in schema fixml-allocation-base-4-4_xsd Drilldown into AllocationReportAckElements in schema fixml-allocation-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into EncTxt in schema fixml-allocation-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-allocation-base-4-4_xsd Drilldown into Txt in schema fixml-allocation-base-4-4_xsd Drilldown into SecTyp in schema fixml-allocation-base-4-4_xsd Drilldown into Prod in schema fixml-allocation-base-4-4_xsd Drilldown into MtchStat in schema fixml-allocation-base-4-4_xsd Drilldown into ImReqTyp in schema fixml-allocation-base-4-4_xsd Drilldown into RptTyp in schema fixml-allocation-base-4-4_xsd Drilldown into RejCode in schema fixml-allocation-base-4-4_xsd Drilldown into Stat in schema fixml-allocation-base-4-4_xsd Drilldown into TxnTm in schema fixml-allocation-base-4-4_xsd Drilldown into TrdDt in schema fixml-allocation-base-4-4_xsd Drilldown into ID2 in schema fixml-allocation-base-4-4_xsd Drilldown into ID in schema fixml-allocation-base-4-4_xsd Drilldown into RptID in schema fixml-allocation-base-4-4_xsd Drilldown into AllocationReportAckAttributes in schema fixml-allocation-base-4-4_xsd Drilldown into AllocationReportAck_message_t in schema fixml-allocation-base-4-4_xsdXSD Diagram of AllocRptAck in schema fixml-allocation-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="AllocRptAck" type="AllocationReportAck_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Pty nsA:Pty 0 unbounded
AllocAck nsA:AllocAck 0 unbounded
<xs:group> nsA:AllocationReportAckElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
RptID nsA:RptID Required
ID nsA:ID Required
ID2 nsA:ID2 Optional
TrdDt nsA:TrdDt Optional
TxnTm nsA:TxnTm Required
Stat nsA:Stat Required
RejCode nsA:RejCode Optional
RptTyp nsA:RptTyp Optional
ImReqTyp nsA:ImReqTyp Optional
MtchStat nsA:MtchStat Optional
Prod nsA:Prod Optional
SecTyp nsA:SecTyp Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:Message
