Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: BidReq
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:BidRequest_message_t
Containing Schema: fixml-listorders-base-4-4.xsd
Abstract

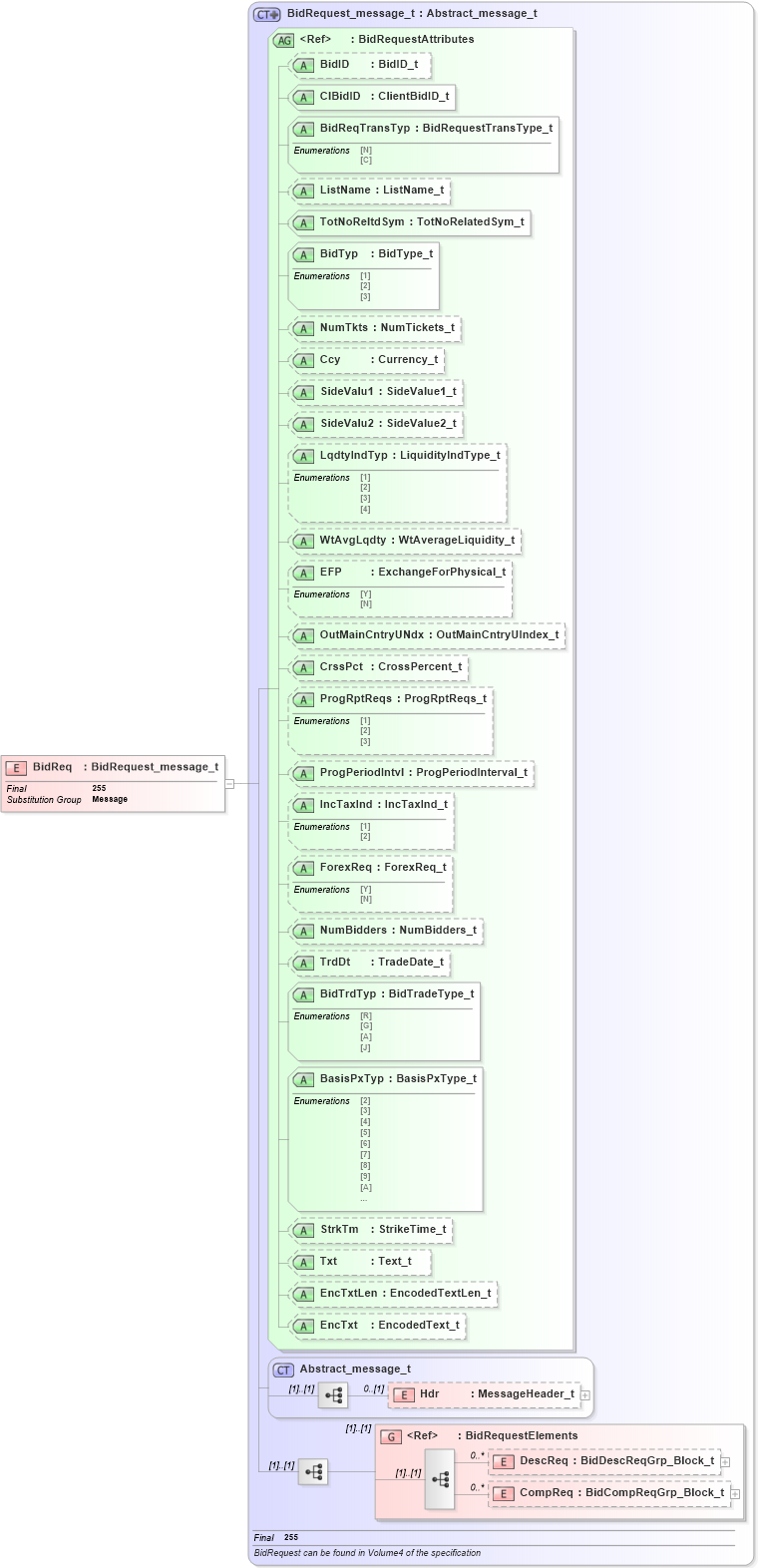

Collapse XSD Schema Diagram:
Drilldown into CompReq in schema fixml-listorders-base-4-4_xsd Drilldown into DescReq in schema fixml-listorders-base-4-4_xsd Drilldown into BidRequestElements in schema fixml-listorders-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into EncTxt in schema fixml-listorders-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-listorders-base-4-4_xsd Drilldown into Txt in schema fixml-listorders-base-4-4_xsd Drilldown into StrkTm in schema fixml-listorders-base-4-4_xsd Drilldown into BasisPxTyp in schema fixml-listorders-base-4-4_xsd Drilldown into BidTrdTyp in schema fixml-listorders-base-4-4_xsd Drilldown into TrdDt in schema fixml-listorders-base-4-4_xsd Drilldown into NumBidders in schema fixml-listorders-base-4-4_xsd Drilldown into ForexReq in schema fixml-listorders-base-4-4_xsd Drilldown into IncTaxInd in schema fixml-listorders-base-4-4_xsd Drilldown into ProgPeriodIntvl in schema fixml-listorders-base-4-4_xsd Drilldown into ProgRptReqs in schema fixml-listorders-base-4-4_xsd Drilldown into CrssPct in schema fixml-listorders-base-4-4_xsd Drilldown into OutMainCntryUNdx in schema fixml-listorders-base-4-4_xsd Drilldown into EFP in schema fixml-listorders-base-4-4_xsd Drilldown into WtAvgLqdty in schema fixml-listorders-base-4-4_xsd Drilldown into LqdtyIndTyp in schema fixml-listorders-base-4-4_xsd Drilldown into SideValu2 in schema fixml-listorders-base-4-4_xsd Drilldown into SideValu1 in schema fixml-listorders-base-4-4_xsd Drilldown into Ccy in schema fixml-listorders-base-4-4_xsd Drilldown into NumTkts in schema fixml-listorders-base-4-4_xsd Drilldown into BidTyp in schema fixml-listorders-base-4-4_xsd Drilldown into TotNoReltdSym in schema fixml-listorders-base-4-4_xsd Drilldown into ListName in schema fixml-listorders-base-4-4_xsd Drilldown into BidReqTransTyp in schema fixml-listorders-base-4-4_xsd Drilldown into ClBidID in schema fixml-listorders-base-4-4_xsd Drilldown into BidID in schema fixml-listorders-base-4-4_xsd Drilldown into BidRequestAttributes in schema fixml-listorders-base-4-4_xsd Drilldown into BidRequest_message_t in schema fixml-listorders-base-4-4_xsdXSD Diagram of BidReq in schema fixml-listorders-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="BidReq" type="BidRequest_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
DescReq nsA:DescReq 0 unbounded
CompReq nsA:CompReq 0 unbounded
<xs:group> nsA:BidRequestElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
BidID nsA:BidID Optional
ClBidID nsA:ClBidID Required
BidReqTransTyp nsA:BidReqTransTyp Required
ListName nsA:ListName Optional
TotNoReltdSym nsA:TotNoReltdSym Required
BidTyp nsA:BidTyp Required
NumTkts nsA:NumTkts Optional
Ccy nsA:Ccy Optional
SideValu1 nsA:SideValu1 Optional
SideValu2 nsA:SideValu2 Optional
LqdtyIndTyp nsA:LqdtyIndTyp Optional
WtAvgLqdty nsA:WtAvgLqdty Optional
EFP nsA:EFP Optional
OutMainCntryUNdx nsA:OutMainCntryUNdx Optional
CrssPct nsA:CrssPct Optional
ProgRptReqs nsA:ProgRptReqs Optional
ProgPeriodIntvl nsA:ProgPeriodIntvl Optional
IncTaxInd nsA:IncTaxInd Optional
ForexReq nsA:ForexReq Optional
NumBidders nsA:NumBidders Optional
TrdDt nsA:TrdDt Optional
BidTrdTyp nsA:BidTrdTyp Required
BasisPxTyp nsA:BasisPxTyp Required
StrkTm nsA:StrkTm Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:Message
