Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: CrossOrderCancelRequest_message_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:Abstract_message_t
Containing Schema: fixml-crossorders-base-4-4.xsd
Abstract
Documentation:
CrossOrderCancelRequest can be found in Volume4 of the specification

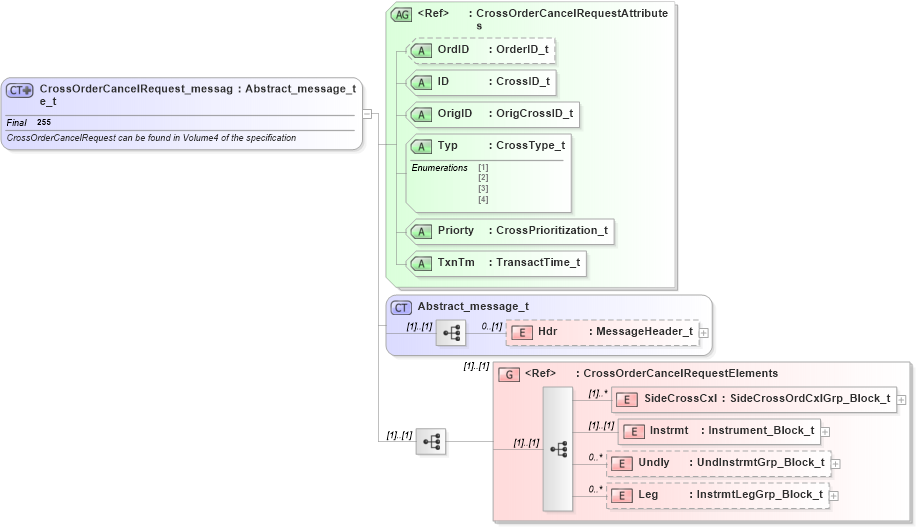

Collapse XSD Schema Diagram:
Drilldown into Leg in schema fixml-crossorders-base-4-4_xsd Drilldown into Undly in schema fixml-crossorders-base-4-4_xsd Drilldown into Instrmt in schema fixml-crossorders-base-4-4_xsd Drilldown into SideCrossCxl in schema fixml-crossorders-base-4-4_xsd Drilldown into CrossOrderCancelRequestElements in schema fixml-crossorders-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into TxnTm in schema fixml-crossorders-base-4-4_xsd Drilldown into Priorty in schema fixml-crossorders-base-4-4_xsd Drilldown into Typ in schema fixml-crossorders-base-4-4_xsd Drilldown into OrigID in schema fixml-crossorders-base-4-4_xsd Drilldown into ID in schema fixml-crossorders-base-4-4_xsd Drilldown into OrdID in schema fixml-crossorders-base-4-4_xsd Drilldown into CrossOrderCancelRequestAttributes in schema fixml-crossorders-base-4-4_xsdXSD Diagram of CrossOrderCancelRequest_message_t in schema fixml-crossorders-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="CrossOrderCancelRequest_message_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">CrossOrderCancelRequest can be found in Volume4 of the specification
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="CrossOrderCancelRequest" ComponentType="Message" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="Abstract_message_t">
            <xs:sequence>
                <xs:group ref="CrossOrderCancelRequestElements" />
            </xs:sequence>
            <xs:attributeGroup ref="CrossOrderCancelRequestAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
SideCrossCxl nsA:SideCrossCxl (1) unbounded
Instrmt nsA:Instrmt (1) (1)
Undly nsA:Undly 0 unbounded
Leg nsA:Leg 0 unbounded
<xs:group> nsA:CrossOrderCancelRequestElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
OrdID nsA:OrdID Optional
ID nsA:ID Required
OrigID nsA:OrigID Required
Typ nsA:Typ Required
Priorty nsA:Priorty Required
TxnTm nsA:TxnTm Required
Collapse Derivation Tree:
Collapse References:
nsA:CrssOrdCxlReq
