Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: MktDataReq
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:MarketDataRequest_message_t
Containing Schema: fixml-marketdata-base-4-4.xsd
Abstract

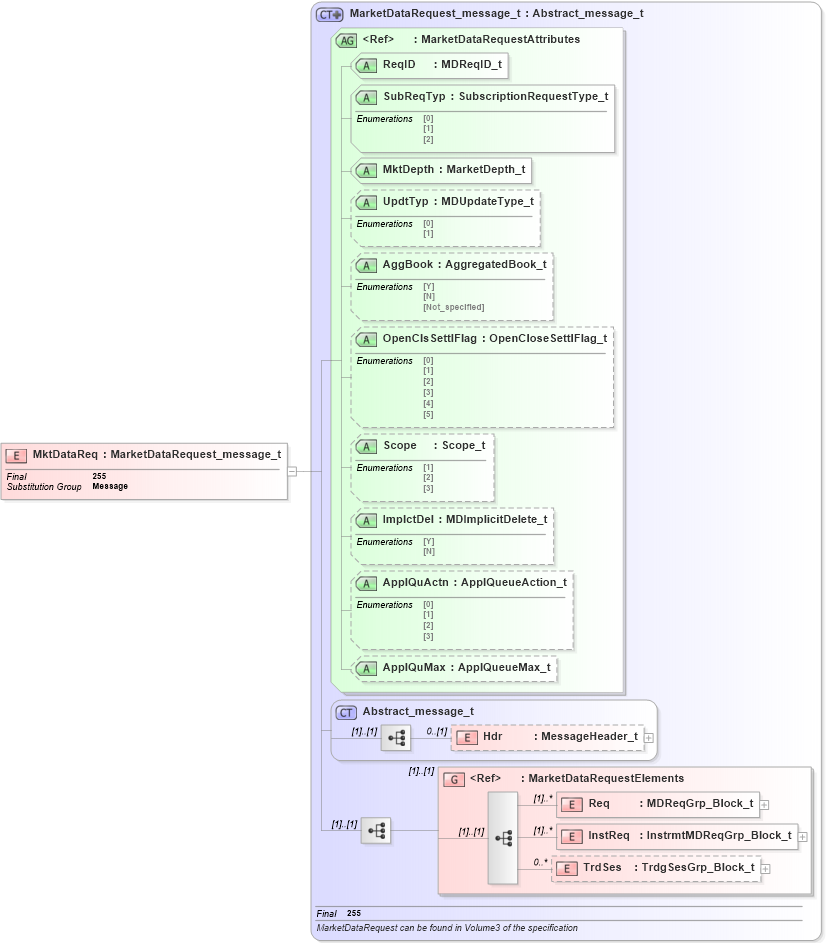

Collapse XSD Schema Diagram:
Drilldown into TrdSes in schema fixml-marketdata-base-4-4_xsd Drilldown into InstReq in schema fixml-marketdata-base-4-4_xsd Drilldown into Req in schema fixml-marketdata-base-4-4_xsd Drilldown into MarketDataRequestElements in schema fixml-marketdata-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into ApplQuMax in schema fixml-marketdata-base-4-4_xsd Drilldown into ApplQuActn in schema fixml-marketdata-base-4-4_xsd Drilldown into ImplctDel in schema fixml-marketdata-base-4-4_xsd Drilldown into Scope in schema fixml-marketdata-base-4-4_xsd Drilldown into OpenClsSettlFlag in schema fixml-marketdata-base-4-4_xsd Drilldown into AggBook in schema fixml-marketdata-base-4-4_xsd Drilldown into UpdtTyp in schema fixml-marketdata-base-4-4_xsd Drilldown into MktDepth in schema fixml-marketdata-base-4-4_xsd Drilldown into SubReqTyp in schema fixml-marketdata-base-4-4_xsd Drilldown into ReqID in schema fixml-marketdata-base-4-4_xsd Drilldown into MarketDataRequestAttributes in schema fixml-marketdata-base-4-4_xsd Drilldown into MarketDataRequest_message_t in schema fixml-marketdata-base-4-4_xsdXSD Diagram of MktDataReq in schema fixml-marketdata-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="MktDataReq" type="MarketDataRequest_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Req nsA:Req (1) unbounded
InstReq nsA:InstReq (1) unbounded
TrdSes nsA:TrdSes 0 unbounded
<xs:group> nsA:MarketDataRequestElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ReqID nsA:ReqID Required
SubReqTyp nsA:SubReqTyp Required
MktDepth nsA:MktDepth Required
UpdtTyp nsA:UpdtTyp Optional
AggBook nsA:AggBook Optional
OpenClsSettlFlag nsA:OpenClsSettlFlag Optional
Scope nsA:Scope Optional
ImplctDel nsA:ImplctDel Optional
ApplQuActn nsA:ApplQuActn Optional
ApplQuMax nsA:ApplQuMax Optional
Collapse Derivation Tree:
Collapse References:
nsA:Message
