Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: NewOrdMleg
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:NewOrderMultileg_message_t
Containing Schema: fixml-multilegorders-base-4-4.xsd
Abstract

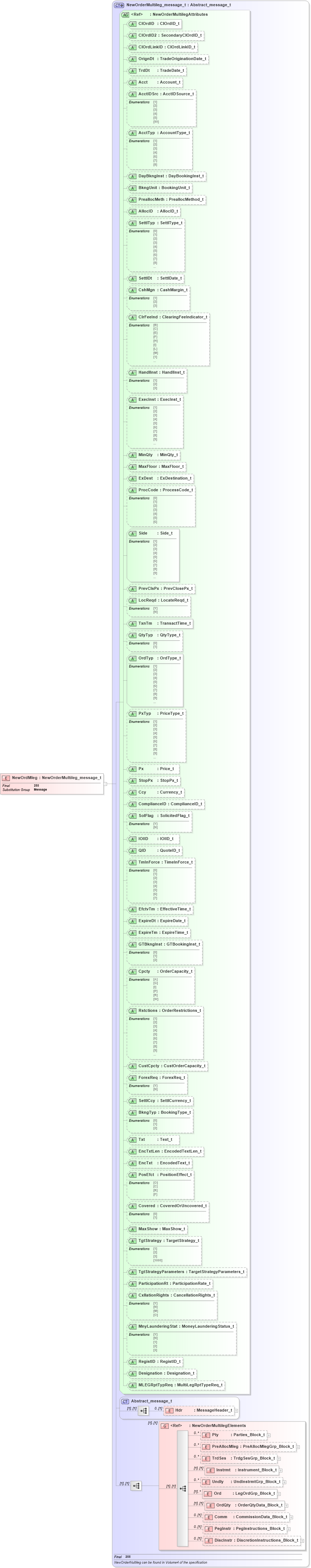

Collapse XSD Schema Diagram:
Drilldown into DiscInstr in schema fixml-multilegorders-base-4-4_xsd Drilldown into PegInstr in schema fixml-multilegorders-base-4-4_xsd Drilldown into Comm in schema fixml-multilegorders-base-4-4_xsd Drilldown into OrdQty in schema fixml-multilegorders-base-4-4_xsd Drilldown into Ord in schema fixml-multilegorders-base-4-4_xsd Drilldown into Undly in schema fixml-multilegorders-base-4-4_xsd Drilldown into Instrmt in schema fixml-multilegorders-base-4-4_xsd Drilldown into TrdSes in schema fixml-multilegorders-base-4-4_xsd Drilldown into PreAllocMleg in schema fixml-multilegorders-base-4-4_xsd Drilldown into Pty in schema fixml-multilegorders-base-4-4_xsd Drilldown into NewOrderMultilegElements in schema fixml-multilegorders-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into MLEGRptTypReq in schema fixml-multilegorders-base-4-4_xsd Drilldown into Designation in schema fixml-multilegorders-base-4-4_xsd Drilldown into RegistID in schema fixml-multilegorders-base-4-4_xsd Drilldown into MnyLaunderingStat in schema fixml-multilegorders-base-4-4_xsd Drilldown into CxllationRights in schema fixml-multilegorders-base-4-4_xsd Drilldown into ParticipationRt in schema fixml-multilegorders-base-4-4_xsd Drilldown into TgtStrategyParameters in schema fixml-multilegorders-base-4-4_xsd Drilldown into TgtStrategy in schema fixml-multilegorders-base-4-4_xsd Drilldown into MaxShow in schema fixml-multilegorders-base-4-4_xsd Drilldown into Covered in schema fixml-multilegorders-base-4-4_xsd Drilldown into PosEfct in schema fixml-multilegorders-base-4-4_xsd Drilldown into EncTxt in schema fixml-multilegorders-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-multilegorders-base-4-4_xsd Drilldown into Txt in schema fixml-multilegorders-base-4-4_xsd Drilldown into BkngTyp in schema fixml-multilegorders-base-4-4_xsd Drilldown into SettlCcy in schema fixml-multilegorders-base-4-4_xsd Drilldown into ForexReq in schema fixml-multilegorders-base-4-4_xsd Drilldown into CustCpcty in schema fixml-multilegorders-base-4-4_xsd Drilldown into Rstctions in schema fixml-multilegorders-base-4-4_xsd Drilldown into Cpcty in schema fixml-multilegorders-base-4-4_xsd Drilldown into GTBkngInst in schema fixml-multilegorders-base-4-4_xsd Drilldown into ExpireTm in schema fixml-multilegorders-base-4-4_xsd Drilldown into ExpireDt in schema fixml-multilegorders-base-4-4_xsd Drilldown into EfctvTm in schema fixml-multilegorders-base-4-4_xsd Drilldown into TmInForce in schema fixml-multilegorders-base-4-4_xsd Drilldown into QID in schema fixml-multilegorders-base-4-4_xsd Drilldown into IOIID in schema fixml-multilegorders-base-4-4_xsd Drilldown into SolFlag in schema fixml-multilegorders-base-4-4_xsd Drilldown into ComplianceID in schema fixml-multilegorders-base-4-4_xsd Drilldown into Ccy in schema fixml-multilegorders-base-4-4_xsd Drilldown into StopPx in schema fixml-multilegorders-base-4-4_xsd Drilldown into Px in schema fixml-multilegorders-base-4-4_xsd Drilldown into PxTyp in schema fixml-multilegorders-base-4-4_xsd Drilldown into OrdTyp in schema fixml-multilegorders-base-4-4_xsd Drilldown into QtyTyp in schema fixml-multilegorders-base-4-4_xsd Drilldown into TxnTm in schema fixml-multilegorders-base-4-4_xsd Drilldown into LocReqd in schema fixml-multilegorders-base-4-4_xsd Drilldown into PrevClsPx in schema fixml-multilegorders-base-4-4_xsd Drilldown into Side in schema fixml-multilegorders-base-4-4_xsd Drilldown into ProcCode in schema fixml-multilegorders-base-4-4_xsd Drilldown into ExDest in schema fixml-multilegorders-base-4-4_xsd Drilldown into MaxFloor in schema fixml-multilegorders-base-4-4_xsd Drilldown into MinQty in schema fixml-multilegorders-base-4-4_xsd Drilldown into ExecInst in schema fixml-multilegorders-base-4-4_xsd Drilldown into HandlInst in schema fixml-multilegorders-base-4-4_xsd Drilldown into ClrFeeInd in schema fixml-multilegorders-base-4-4_xsd Drilldown into CshMgn in schema fixml-multilegorders-base-4-4_xsd Drilldown into SettlDt in schema fixml-multilegorders-base-4-4_xsd Drilldown into SettlTyp in schema fixml-multilegorders-base-4-4_xsd Drilldown into AllocID in schema fixml-multilegorders-base-4-4_xsd Drilldown into PreallocMeth in schema fixml-multilegorders-base-4-4_xsd Drilldown into BkngUnit in schema fixml-multilegorders-base-4-4_xsd Drilldown into DayBkngInst in schema fixml-multilegorders-base-4-4_xsd Drilldown into AcctTyp in schema fixml-multilegorders-base-4-4_xsd Drilldown into AcctIDSrc in schema fixml-multilegorders-base-4-4_xsd Drilldown into Acct in schema fixml-multilegorders-base-4-4_xsd Drilldown into TrdDt in schema fixml-multilegorders-base-4-4_xsd Drilldown into OrignDt in schema fixml-multilegorders-base-4-4_xsd Drilldown into ClOrdLinkID in schema fixml-multilegorders-base-4-4_xsd Drilldown into ClOrdID2 in schema fixml-multilegorders-base-4-4_xsd Drilldown into ClOrdID in schema fixml-multilegorders-base-4-4_xsd Drilldown into NewOrderMultilegAttributes in schema fixml-multilegorders-base-4-4_xsd Drilldown into NewOrderMultileg_message_t in schema fixml-multilegorders-base-4-4_xsdXSD Diagram of NewOrdMleg in schema fixml-multilegorders-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="NewOrdMleg" type="NewOrderMultileg_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Pty nsA:Pty 0 unbounded
PreAllocMleg nsA:PreAllocMleg 0 unbounded
TrdSes nsA:TrdSes 0 unbounded
Instrmt nsA:Instrmt (1) (1)
Undly nsA:Undly 0 unbounded
Ord nsA:Ord (1) unbounded
OrdQty nsA:OrdQty (1) (1)
Comm nsA:Comm 0 (1)
PegInstr nsA:PegInstr 0 (1)
DiscInstr nsA:DiscInstr 0 (1)
<xs:group> nsA:NewOrderMultilegElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ClOrdID nsA:ClOrdID Required
ClOrdID2 nsA:ClOrdID2 Optional
ClOrdLinkID nsA:ClOrdLinkID Optional
OrignDt nsA:OrignDt Optional
TrdDt nsA:TrdDt Optional
Acct nsA:Acct Optional
AcctIDSrc nsA:AcctIDSrc Optional
AcctTyp nsA:AcctTyp Optional
DayBkngInst nsA:DayBkngInst Optional
BkngUnit nsA:BkngUnit Optional
PreallocMeth nsA:PreallocMeth Optional
AllocID nsA:AllocID Optional
SettlTyp nsA:SettlTyp Optional
SettlDt nsA:SettlDt Optional
CshMgn nsA:CshMgn Optional
ClrFeeInd nsA:ClrFeeInd Optional
HandlInst nsA:HandlInst Optional
ExecInst nsA:ExecInst Optional
MinQty nsA:MinQty Optional
MaxFloor nsA:MaxFloor Optional
ExDest nsA:ExDest Optional
ProcCode nsA:ProcCode Optional
Side nsA:Side Required
PrevClsPx nsA:PrevClsPx Optional
LocReqd nsA:LocReqd Optional
TxnTm nsA:TxnTm Required
QtyTyp nsA:QtyTyp Optional
OrdTyp nsA:OrdTyp Required
PxTyp nsA:PxTyp Optional
Px nsA:Px Optional
StopPx nsA:StopPx Optional
Ccy nsA:Ccy Optional
ComplianceID nsA:ComplianceID Optional
SolFlag nsA:SolFlag Optional
IOIID nsA:IOIID Optional
QID nsA:QID Optional
TmInForce nsA:TmInForce Optional
EfctvTm nsA:EfctvTm Optional
ExpireDt nsA:ExpireDt Optional
ExpireTm nsA:ExpireTm Optional
GTBkngInst nsA:GTBkngInst Optional
Cpcty nsA:Cpcty Optional
Rstctions nsA:Rstctions Optional
CustCpcty nsA:CustCpcty Optional
ForexReq nsA:ForexReq Optional
SettlCcy nsA:SettlCcy Optional
BkngTyp nsA:BkngTyp Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
PosEfct nsA:PosEfct Optional
Covered nsA:Covered Optional
MaxShow nsA:MaxShow Optional
TgtStrategy nsA:TgtStrategy Optional
TgtStrategyParameters nsA:TgtStrategyParameters Optional
ParticipationRt nsA:ParticipationRt Optional
CxllationRights nsA:CxllationRights Optional
MnyLaunderingStat nsA:MnyLaunderingStat Optional
RegistID nsA:RegistID Optional
Designation nsA:Designation Optional
MLEGRptTypReq nsA:MLEGRptTypReq Optional
Collapse Derivation Tree:
Collapse References:
nsA:Message
