Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: OrderMassCancelReport_message_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:Abstract_message_t
Containing Schema: fixml-order-base-4-4.xsd
Abstract
Documentation:
OrderMassCancelReport can be found in Volume4 of the specification

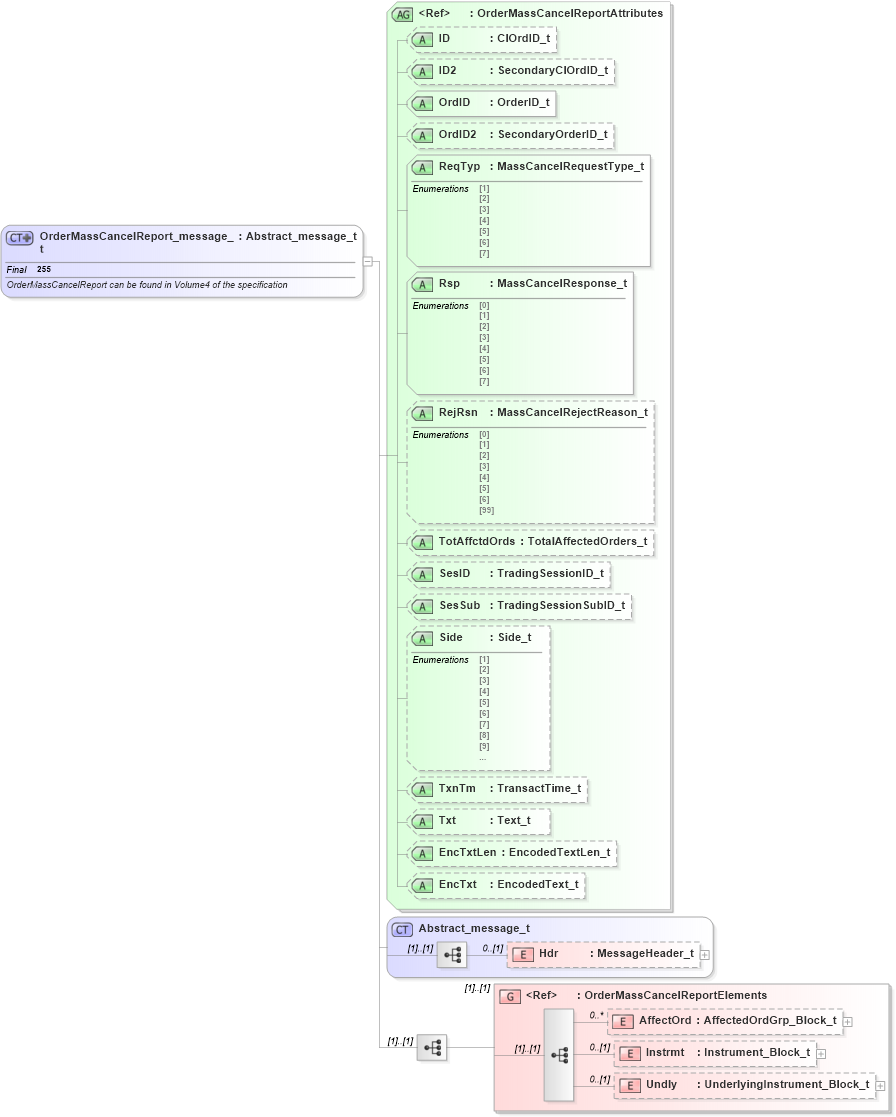

Collapse XSD Schema Diagram:
Drilldown into Undly in schema fixml-order-base-4-4_xsd Drilldown into Instrmt in schema fixml-order-base-4-4_xsd Drilldown into AffectOrd in schema fixml-order-base-4-4_xsd Drilldown into OrderMassCancelReportElements in schema fixml-order-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into EncTxt in schema fixml-order-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-order-base-4-4_xsd Drilldown into Txt in schema fixml-order-base-4-4_xsd Drilldown into TxnTm in schema fixml-order-base-4-4_xsd Drilldown into Side in schema fixml-order-base-4-4_xsd Drilldown into SesSub in schema fixml-order-base-4-4_xsd Drilldown into SesID in schema fixml-order-base-4-4_xsd Drilldown into TotAffctdOrds in schema fixml-order-base-4-4_xsd Drilldown into RejRsn in schema fixml-order-base-4-4_xsd Drilldown into Rsp in schema fixml-order-base-4-4_xsd Drilldown into ReqTyp in schema fixml-order-base-4-4_xsd Drilldown into OrdID2 in schema fixml-order-base-4-4_xsd Drilldown into OrdID in schema fixml-order-base-4-4_xsd Drilldown into ID2 in schema fixml-order-base-4-4_xsd Drilldown into ID in schema fixml-order-base-4-4_xsd Drilldown into OrderMassCancelReportAttributes in schema fixml-order-base-4-4_xsdXSD Diagram of OrderMassCancelReport_message_t in schema fixml-order-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="OrderMassCancelReport_message_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">OrderMassCancelReport can be found in Volume4 of the specification
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="OrderMassCancelReport" ComponentType="Message" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="Abstract_message_t">
            <xs:sequence>
                <xs:group ref="OrderMassCancelReportElements" />
            </xs:sequence>
            <xs:attributeGroup ref="OrderMassCancelReportAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
AffectOrd nsA:AffectOrd 0 unbounded
Instrmt nsA:Instrmt 0 (1)
Undly nsA:Undly 0 (1)
<xs:group> nsA:OrderMassCancelReportElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ID nsA:ID Optional
ID2 nsA:ID2 Optional
OrdID nsA:OrdID Required
OrdID2 nsA:OrdID2 Optional
ReqTyp nsA:ReqTyp Required
Rsp nsA:Rsp Required
RejRsn nsA:RejRsn Optional
TotAffctdOrds nsA:TotAffctdOrds Optional
SesID nsA:SesID Optional
SesSub nsA:SesSub Optional
Side nsA:Side Optional
TxnTm nsA:TxnTm Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:OrdMassCxlRpt
