Definition Type: ComplexType
Name: RFQReqGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-quotation-base-4-4.xsd
Abstract
Documentation:
RFQReqGrp is a component

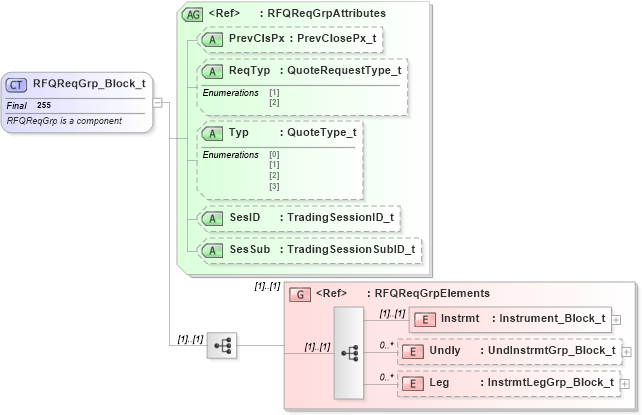

Collapse XSD Schema Diagram:
Drilldown into Leg in schema fixml-quotation-base-4-4_xsd Drilldown into Undly in schema fixml-quotation-base-4-4_xsd Drilldown into Instrmt in schema fixml-quotation-base-4-4_xsd Drilldown into RFQReqGrpElements in schema fixml-quotation-base-4-4_xsd Drilldown into SesSub in schema fixml-quotation-base-4-4_xsd Drilldown into SesID in schema fixml-quotation-base-4-4_xsd Drilldown into Typ in schema fixml-quotation-base-4-4_xsd Drilldown into ReqTyp in schema fixml-quotation-base-4-4_xsd Drilldown into PrevClsPx in schema fixml-quotation-base-4-4_xsd Drilldown into RFQReqGrpAttributes in schema fixml-quotation-base-4-4_xsdXSD Diagram of RFQReqGrp_Block_t in schema fixml-quotation-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="RFQReqGrp_Block_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">RFQReqGrp is a component
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="RFQReqGrp" ComponentType="ImplicitBlockRepeating" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="RFQReqGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="RFQReqGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Instrmt nsA:Instrmt (1) (1)
Undly nsA:Undly 0 unbounded
Leg nsA:Leg 0 unbounded
<xs:group> nsA:RFQReqGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
PrevClsPx nsA:PrevClsPx Optional
ReqTyp nsA:ReqTyp Optional
Typ nsA:Typ Optional
SesID nsA:SesID Optional
SesSub nsA:SesSub Optional
Collapse Derivation Tree:
Collapse References:
nsA:RFQReq
