Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: SettlementInstructions_message_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:Abstract_message_t
Containing Schema: fixml-settlement-base-4-4.xsd
Abstract
Documentation:
SettlementInstructions can be found in Volume5 of the specification

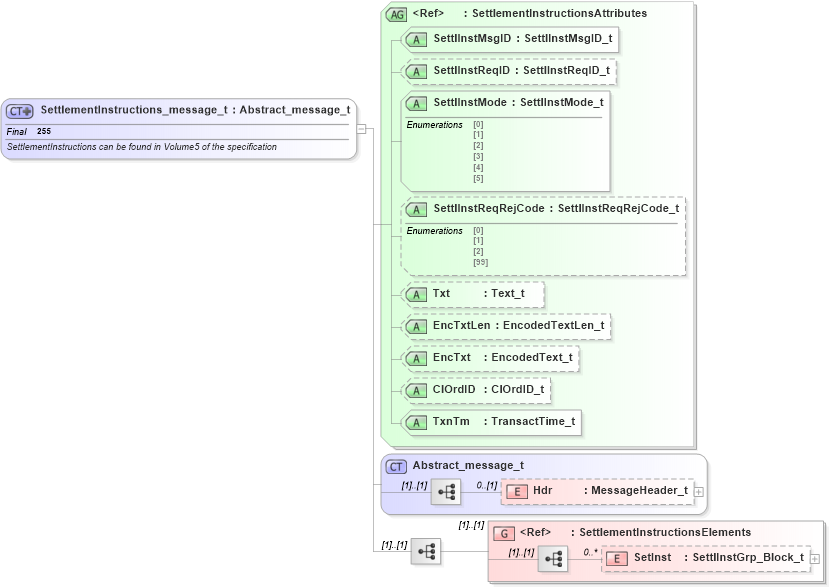

Collapse XSD Schema Diagram:
Drilldown into SetInst in schema fixml-settlement-base-4-4_xsd Drilldown into SettlementInstructionsElements in schema fixml-settlement-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into TxnTm in schema fixml-settlement-base-4-4_xsd Drilldown into ClOrdID in schema fixml-settlement-base-4-4_xsd Drilldown into EncTxt in schema fixml-settlement-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-settlement-base-4-4_xsd Drilldown into Txt in schema fixml-settlement-base-4-4_xsd Drilldown into SettlInstReqRejCode in schema fixml-settlement-base-4-4_xsd Drilldown into SettlInstMode in schema fixml-settlement-base-4-4_xsd Drilldown into SettlInstReqID in schema fixml-settlement-base-4-4_xsd Drilldown into SettlInstMsgID in schema fixml-settlement-base-4-4_xsd Drilldown into SettlementInstructionsAttributes in schema fixml-settlement-base-4-4_xsdXSD Diagram of SettlementInstructions_message_t in schema fixml-settlement-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="SettlementInstructions_message_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">SettlementInstructions can be found in Volume5 of the specification
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="SettlementInstructions" ComponentType="Message" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="Abstract_message_t">
            <xs:sequence>
                <xs:group ref="SettlementInstructionsElements" />
            </xs:sequence>
            <xs:attributeGroup ref="SettlementInstructionsAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
SetInst nsA:SetInst 0 unbounded
<xs:group> nsA:SettlementInstructionsElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
SettlInstMsgID nsA:SettlInstMsgID Required
SettlInstReqID nsA:SettlInstReqID Optional
SettlInstMode nsA:SettlInstMode Required
SettlInstReqRejCode nsA:SettlInstReqRejCode Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
ClOrdID nsA:ClOrdID Optional
TxnTm nsA:TxnTm Required
Collapse Derivation Tree:
Collapse References:
nsA:SettlInstrctns
