Definition Type: Element
Name: SettlInstrctns
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:SettlementInstructions_message_t
Containing Schema: fixml-settlement-base-4-4.xsd
Abstract

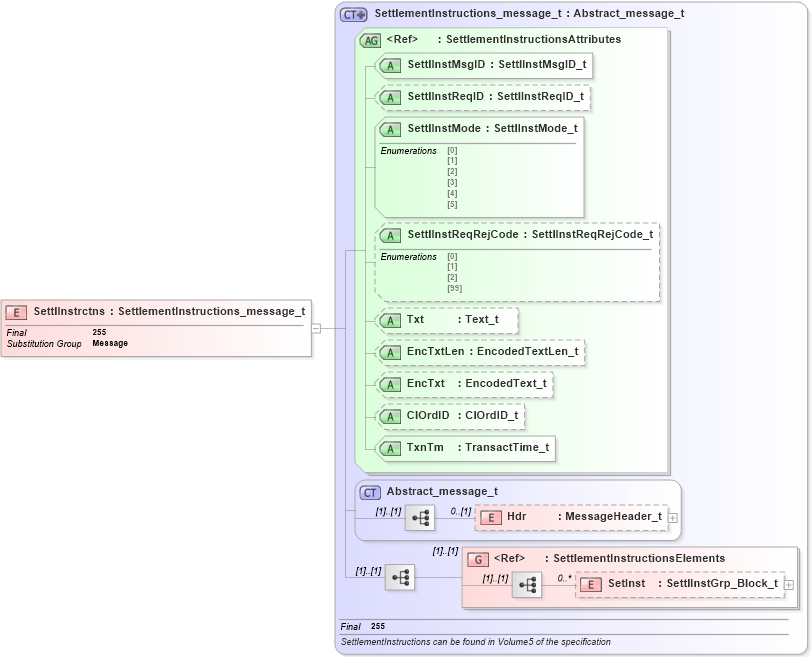

Collapse XSD Schema Diagram:
Drilldown into SetInst in schema fixml-settlement-base-4-4_xsd Drilldown into SettlementInstructionsElements in schema fixml-settlement-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into TxnTm in schema fixml-settlement-base-4-4_xsd Drilldown into ClOrdID in schema fixml-settlement-base-4-4_xsd Drilldown into EncTxt in schema fixml-settlement-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-settlement-base-4-4_xsd Drilldown into Txt in schema fixml-settlement-base-4-4_xsd Drilldown into SettlInstReqRejCode in schema fixml-settlement-base-4-4_xsd Drilldown into SettlInstMode in schema fixml-settlement-base-4-4_xsd Drilldown into SettlInstReqID in schema fixml-settlement-base-4-4_xsd Drilldown into SettlInstMsgID in schema fixml-settlement-base-4-4_xsd Drilldown into SettlementInstructionsAttributes in schema fixml-settlement-base-4-4_xsd Drilldown into SettlementInstructions_message_t in schema fixml-settlement-base-4-4_xsdXSD Diagram of SettlInstrctns in schema fixml-settlement-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="SettlInstrctns" type="SettlementInstructions_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
SetInst nsA:SetInst 0 unbounded
<xs:group> nsA:SettlementInstructionsElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
SettlInstMsgID nsA:SettlInstMsgID Required
SettlInstReqID nsA:SettlInstReqID Optional
SettlInstMode nsA:SettlInstMode Required
SettlInstReqRejCode nsA:SettlInstReqRejCode Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
ClOrdID nsA:ClOrdID Optional
TxnTm nsA:TxnTm Required
Collapse Derivation Tree:
Collapse References:
nsA:Message
