Definition Type: Element
Name: TrdCaptRptAck
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:TradeCaptureReportAck_message_t
Containing Schema: fixml-tradecapture-base-4-4.xsd
Abstract

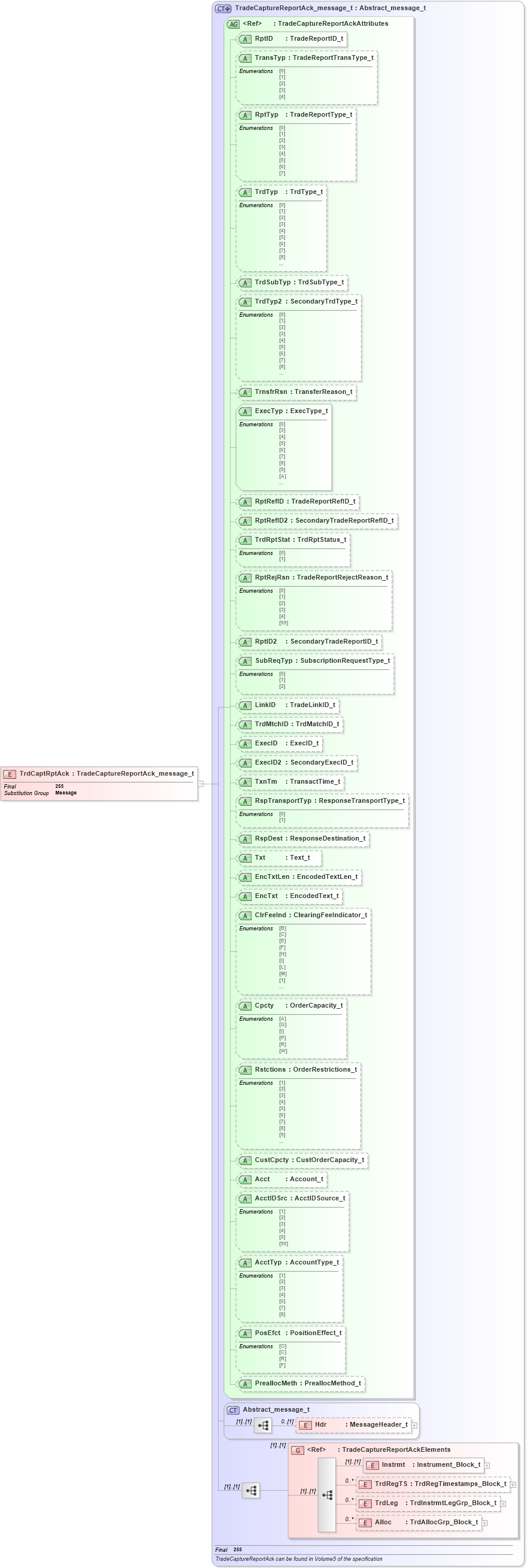

Collapse XSD Schema Diagram:
Drilldown into Alloc in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrdLeg in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrdRegTS in schema fixml-tradecapture-base-4-4_xsd Drilldown into Instrmt in schema fixml-tradecapture-base-4-4_xsd Drilldown into TradeCaptureReportAckElements in schema fixml-tradecapture-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into PreallocMeth in schema fixml-tradecapture-base-4-4_xsd Drilldown into PosEfct in schema fixml-tradecapture-base-4-4_xsd Drilldown into AcctTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into AcctIDSrc in schema fixml-tradecapture-base-4-4_xsd Drilldown into Acct in schema fixml-tradecapture-base-4-4_xsd Drilldown into CustCpcty in schema fixml-tradecapture-base-4-4_xsd Drilldown into Rstctions in schema fixml-tradecapture-base-4-4_xsd Drilldown into Cpcty in schema fixml-tradecapture-base-4-4_xsd Drilldown into ClrFeeInd in schema fixml-tradecapture-base-4-4_xsd Drilldown into EncTxt in schema fixml-tradecapture-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-tradecapture-base-4-4_xsd Drilldown into Txt in schema fixml-tradecapture-base-4-4_xsd Drilldown into RspDest in schema fixml-tradecapture-base-4-4_xsd Drilldown into RspTransportTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into TxnTm in schema fixml-tradecapture-base-4-4_xsd Drilldown into ExecID2 in schema fixml-tradecapture-base-4-4_xsd Drilldown into ExecID in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrdMtchID in schema fixml-tradecapture-base-4-4_xsd Drilldown into LinkID in schema fixml-tradecapture-base-4-4_xsd Drilldown into SubReqTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into RptID2 in schema fixml-tradecapture-base-4-4_xsd Drilldown into RptRejRsn in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrdRptStat in schema fixml-tradecapture-base-4-4_xsd Drilldown into RptRefID2 in schema fixml-tradecapture-base-4-4_xsd Drilldown into RptRefID in schema fixml-tradecapture-base-4-4_xsd Drilldown into ExecTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrnsfrRsn in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrdTyp2 in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrdSubTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrdTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into RptTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into TransTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into RptID in schema fixml-tradecapture-base-4-4_xsd Drilldown into TradeCaptureReportAckAttributes in schema fixml-tradecapture-base-4-4_xsd Drilldown into TradeCaptureReportAck_message_t in schema fixml-tradecapture-base-4-4_xsdXSD Diagram of TrdCaptRptAck in schema fixml-tradecapture-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="TrdCaptRptAck" type="TradeCaptureReportAck_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Instrmt nsA:Instrmt (1) (1)
TrdRegTS nsA:TrdRegTS 0 unbounded
TrdLeg nsA:TrdLeg 0 unbounded
Alloc nsA:Alloc 0 unbounded
<xs:group> nsA:TradeCaptureReportAckElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
RptID nsA:RptID Required
TransTyp nsA:TransTyp Optional
RptTyp nsA:RptTyp Optional
TrdTyp nsA:TrdTyp Optional
TrdSubTyp nsA:TrdSubTyp Optional
TrdTyp2 nsA:TrdTyp2 Optional
TrnsfrRsn nsA:TrnsfrRsn Optional
ExecTyp nsA:ExecTyp Required
RptRefID nsA:RptRefID Optional
RptRefID2 nsA:RptRefID2 Optional
TrdRptStat nsA:TrdRptStat Optional
RptRejRsn nsA:RptRejRsn Optional
RptID2 nsA:RptID2 Optional
SubReqTyp nsA:SubReqTyp Optional
LinkID nsA:LinkID Optional
TrdMtchID nsA:TrdMtchID Optional
ExecID nsA:ExecID Optional
ExecID2 nsA:ExecID2 Optional
TxnTm nsA:TxnTm Optional
RspTransportTyp nsA:RspTransportTyp Optional
RspDest nsA:RspDest Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
ClrFeeInd nsA:ClrFeeInd Optional
Cpcty nsA:Cpcty Optional
Rstctions nsA:Rstctions Optional
CustCpcty nsA:CustCpcty Optional
Acct nsA:Acct Optional
AcctIDSrc nsA:AcctIDSrc Optional
AcctTyp nsA:AcctTyp Optional
PosEfct nsA:PosEfct Optional
PreallocMeth nsA:PreallocMeth Optional
Collapse Derivation Tree:
Collapse References:
nsA:Message
