Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: TrdgSesStatReq
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:TradingSessionStatusRequest_message_t
Containing Schema: fixml-securitystatus-base-4-4.xsd
Abstract

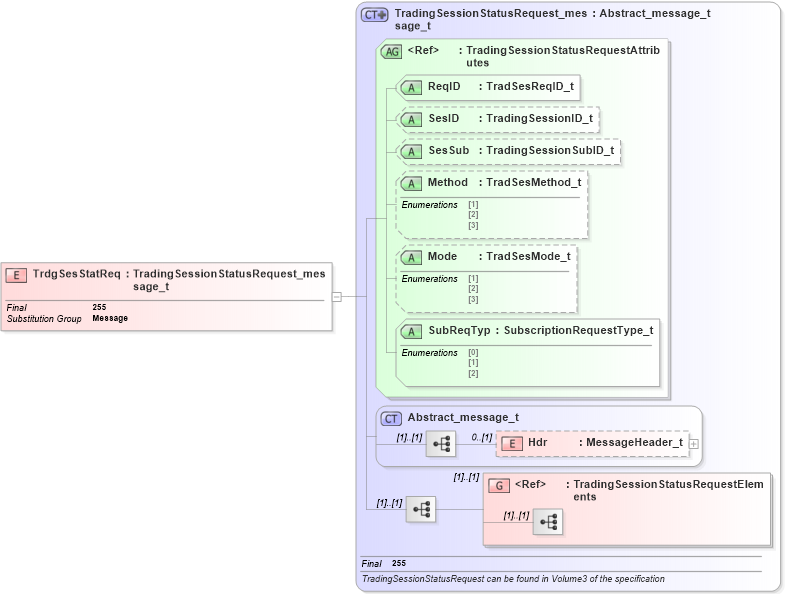

Collapse XSD Schema Diagram:
Drilldown into TradingSessionStatusRequestElements in schema fixml-securitystatus-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into SubReqTyp in schema fixml-securitystatus-base-4-4_xsd Drilldown into Mode in schema fixml-securitystatus-base-4-4_xsd Drilldown into Method in schema fixml-securitystatus-base-4-4_xsd Drilldown into SesSub in schema fixml-securitystatus-base-4-4_xsd Drilldown into SesID in schema fixml-securitystatus-base-4-4_xsd Drilldown into ReqID in schema fixml-securitystatus-base-4-4_xsd Drilldown into TradingSessionStatusRequestAttributes in schema fixml-securitystatus-base-4-4_xsd Drilldown into TradingSessionStatusRequest_message_t in schema fixml-securitystatus-base-4-4_xsdXSD Diagram of TrdgSesStatReq in schema fixml-securitystatus-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="TrdgSesStatReq" type="TradingSessionStatusRequest_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
<xs:group> nsA:TradingSessionStatusRequestElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ReqID nsA:ReqID Required
SesID nsA:SesID Optional
SesSub nsA:SesSub Optional
Method nsA:Method Optional
Mode nsA:Mode Optional
SubReqTyp nsA:SubReqTyp Required
Collapse Derivation Tree:
Collapse References:
nsA:Message
