Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: CalculationPeriodAmount
Namespace: http://www.fpml.org/2007/FpML-4-4
Containing Schema: fpml-ird-4-4.xsd
Abstract
Documentation:
A type defining the parameters used in the calculation of fixed or floating rate calculation period amounts or for specifying a known calculation period amount or known amount schedule.

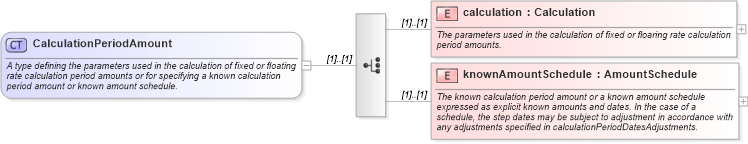

Collapse XSD Schema Diagram:
Drilldown into knownAmountSchedule in schema fpml-ird-4-4_xsd Drilldown into calculation in schema fpml-ird-4-4_xsdXSD Diagram of CalculationPeriodAmount in schema fpml-ird-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="CalculationPeriodAmount">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining the parameters used in the calculation of fixed or floating rate calculation period amounts or for specifying a known calculation period amount or known amount schedule.</xsd:documentation>
    </xsd:annotation>
    <xsd:choice>
        <xsd:element name="calculation" type="Calculation">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The parameters used in the calculation of fixed or floaring rate calculation period amounts.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="knownAmountSchedule" type="AmountSchedule">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The known calculation period amount or a known amount schedule expressed as explicit known amounts and dates. In the case of a schedule, the step dates may be subject to adjustment in accordance with any adjustments specified in calculationPeriodDatesAdjustments.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
calculation fpml:calculation (1) (1)
knownAmountSchedule fpml:knownAmountSchedule (1) (1)
Collapse Derivation Tree:
Collapse References:
fpml:calculationPeriodAmount
