Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: CorrelationLeg
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:DirectionalLegUnderlyerValuation
Containing Schema: fpml-correlation-swaps-4-4.xsd
Abstract
Documentation:
A type describing return which is driven by a Correlation calculation.

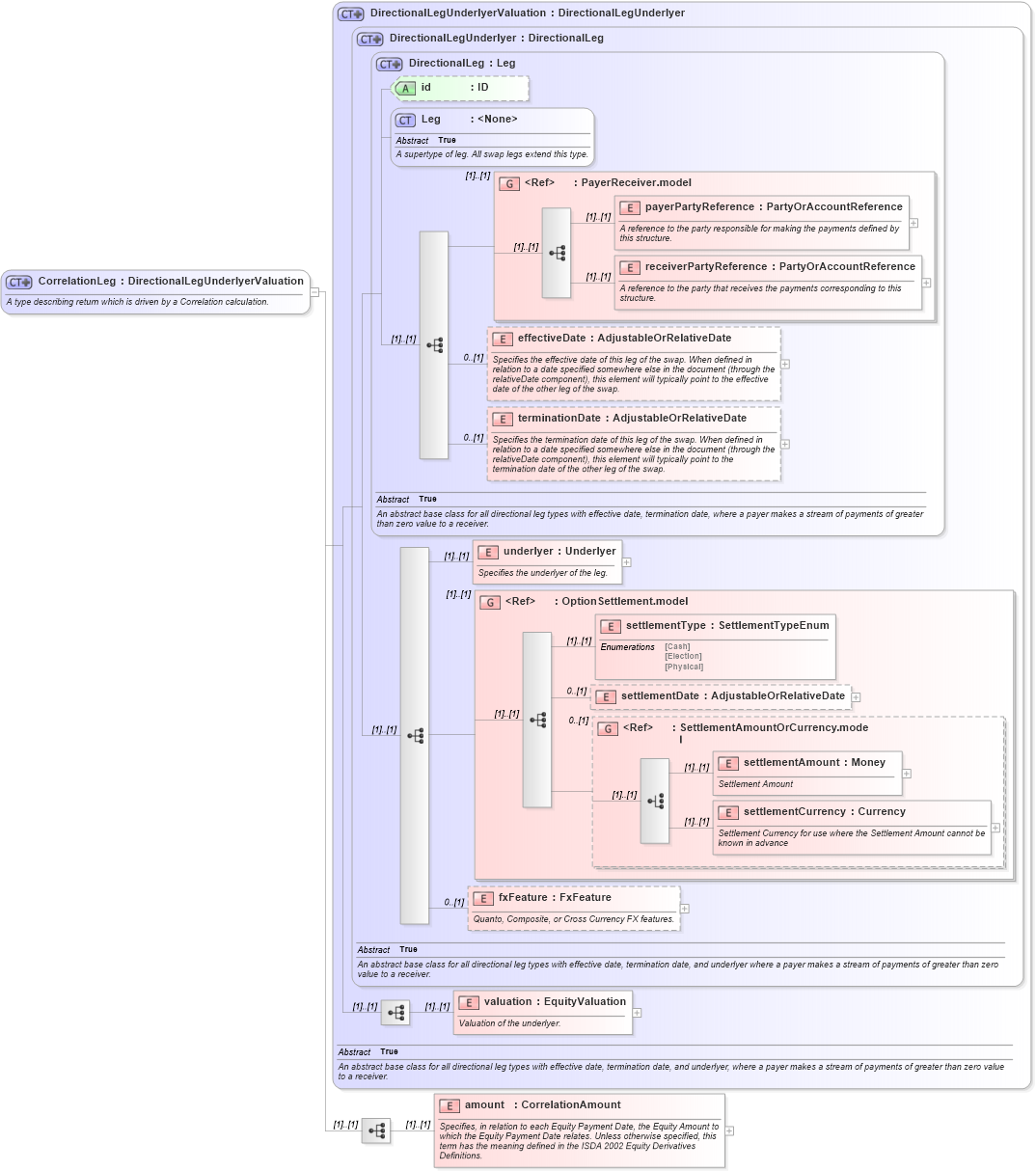

Collapse XSD Schema Diagram:
Drilldown into amount in schema fpml-correlation-swaps-4-4_xsd Drilldown into valuation in schema fpml-eq-shared-4-4_xsd Drilldown into fxFeature in schema fpml-eq-shared-4-4_xsd Drilldown into settlementCurrency in schema fpml-shared-4-4_xsd Drilldown into settlementAmount in schema fpml-shared-4-4_xsd Drilldown into SettlementAmountOrCurrency.model in schema fpml-shared-4-4_xsd Drilldown into settlementDate in schema fpml-option-shared-4-4_xsd Drilldown into settlementType in schema fpml-option-shared-4-4_xsd Drilldown into OptionSettlement.model in schema fpml-option-shared-4-4_xsd Drilldown into underlyer in schema fpml-eq-shared-4-4_xsd Drilldown into terminationDate in schema fpml-eq-shared-4-4_xsd Drilldown into effectiveDate in schema fpml-eq-shared-4-4_xsd Drilldown into receiverPartyReference in schema fpml-shared-4-4_xsd Drilldown into payerPartyReference in schema fpml-shared-4-4_xsd Drilldown into PayerReceiver.model in schema fpml-shared-4-4_xsd Drilldown into Leg in schema fpml-shared-4-4_xsd Drilldown into id in schema fpml-eq-shared-4-4_xsd Drilldown into DirectionalLeg in schema fpml-eq-shared-4-4_xsd Drilldown into DirectionalLegUnderlyer in schema fpml-eq-shared-4-4_xsd Drilldown into DirectionalLegUnderlyerValuation in schema fpml-eq-shared-4-4_xsdXSD Diagram of CorrelationLeg in schema fpml-correlation-swaps-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="CorrelationLeg">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type describing return which is driven by a Correlation calculation.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="DirectionalLegUnderlyerValuation">
            <xsd:sequence>
                <xsd:element name="amount" type="CorrelationAmount">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Specifies, in relation to each Equity Payment Date, the Equity Amount to which the Equity Payment Date relates. Unless otherwise specified, this term has the meaning defined in the ISDA 2002 Equity Derivatives Definitions.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference fpml:payerPartyReference (1) (1)
receiverPartyReference fpml:receiverPartyReference (1) (1)
effectiveDate fpml:effectiveDate 0 (1)
terminationDate fpml:terminationDate 0 (1)
underlyer fpml:underlyer (1) (1)
settlementType fpml:settlementType (1) (1)
settlementDate fpml:settlementDate 0 (1)
settlementAmount fpml:settlementAmount (1) (1)
settlementCurrency fpml:settlementCurrency (1) (1)
fxFeature fpml:fxFeature 0 (1)
valuation fpml:valuation (1) (1)
amount fpml:amount (1) (1)
<xs:group> fpml:PayerReceiver.model (1) (1)
<xs:group> fpml:OptionSettlement.model (1) (1)
<xs:group> fpml:SettlementAmountOrCurrency.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
Collapse References:
fpml:correlationLeg
