Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: CreditCurveValuation
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:PricingStructureValuation
Containing Schema: fpml-mktenv-4-4.xsd
Abstract
Documentation:
A set of credit curve values, which can include pricing inputs (which are typically credit spreads), default probabilities, and recovery rates.

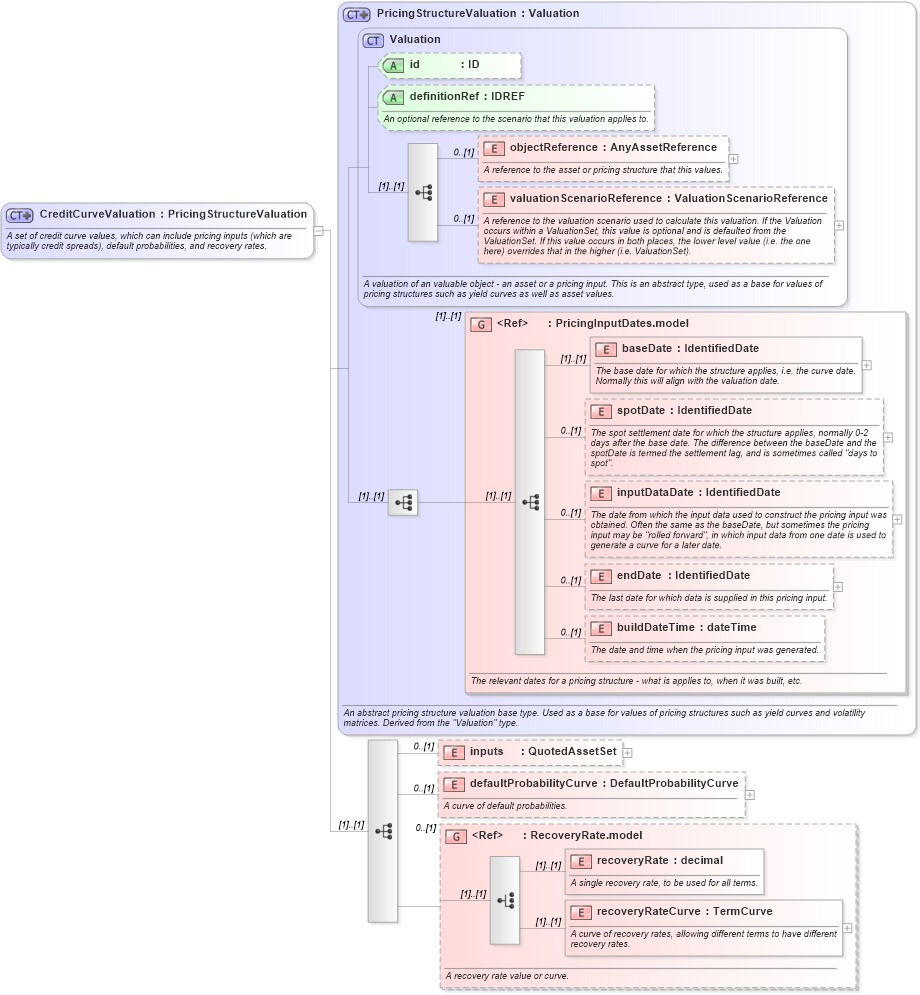

Collapse XSD Schema Diagram:
Drilldown into recoveryRateCurve in schema fpml-mktenv-4-4_xsd Drilldown into recoveryRate in schema fpml-mktenv-4-4_xsd Drilldown into RecoveryRate.model in schema fpml-mktenv-4-4_xsd Drilldown into defaultProbabilityCurve in schema fpml-mktenv-4-4_xsd Drilldown into inputs in schema fpml-mktenv-4-4_xsd Drilldown into buildDateTime in schema fpml-riskdef-4-4_xsd Drilldown into endDate in schema fpml-riskdef-4-4_xsd Drilldown into inputDataDate in schema fpml-riskdef-4-4_xsd Drilldown into spotDate in schema fpml-riskdef-4-4_xsd Drilldown into baseDate in schema fpml-riskdef-4-4_xsd Drilldown into PricingInputDates.model in schema fpml-riskdef-4-4_xsd Drilldown into valuationScenarioReference in schema fpml-riskdef-4-4_xsd Drilldown into objectReference in schema fpml-riskdef-4-4_xsd Drilldown into definitionRef in schema fpml-riskdef-4-4_xsd Drilldown into id in schema fpml-riskdef-4-4_xsd Drilldown into Valuation in schema fpml-riskdef-4-4_xsd Drilldown into PricingStructureValuation in schema fpml-riskdef-4-4_xsdXSD Diagram of CreditCurveValuation in schema fpml-mktenv-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="CreditCurveValuation">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A set of credit curve values, which can include pricing inputs (which are typically credit spreads), default probabilities, and recovery rates.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="PricingStructureValuation">
            <xsd:sequence>
                <xsd:element name="inputs" type="QuotedAssetSet" minOccurs="0" />
                <xsd:element name="defaultProbabilityCurve" type="DefaultProbabilityCurve" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A curve of default probabilities.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:group ref="RecoveryRate.model" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A recovery rate value or curve.</xsd:documentation>
                    </xsd:annotation>
                </xsd:group>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
objectReference fpml:objectReference 0 (1)
valuationScenarioReference fpml:valuationScenarioReference 0 (1)
baseDate fpml:baseDate (1) (1)
spotDate fpml:spotDate 0 (1)
inputDataDate fpml:inputDataDate 0 (1)
endDate fpml:endDate 0 (1)
buildDateTime fpml:buildDateTime 0 (1)
inputs fpml:inputs 0 (1)
defaultProbabilityCurve fpml:defaultProbabilityCurve 0 (1)
recoveryRate fpml:recoveryRate (1) (1)
recoveryRateCurve fpml:recoveryRateCurve (1) (1)
<xs:group> fpml:PricingInputDates.model (1) (1)
<xs:group> fpml:RecoveryRate.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
definitionRef fpml:definitionRef (Optional)
Collapse Derivation Tree:
Collapse References:
fpml:creditCurveValuation
