Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: Increase
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:Event
Containing Schema: fpml-doc-4-4.xsd
Abstract
Documentation:
An event type that defines the content of an Increase transaction.

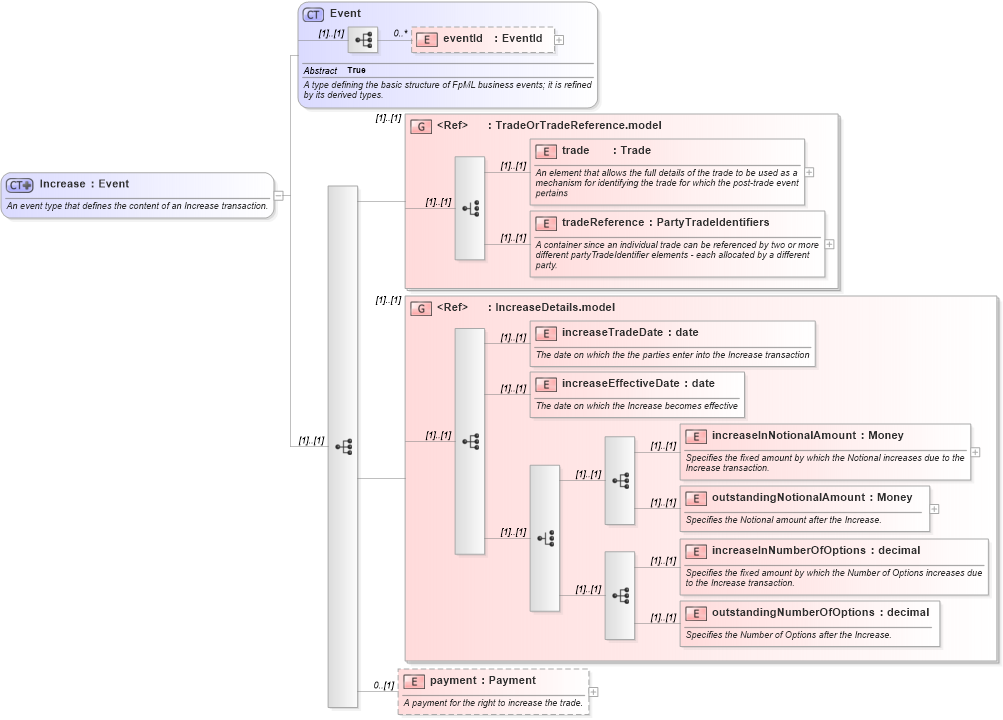

Collapse XSD Schema Diagram:
Drilldown into payment in schema fpml-doc-4-4_xsd Drilldown into outstandingNumberOfOptions in schema fpml-doc-4-4_xsd Drilldown into increaseInNumberOfOptions in schema fpml-doc-4-4_xsd Drilldown into outstandingNotionalAmount in schema fpml-doc-4-4_xsd Drilldown into increaseInNotionalAmount in schema fpml-doc-4-4_xsd Drilldown into increaseEffectiveDate in schema fpml-doc-4-4_xsd Drilldown into increaseTradeDate in schema fpml-doc-4-4_xsd Drilldown into IncreaseDetails.model in schema fpml-doc-4-4_xsd Drilldown into tradeReference in schema fpml-doc-4-4_xsd Drilldown into trade in schema fpml-doc-4-4_xsd Drilldown into TradeOrTradeReference.model in schema fpml-doc-4-4_xsd Drilldown into eventId in schema fpml-doc-4-4_xsd Drilldown into Event in schema fpml-doc-4-4_xsdXSD Diagram of Increase in schema fpml-doc-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="Increase">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">An event type that defines the content of an Increase transaction.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Event">
            <xsd:sequence>
                <xsd:group ref="TradeOrTradeReference.model" />
                <xsd:group ref="IncreaseDetails.model" />
                <xsd:element name="payment" type="Payment" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A payment for the right to increase the trade.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
eventId fpml:eventId 0 unbounded
trade fpml:trade (1) (1)
tradeReference fpml:tradeReference (1) (1)
increaseTradeDate fpml:increaseTradeDate (1) (1)
increaseEffectiveDate fpml:increaseEffectiveDate (1) (1)
increaseInNotionalAmount fpml:increaseInNotionalAmount (1) (1)
outstandingNotionalAmount fpml:outstandingNotionalAmount (1) (1)
increaseInNumberOfOptions fpml:increaseInNumberOfOptions (1) (1)
outstandingNumberOfOptions fpml:outstandingNumberOfOptions (1) (1)
payment fpml:payment 0 (1)
<xs:group> fpml:TradeOrTradeReference.model (1) (1)
<xs:group> fpml:IncreaseDetails.model (1) (1)
Collapse Derivation Tree:
Collapse References:
fpml:increase, fpml:increase, fpml:increase, fpml:increase
