Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: PricingStructurePoint
Namespace: http://www.fpml.org/2007/FpML-4-4
Containing Schema: fpml-mktenv-4-4.xsd
Abstract
Documentation:
A single valued point with a set of coordinates that define an arbitrary number of indentifying indexes (0 or more). Note that the collection of coordinates/coordinate references for a PricingStructurePoint must not define a given dimension (other than "generic") more than once. This is to avoid ambiguity.

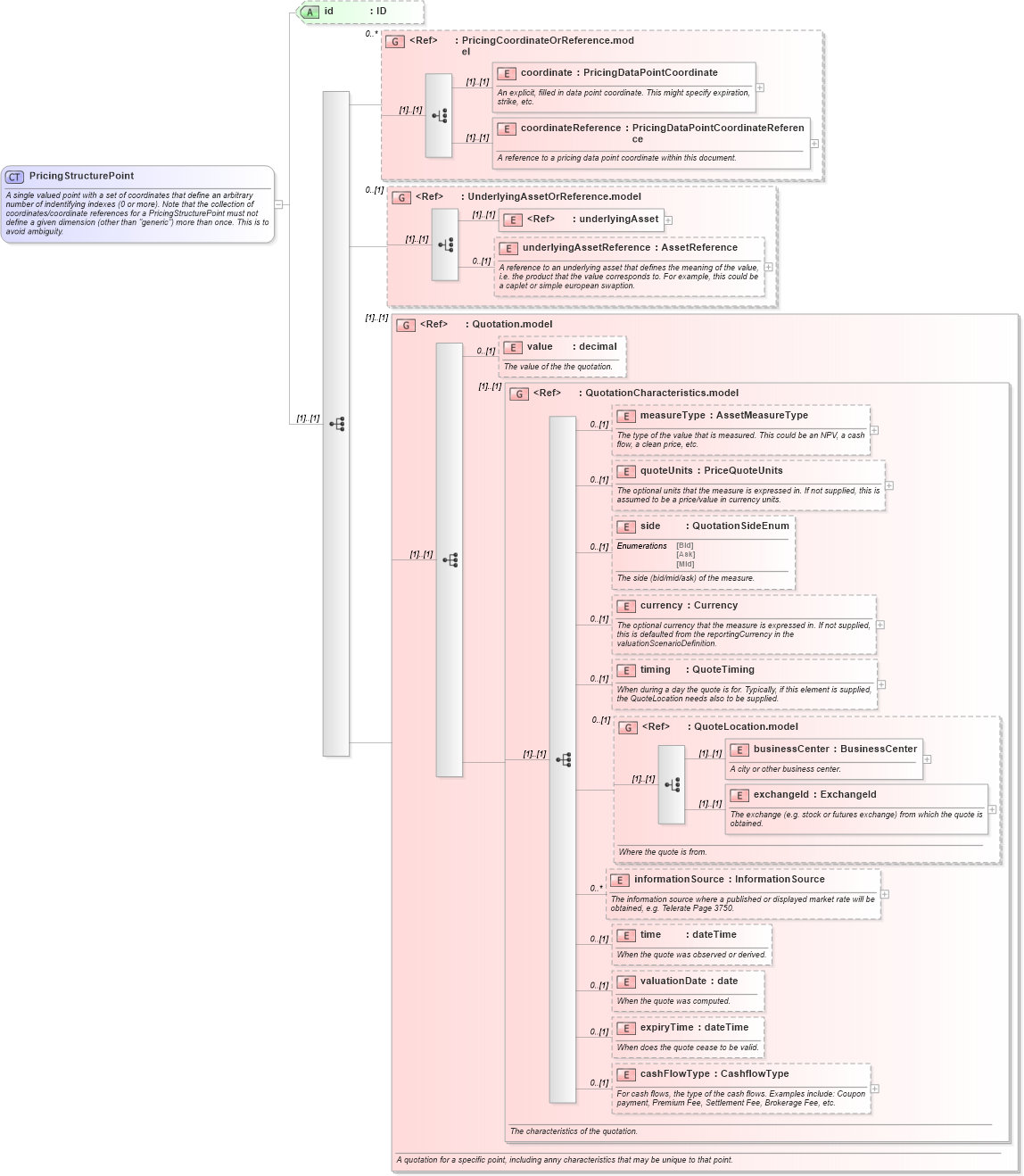

Collapse XSD Schema Diagram:
Drilldown into cashFlowType in schema fpml-asset-4-4_xsd Drilldown into expiryTime in schema fpml-asset-4-4_xsd Drilldown into valuationDate in schema fpml-asset-4-4_xsd Drilldown into time in schema fpml-asset-4-4_xsd Drilldown into informationSource in schema fpml-asset-4-4_xsd Drilldown into exchangeId in schema fpml-asset-4-4_xsd Drilldown into businessCenter in schema fpml-asset-4-4_xsd Drilldown into QuoteLocation.model in schema fpml-asset-4-4_xsd Drilldown into timing in schema fpml-asset-4-4_xsd Drilldown into currency in schema fpml-asset-4-4_xsd Drilldown into side in schema fpml-asset-4-4_xsd Drilldown into quoteUnits in schema fpml-asset-4-4_xsd Drilldown into measureType in schema fpml-asset-4-4_xsd Drilldown into QuotationCharacteristics.model in schema fpml-asset-4-4_xsd Drilldown into value in schema fpml-asset-4-4_xsd Drilldown into Quotation.model in schema fpml-asset-4-4_xsd Drilldown into underlyingAssetReference in schema fpml-mktenv-4-4_xsd Drilldown into underlyingAsset in schema fpml-asset-4-4_xsd Drilldown into UnderlyingAssetOrReference.model in schema fpml-mktenv-4-4_xsd Drilldown into coordinateReference in schema fpml-riskdef-4-4_xsd Drilldown into coordinate in schema fpml-riskdef-4-4_xsd Drilldown into PricingCoordinateOrReference.model in schema fpml-riskdef-4-4_xsd Drilldown into id in schema fpml-mktenv-4-4_xsdXSD Diagram of PricingStructurePoint in schema fpml-mktenv-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="PricingStructurePoint">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A single valued point with a set of coordinates that define an arbitrary number of indentifying indexes (0 or more). Note that the collection of coordinates/coordinate references for a PricingStructurePoint must not define a given dimension (other than "generic") more than once. This is to avoid ambiguity.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="PricingCoordinateOrReference.model" minOccurs="0" maxOccurs="unbounded" />
        <xsd:group ref="UnderlyingAssetOrReference.model" minOccurs="0" />
        <xsd:group ref="Quotation.model">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A quotation for a specific point, including anny characteristics that may be unique to that point.</xsd:documentation>
            </xsd:annotation>
        </xsd:group>
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
coordinate fpml:coordinate (1) (1)
coordinateReference fpml:coordinateReference (1) (1)
underlyingAsset fpml:underlyingAsset (1) (1)
underlyingAssetReference fpml:underlyingAssetReference 0 (1)
value fpml:value 0 (1)
measureType fpml:measureType 0 (1)
quoteUnits fpml:quoteUnits 0 (1)
side fpml:side 0 (1)
currency fpml:currency 0 (1)
timing fpml:timing 0 (1)
businessCenter fpml:businessCenter (1) (1)
exchangeId fpml:exchangeId (1) (1)
informationSource fpml:informationSource 0 unbounded
time fpml:time 0 (1)
valuationDate fpml:valuationDate 0 (1)
expiryTime fpml:expiryTime 0 (1)
cashFlowType fpml:cashFlowType 0 (1)
<xs:group> fpml:PricingCoordinateOrReference.model 0 unbounded
<xs:group> fpml:UnderlyingAssetOrReference.model 0 (1)
<xs:group> fpml:Quotation.model (1) (1)
<xs:group> fpml:QuotationCharacteristics.model (1) (1)
<xs:group> fpml:QuoteLocation.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
Collapse References:
fpml:point
